MOZA R9 V2 Bundle With KS Wheel and SRP2 Pedals
MOZA R9 V2 Bundle With KS Wheel and SRP2 Pedals
Couldn't load pickup availability
MOZA R9 V2 Bundle With KS Wheel and SRP2 Pedals
Take your sim racing to the next level with the ultimate mid-range GT racing bundle. This high-performance kit combines the raw power of the MOZA R9 V2 Direct Drive Wheelbase, the race-ready ergonomics of the 300mm MOZA KS GT Steering Wheel, and the surgical precision of the MOZA SR-P Load Cell Pedals.
Engineered from premium materials like aviation-grade aluminum and high-strength steel, this setup delivers a flawless, flex-free connection to the virtual track. Driven by MOZA’s Pit House software, you get granular control over force feedback, custom RPM telemetry, and pedal pressure curves. Perfect for competitive GT3/GT4 racing, endurance runs, and hardcore hot-lapping, this ecosystem delivers true-to-life automotive feedback straight to your desktop or cockpit.

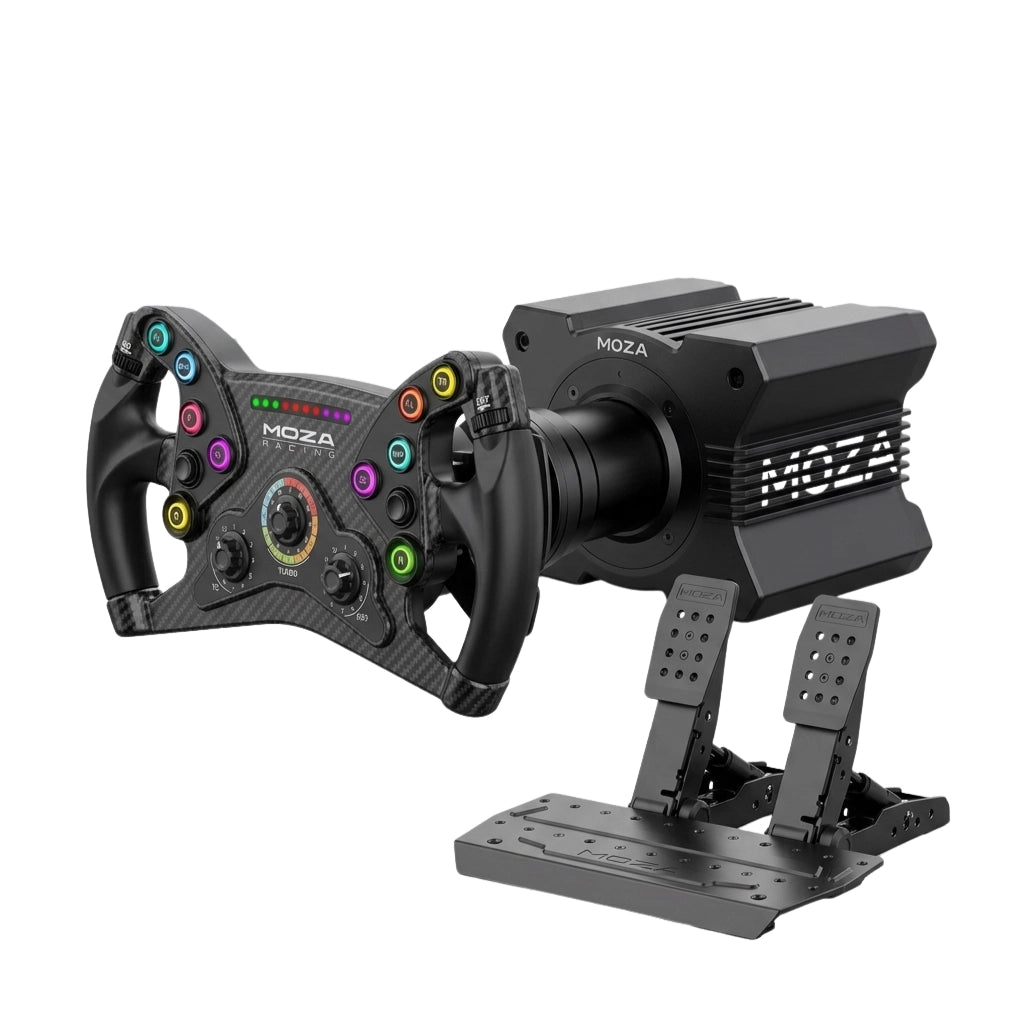

Bundle Includes:
- MOZA R9 V2 Direct Drive Wheelbase
- MOZA KS Steering Wheel
- MOZA SRP2 Racing Pedals
Features:
-
9 Nm Direct Drive Power: Powered by a 180W motor that delivers realistic tire grip, road textures, and instant force feedback directly to your hands.
- 300mm GT Style Wheel: An ergonomically designed butterfly-style GT wheel built for comfort and precision during intense racing sessions.
- 100kg Hybrid Load Cell Braking: High-precision brake pedal that senses both distance and pressure using a 15-bit angle sensor and a 100kg load cell for perfect muscle memory.
- Industrial Steel & Aluminum Build: The wheelbase features an aviation-grade aluminum housing, while the pedal assembly is engineered from high-strength structural steel.
- Magnetic & Dual-Clutch Paddles: Equipped with 2 magnetic shifters and 2 dual-clutch paddles driven by non-contact Hall sensors for crisp, wear-free shifts.
- Customizable RGB Controls: Features 10 short-travel programmable buttons and 10 high-brightness LED shift lights that can be customized across 8 different colors.
- On-the-Fly Adjustments: Easily tweak car settings using 2 thumb encoders, 3 rotary dials, and 2 depressible joysticks built onto the wheel face.
- Fully Adjustable Pedal Ergonomics: Fine-tune your driving position by customizing pedal height (up to 36mm), lateral spacing (15mm), face angles (10° to 25°), and mechanical stiffness.
- Automotive Quick Release: Swap steering wheels in seconds with a secure, zero-play mechanical quick-release system.
- Pit House Software Integration: Complete control over your hardware with real-time telemetry, customizable pedal curves, and instant firmware upgrades on PC.
PRODUCT SPECIFICATIONS
PRODUCT SPECIFICATIONS

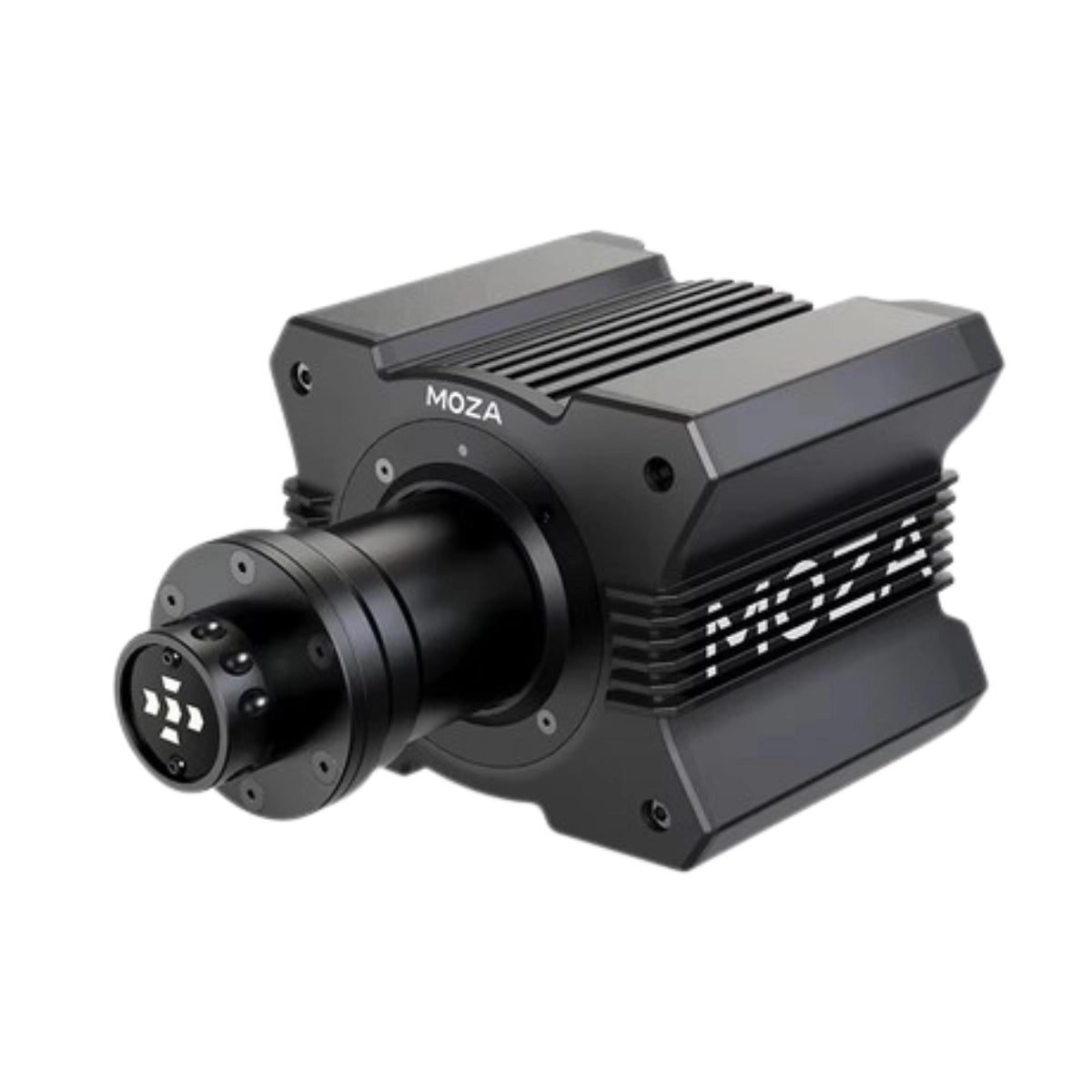

MOZA R9 V2 Direct Drive Wheelbase
- Platform: PC
- Drive Type: direct drive
- Max Wheel Rotation: limitless
- Housing Material: aviation grade aluminum alloy
- Color: Black/White
- Peak Torque: 9 Nm Peak
- Power: 180W
- Input Voltage: 110V~220V AC —> 36V DC
- USB Refresh Rate: 1000Hz
- APP Function: supported
- Quick Release: supported
- Connection Ports: Power, DC Input, E-stop, USB, Dash
- Accessories: user manual and warranty card, power supply, data cable, tool kit Mounting
- Method: 4 holes bottom mount
- Desk Clamp: optional
- Side Mount: optional
- Emergency Stop Switch: optional
- Firmware Upgrade Function: supported

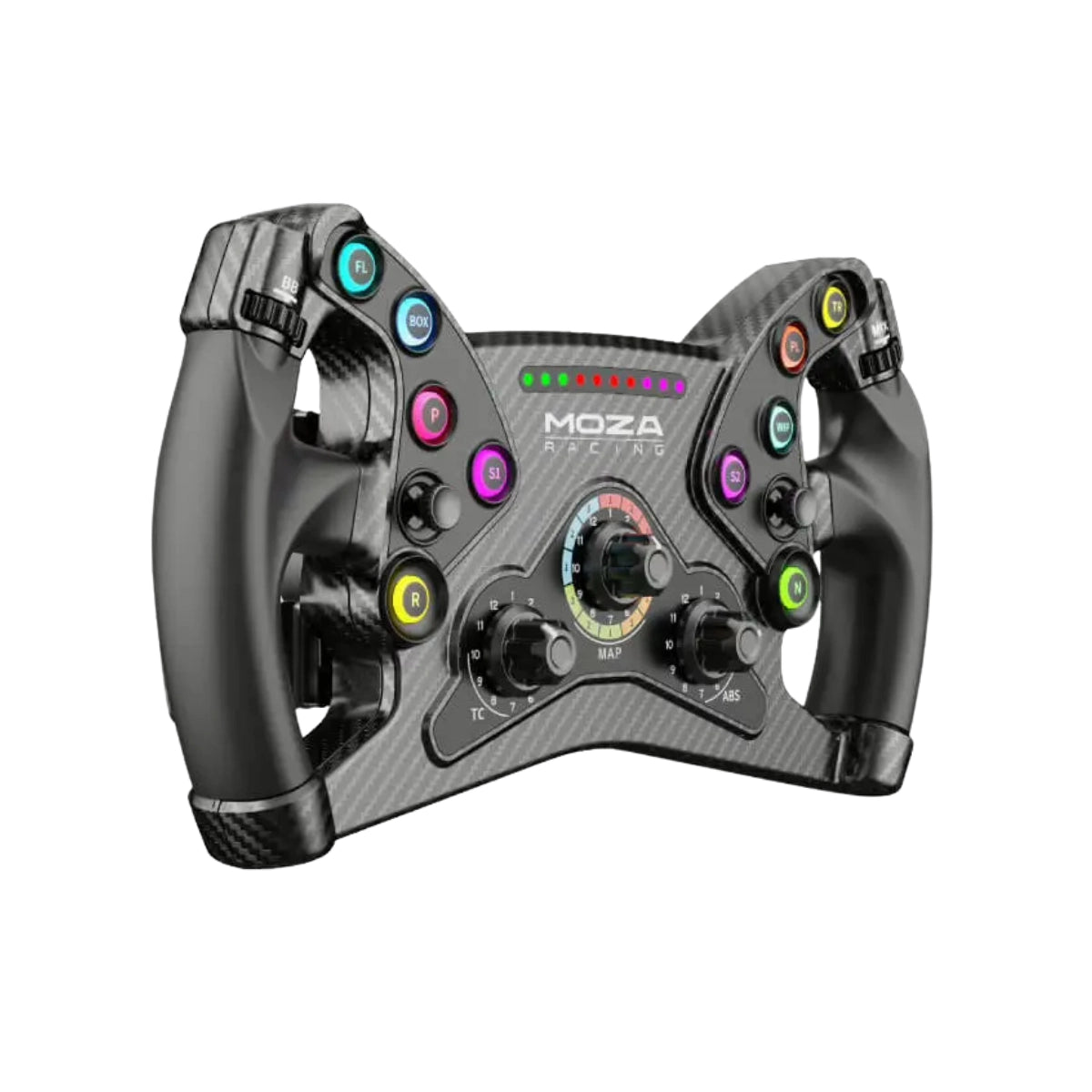

MOZA KS Steering Wheel:
- Wheel Size: 300mm standard GT wheel
- Weight: 2.6 kg
- Dimensions (L x W x H): 300 × 120 × 165 mm
- Paddle Material: Aluminum alloy
- Magnetic Shifter Paddles: 2
- Clutch Paddles: 2
- Paddle Sensor: Non-contact Hall Sensor
- Dual Clutch Paddle Modes: Combined Axis / Independent Axis / Button
- Luminous Short Travel Buttons: 10 (RGB, 0.25mm travel, 8 customizable colors)
- Joysticks (Depressible): 2
- Thumb Encoders: 2 (20-position)
- Rotary Encoders: 3 (12-position)
- High Brightness LEDs: 10
- LED Colors: 8 customizable colors
- RPM LED Adjustment: Fully adjustable via MOZA Pit House
- Intelligent Telemetry: Supported
- Communication Method: Via Industrial Conductive Slip Ring
- Quick Release: MOZA Quick Release
- Compatibility: All MOZA wheelbases and 3rd party wheelbases
- 3rd Party Base Expansion Port: Supported
Software Support: MOZA Pit House PC Suite

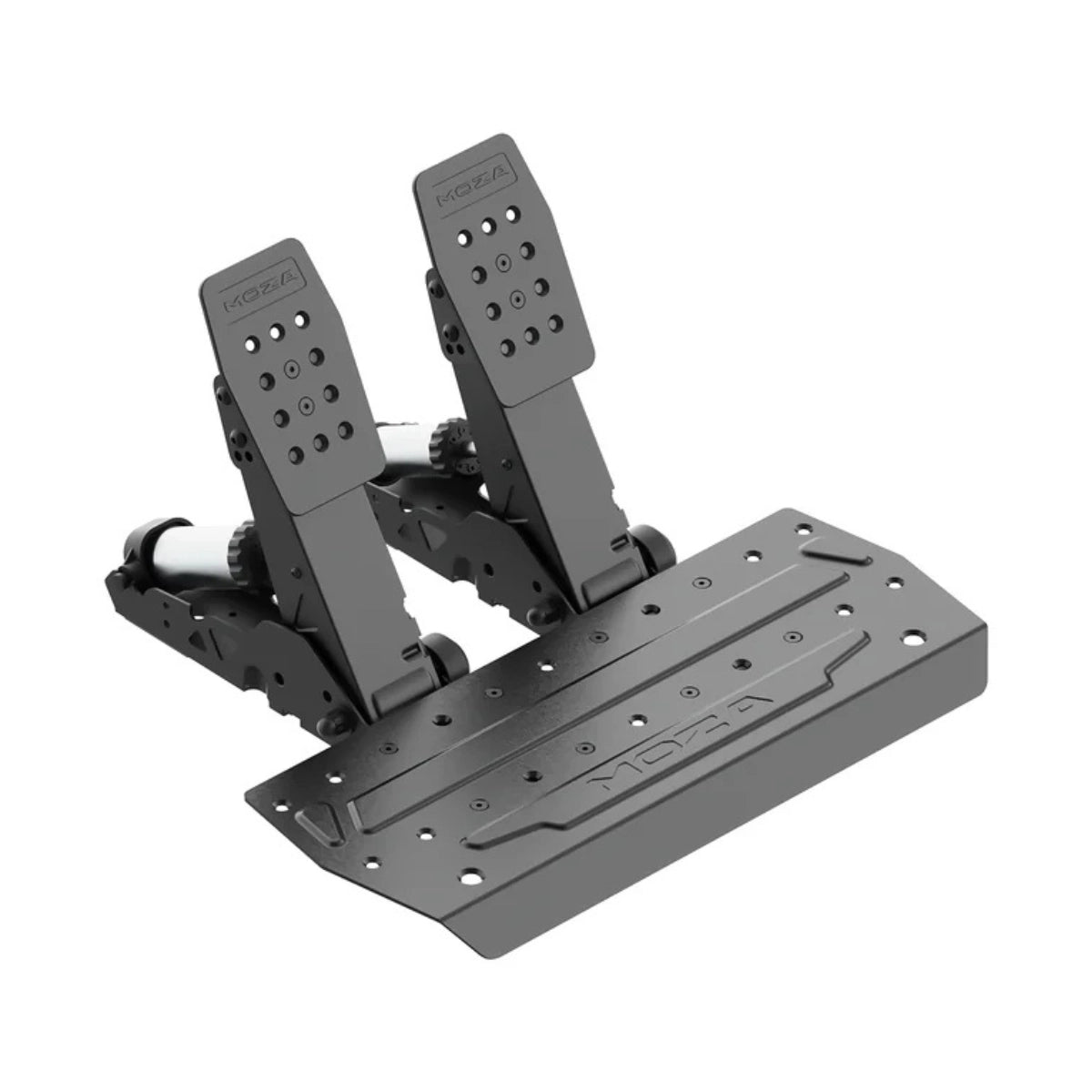

MOZA SRP2 Racing Pedals:
- Pedal Material: High-strength Steel
- Base Material: High-strength Steel
- Load Cell Range: 0–100 kg
- Brake Sensing Method: Hybrid Load Cell and Angle Sensor
- Angle Sensor Resolution: 15-bit (32,768 PPR)
- Brake Feel Adjustability: Supported by swapping the included 2 elastomer sets or using the optional Kit
- Throttle Adjustability: 2-step preload adjustment
- Clutch Adjustability: 2-step preload adjustment
- Pedal Angle Adjustment Range: 10°/25°
- Pedal Left/Right Adjustment Range: 15 mm
- Pedal Height Adjustment Range: 36 mm
- Pedal Curve Adjustment: Supported
- Real-time Pedal Output Display: Supported
Brake Pressure Engagement Point Adjustment: Supported
