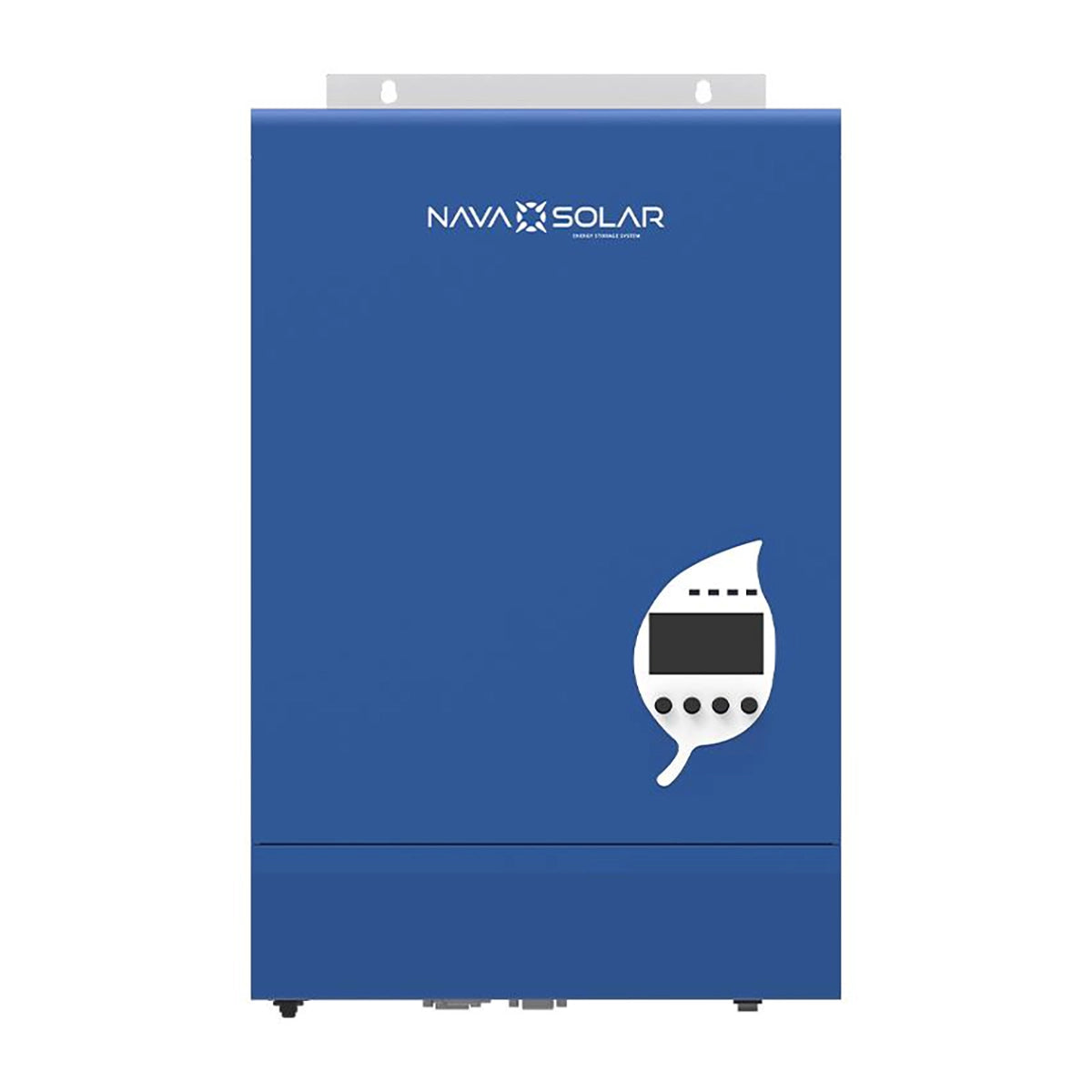

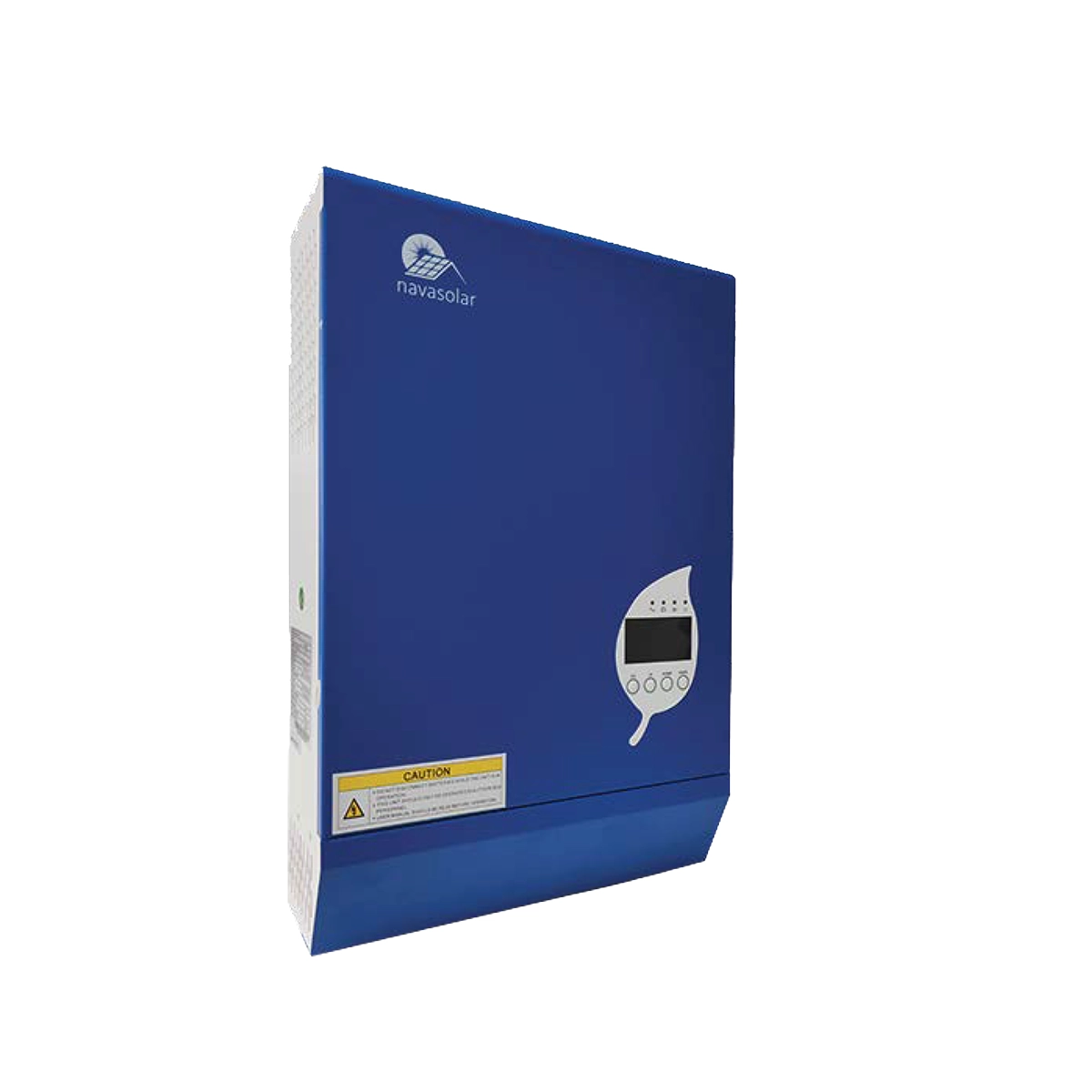

Navasolar X3024 3KW 24V Offgrid Solar Inverter With 60A MPPT

Navasolar X3024 3KW 24V Offgrid Solar Inverter With 60A MPPT - NV-X3024

FEATURES:

• Pure sine wave solar inverter
• Output power factor up to 1.0
• Compatible to AC mains or generator inputs
• Considerable PV input types
• Build-in smart solar charger (PWM/MPPT)
• Battery independent design(5kW)
• Auto restart while AC is recovering
• Configurable AC/Solar input priority via LCD setting
• Selectable input voltage range for home appliances and personal computer loads

SPECIFICATIONS:

• Nominal Battery System Voltage: 24VDC
• Parallel Capability: No
• Operation Without Battery: No


INVERTER OUTPUT

• Rated Power: 3000W
• Surge Power: 6000W
• Wave Form: Pure Sine Wave
• AC Voltage Regulation(Batt.Mode): (220VAC~240VAC) ±5%
• lnverter Efficiency(Peak): 93.5%
• Transfer Time: 10ms(typical)


AC INPUT

• Voltage: 208/220/230/240VAC
• Selectable Voltage Range: 170~280Vac(for personal Computer)

• Frequency Range: 50Hz/60Hz(Auto sensing)


SOLAR CHARGER AND AC CHARGER

• Maximum PV Array Open Circuit Voltage    145VDC
• PV Array Voltage Range    MPPT 30~115VDC
• Maximum PV lnput Power    1500W
• Maximum Solar Charge Current    60A
• Maximum Efficiency    98%
• Maximum AC Charge Current    60A
• Maximum Charge Current    120A
