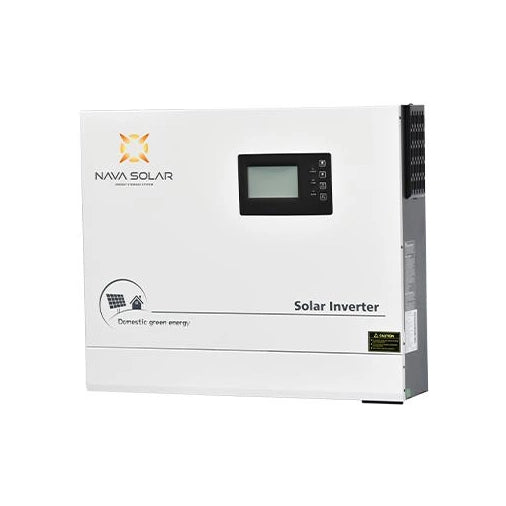

Navasolar PH1800 10KW 48V Hybrid Solar Inverter 80A MPPT

Navasolar PH1800 10KW 48V Hybrid Solar Inverter 80A MPPT

The Pure Sine Wave Inverter is a versatile power solution designed for home appliances and personal computers. It features an LCD interface for configuring input voltage, charging current, and AC/solar priority. Compatible with mains and generator power, it ensures seamless operation with automatic restart and multiple safety protections. The smart battery charger optimizes battery performance, while the cold start function allows operation without an AC supply.

Product Features:

• Pure sine wave output for stable and efficient power
• LCD settings for customizable input voltage, charging current, and charger priority
• Compatible with mains voltage and generator power
• Automatic restart when AC power recovers
• Overload, over-temperature, and short circuit protection
• Smart battery charger for optimal battery performance
• Cold start function for AC-independent operation


Specifications

Inverter Output

• Rated Power: 10,000W
• Surge Power: 20,000W
• Waveform: Pure Sine Wave
• AC Voltage Regulation (Battery Mode): (230VAC) ±5%
• Inverter Efficiency (Peak): 93%
• Transfer Time: 10ms (typical)
• Voltage: 230VAC ±5%

AC Input

• Selectable Voltage Range:
  • 170~280VAC (for Personal Computer)
  • 90~280VAC (for Home Appliance)
  • 184~253VAC (VED4105)
• Frequency Range: 50Hz/60Hz (Auto sensing)

Battery

• Normal Voltage: 48VDC
• Floating Charge Voltage: 54.8VDC
• Overcharge Protection: 60VDC

Solar Charger & AC Charger

• Maximum PV Array Open Circuit Voltage: 145VDC
• PV Array Voltage Range: MPPT 60~130VDC
• Standby Power Consumption: 2W
• Maximum PV Input Power: 4000W * 2
• Maximum Solar Charge Current: 80A
• Maximum Efficiency: 98%
• Maximum AC Charge Current: 120A
• Maximum Charge Current: 280A

Communication

• USB/RS232/RS485 (optional)

Mechanical Specifications

• Machine Dimensions (HWD): 355x272x100 mm
• Package Dimensions (HWD): 390x425x215 mm
• Net Weight: 7.4 kg
• Gross Weight: 9.5 kg

Other

• Humidity: 5% to 95% Relative Humidity (Non-condensing)
• Operating Temperature: 0°C~50°C
• Storage Temperature: -15°C~60°C
