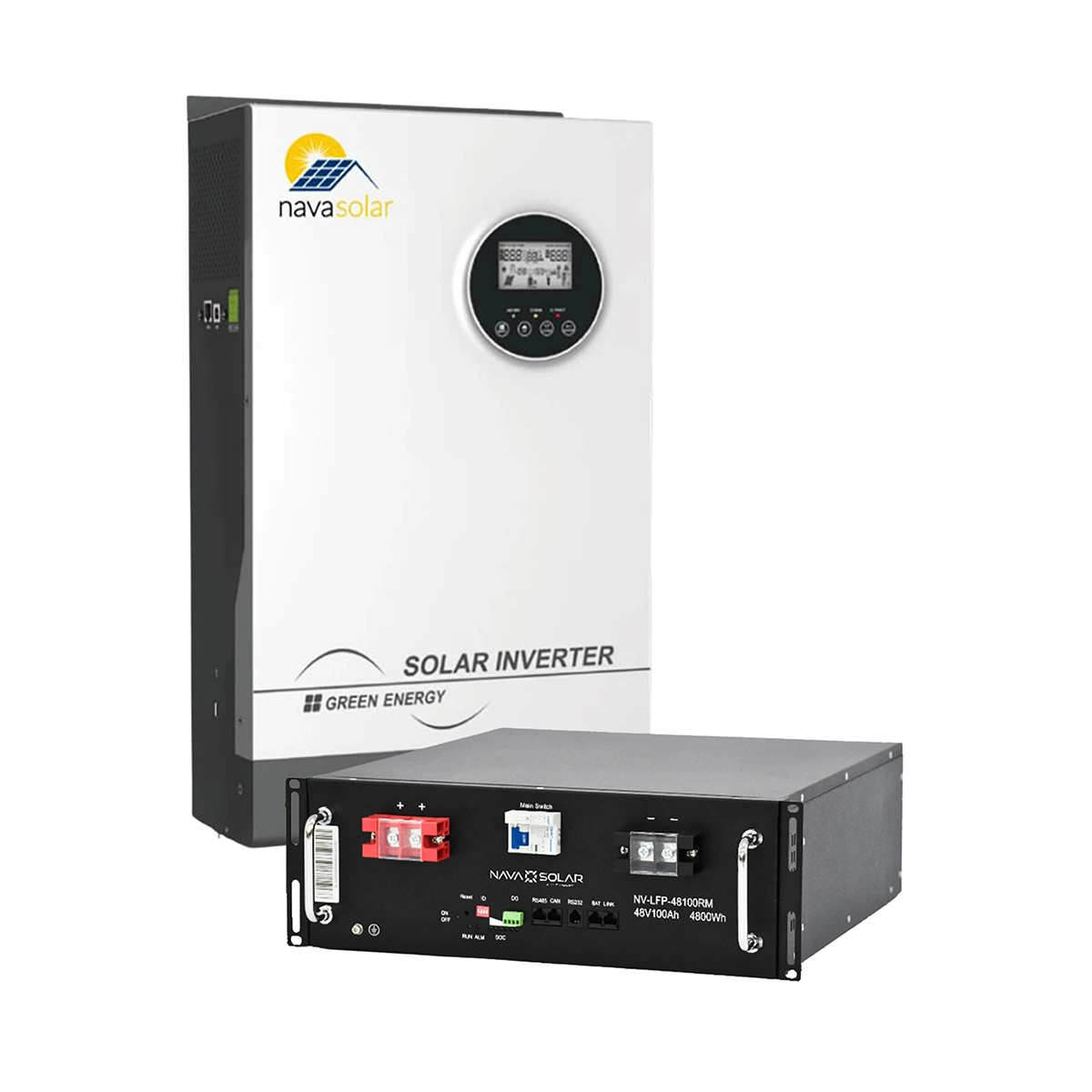

Navasolar PV1800 Pro 5.2KW Inverter with 48V 100Ah Lithium Battery Bundle

Navasolar PV1800 Pro 5.2KW Inverter with 48V 100Ah Lithium Battery Bundle

Power your space with confidence using this off-grid solar solution from Navasolar. This bundle combines the intelligent PV1800 Pro 5.2kW Pure Sine Wave Inverter with the Navasolar 48V 100Ah LiFePO₄ Battery, delivering high-performance energy storage and reliable power conversion in one seamless package. It is ideal for residential, commercial, or light industrial use.

Bundle includes:

• Navasolar PV1800 Pro 5.2KW Inverter
• 48V 100Ah Lithium Battery

Bundle Features:

• Complete Off-Grid System – Run your essential loads using solar power, AC, and battery backup.
• High Efficiency Power Conversion – Pure sine wave inverter with 93% peak efficiency.
• High-Capacity Lithium Battery – 4.46 kWh usable energy, over 4,000 cycle life.
• Smart Monitoring – LCD with USB, RS485, and optional WiFi monitoring.
• Built-in MPPT Controller – 80A max solar charge current, 98% efficiency.
• Expandable Storage – Add up to 16 batteries in parallel as your needs grow.
• Safe and Durable – Advanced BMS with protection features and long lifespan.

Inverter Specifications:

• Model: Navasolar PV1800 Pro
• Rated Power: 5200W (5.2kW)
• Surge Power: 10400W
• Output Type: Pure Sine Wave
• AC Input: 230VAC ±5%, 50Hz/60Hz Auto Sensing
• Battery System Voltage: 48VDC
• Max Solar Charge Current: 80A
• Max PV Input Power: 5000W
• MPPT Range: 150–430VDC (Max PV: 450VDC)
• Parallel Capability: Up to 3 units
• Monitoring: USB, RS232/RS485 (WiFi dongle sold separately)
• Dimensions: 528 x 295 x 121 mm
• Weight: 9.5 kg
• Operating Temp: 0°C to 50°C

Battery Specifications:

• Model: Navasolar NV-LFP-48100RM
• Battery Type: Lithium Iron Phosphate (LiFePO₄)
• Nominal Voltage: 48V
• Usable Capacity: 4.46 kWh (80% DOD)
• Cycle Life: >4000 cycles
• Rated Discharge Current: 100A
• Max Discharging Power: 4.2kW
• Rated Charge Current: 30A (Max: 100A)
• Max Charging Power: 5.35kW
• Operating Voltage: 42V–53.5V
• Communication Ports: CAN / RS485
• Parallel Support: Up to 16 units
• Dimensions: 442 x 470 x 154 mm
• Weight: 45 kg
• Warranty: 5 Years
