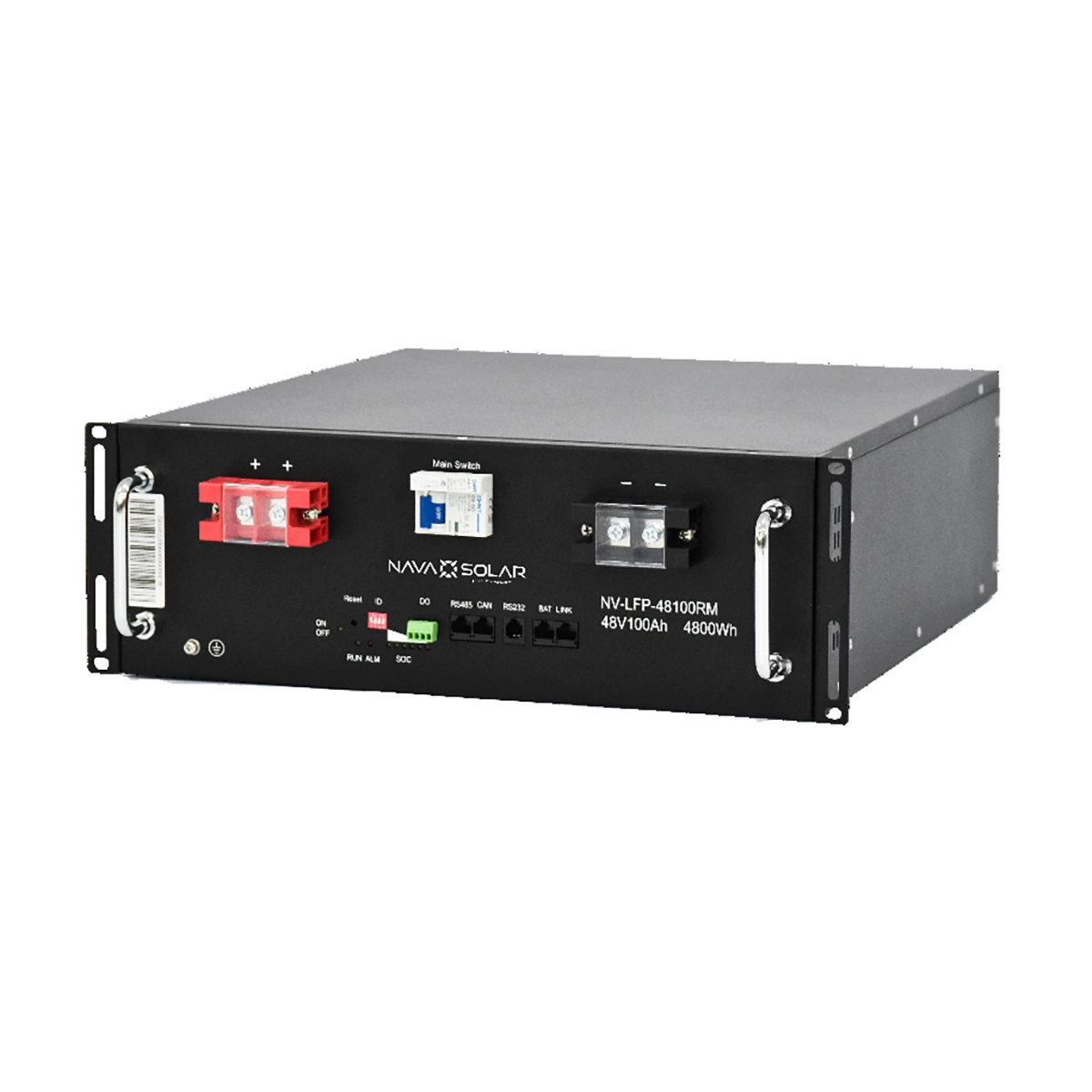

Navasolar 48V 100AH LiFePO4 RM Battery Pack With BMS

NAVASOLAR 48V 100AH LIFEPO4 RM BATTERY WITH BMS

The NavaSolar 48V 100Ah Lithium Iron Phosphate (LiFePO4) Battery is a high-performance energy storage solution designed for reliability, safety, and long service life. With a usable capacity of 4.46kWh and a cycle life exceeding 4,000 cycles, it is an ideal choice for residential, commercial, and industrial energy storage systems.

Product Features:

• High Efficiency & Reliability – 48V 100Ah LiFePO4 battery with an 80% Depth of Discharge (DOD)
• Long Life Cycle – Over 4,000 charge-discharge cycles for extended durability
• High Power Output – Supports up to 100A discharge current and a max discharging power of 4.2kW
• Scalable Energy Storage – Supports parallel connection of up to 16 packs for increased capacity
• Smart Communication – Equipped with CAN & RS485 communication ports for system integration
• Fast & Flexible Charging – Rated 30A charge current (up to 100A max) with a max charging power of 5.35kW
• Comprehensive Warranty – Backed by a 5-year warranty for peace of mind

Specifications

Battery Data (NV-LFP-48100RM)

• Nominal Voltage: 48V
• Normal Capacity: 4.8kWh
• Usable Capacity: 4.46kWh
• Operating Voltage: 42 - 53.5V
• Rated Charging Current: 30A (100A Max)
• Rated Discharging Current: 100A
• Max Discharging Power: 4.2kW
• Max Charging Power: 5.35kW

General Data

• Dimension (W/D/H): 442/470/154mm
• Weight: 45Kg
• IP Protection: NA
• Working Temperature: 0°C ~ +55°C
• Storage Temperature: -20°C ~ +55°C

Features

• DOD: 80%
• Cycle Life: >4000 times
• Parallel Connection: Max. 16 packs
• Communication Port: CAN/RS485
• Warranty: 5 Years
