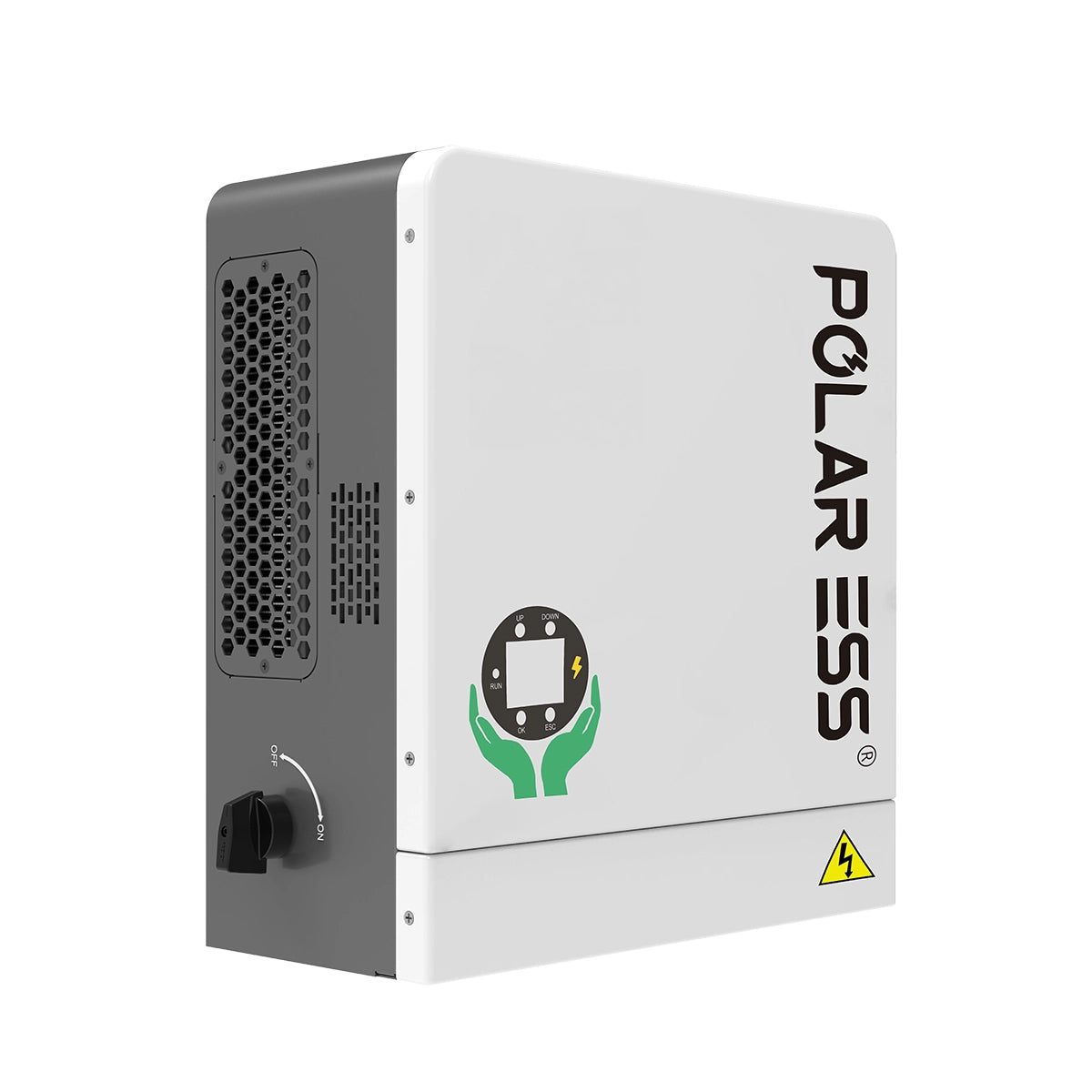

Polar ESS 6kW Hybrid Inverter

Polar ESS 6kW Hybrid Inverter - ALPS HY6.0-GL

The Polar ESS 6kW hybrid inverter offers an economical and premium solution that combines grid-tied and off-grid systems. This allows for optimized energy usage and cost savings, while maintaining a reliable power supply.

Product Features:

• Full power backup

• 2 MPPTs, suitable for roofs facing different directions
• LCD display, convenient for reading operation and setting parameters
• Wide range of PV voltage, supports 90V-550V, MPPT current 16A
• High cost-effectiveness
• Supports off-grid and parallel operation (optional)

Specifications:

• Input Data (PV):
  • Max. DC Input Power (W): 9000W

  • Start-up voltage: 90V
  • Cut-off Voltage: 70V
  • MPPT range: 90V-500V
  • Nominal voltage: 360V
  • Max. short current: 23A/23A
  • Max. input current: 16A/16A
  • MPPT tracker/No. of Strings per MPP Tracker: 2/1
• Battery
  • Battery Type: Li-ion/ Lead-Acid
  • Battery Voltage Range: 42-60V
  • Nominal Voltage: 48V
  • Charge/ Discharge Current: 125A/125A
  • Max. Battery Charge/ Discharge Power(W): 6000W/6000W
  • Communication Interface: RS485/ CAN
• Output Data(AC)
  • Nominal AC output Power: 6000W
  • Max. Apparent Power Output to Utility Grid (VA): 6000VA
  • Max. Output Current: 26A
  • Nominal Voltage/Range: 230VAC; 184--260VAC
  • Frequency Range: 50 ±5Hz
  • Power Factor(@full load): >0.99
• Backup
  • Nominal EPS Output Power: 6000W
  • EPS Peak Power(10s): 9000W*2
  • Nominal Voltage: 230VAC
  • Max. Output Current: 26A
  • Nominal Frequency: 50 Hz
  • Pass-Through Current: 43A
  • Generator Control: 2*DI/DO
• General:
  • Protection Class: IP20
  • Noise Emission (typical): <45dB
  • Cooling: Forced air cooling
  • Installation: Wall hanging
  • Display: LCD/LED
  • Interface: RS485 / Wi-Fi (USB)- optional / LAN 2*Programmable DI/DO

Important

Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and installation requirements.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Crystal Communications and its Supplier will not be held liable for any product malfunctions as a result of incorrectly installed systems.
