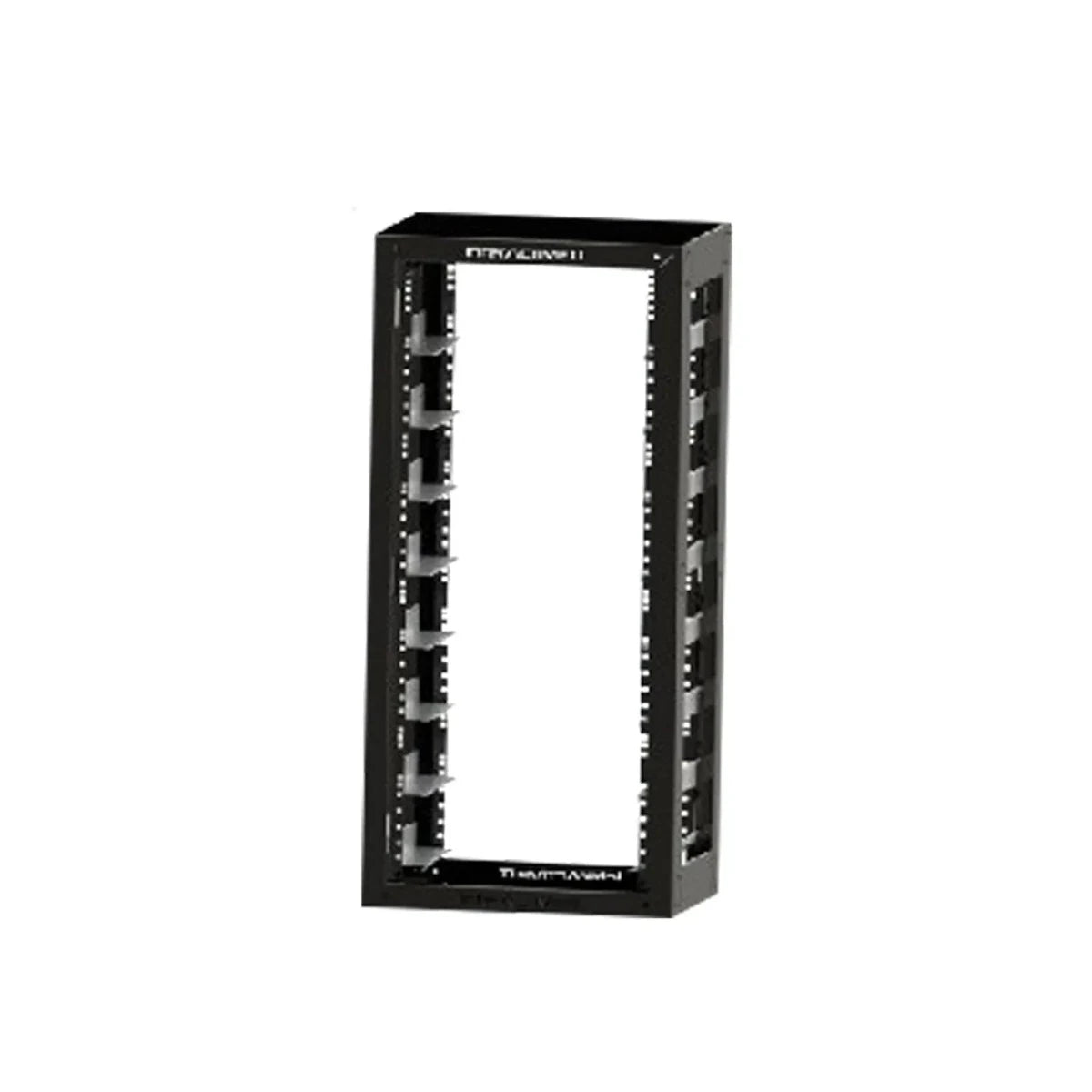

Battery Rack - PowerTower

Battery Rack for 8x US3000C or 6x UP5000/Revov R100 or 4x eTower/BL3.6 Batteries

A Premium storage solution for Lithium-ion batteries that offers an exclusive aesthetic installation standard. Heavy Duty construction with Easy Assembly and a Modular design engineered to be the perfect fit every time. This newly upgraded cabinet is specially redesigned to support the Pylontech Power Cube batteries. The Batteries slide onto and are supported by the latest Cliplock™ steel rails. The Cliplock™ rails are correctly spaced to shorten installation time and improve installation neatness and offer Dual compatibility with High Voltage and Low voltage Pylon Batteries all in the same cabinet.

Important

• Optional: Lockable with the optional Door-Kit and Side-Panels.
• PowerCube batteries purchased with this cabinet are required to have the PT3-8DK Door kit for safety.
• Dimensions assembled - W 600mm X D 510mm X H 1300mm.
• Weight:  41kg

Product Features:

• Heavy duty construction.
• Premium Finish & Design.
• Ventilated
• Top, bottom, Front Rear & Side cable access
• Modular & adjustable Cliplock™ rails
• Battery module reinforced supports
• Easy to assemble.

The PT3-8-HV is compatible with the following batteries:

• 8x  PylonTech US3000C Lithium-Ion batteries or
• 6x  Pylon UP5000 4.8kWh Li-Ion Solar Battery 48V or
• 6x  REVOV Lithium R100 5.1kWh 51.2 Battery 1C Version or
• 4x  Kodak 3.68kWh 48V Battery Module or
• 4x  Freedom Won eTower LiFePO4 Battery 5kW 52V
