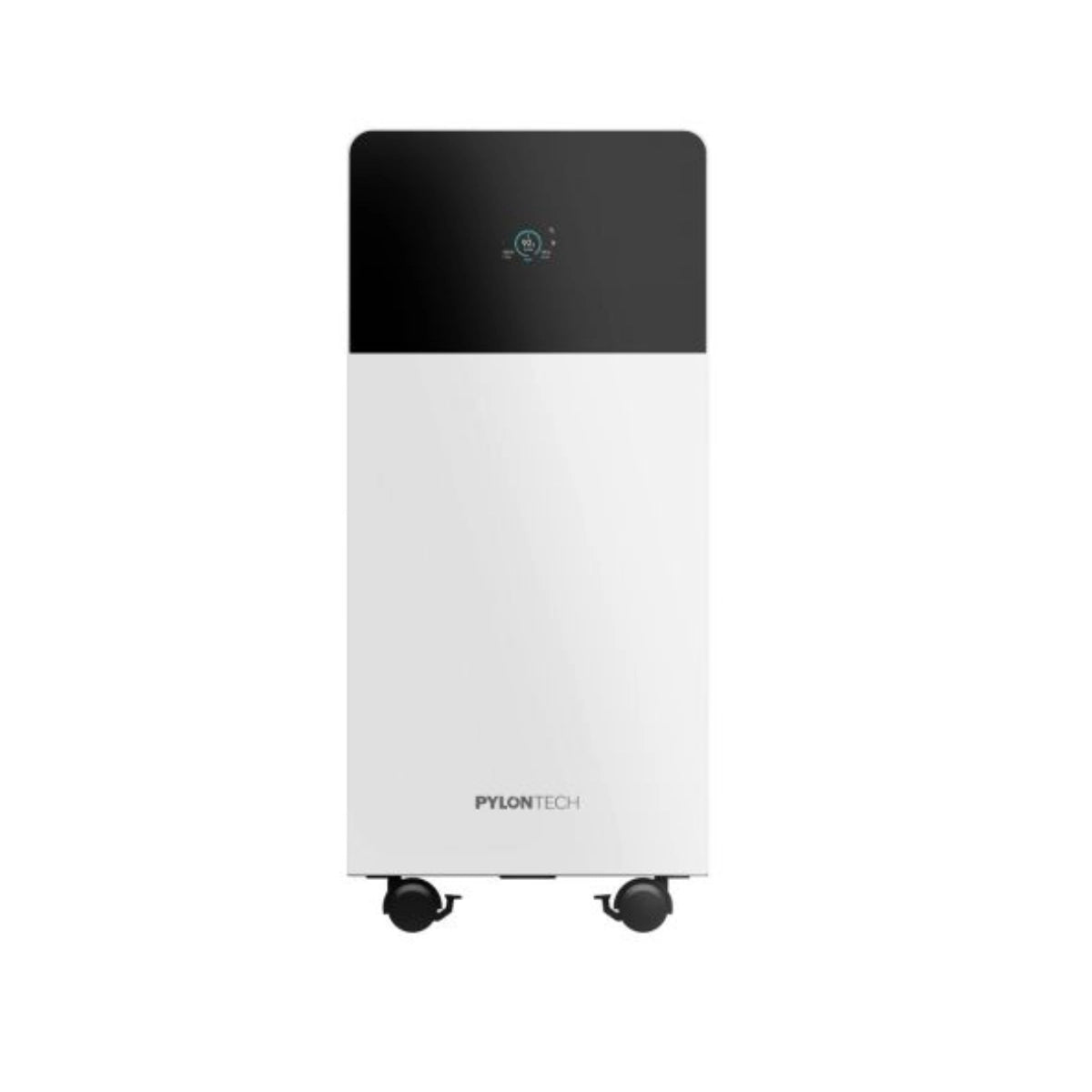

Pylon Fidus Plus16kWh 51.2V Li-ion IP65 wall mount battery (excl. accessories)

Pylon Fidus Plus16kWh 51.2V Li-ion IP65 wall mount battery (excl. accessories)

R 32,885.00
R 32,885.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Pylon Fidus Plus16kWh 51.2V Li-ion IP65 wall mount battery (excl. accessories)

Elevate your energy storage capabilities with the Pylon Fidus Plus 16kWh, a high-performance, robust lithium-ion battery engineered for demanding residential and commercial environments. Built with a focus on longevity and versatility, this unit provides seamless energy management, allowing you to maximize self-consumption and ensure reliable backup power during outages.

Product Features

  • Superior safety and reliability.
  • Designed for extreme conditions.
  • Flexible installation – wall mount or floor standing deployments.
  • Smart monitoring – Bluetooth and WIFI.
  • Integrated display screen.
  • 100% DoD.
  • 0.67C rated allowing charge/discharge power of up to 10.72kW.
  • Parallel capability of up to 20 units.
  • 8000 cycles.
  • 10-year standard warranty.

PRODUCT SPECIFICATIONS

- Nominal Voltage: 51.2 Vdc
- Nominal Capacity: 16,076 Wh
- Usable Capacity: 16,076 Wh
- Depth of Discharge (DoD): 100%
- Dimensions (W×D×H): 435 × 240 × 900 mm
- Weight: 130 kg
- Discharge Voltage: 40 ~ 56.8 Vdc
- Charge Voltage: 56 ~ 56.8 Vdc
- Max Continuous Charge/Discharge: 200 A / 200 A
- Peak Charge/Discharge: 300 A (at 15s)
- Communication: CAN, RS485
- Parallel Configuration: Up to 20 units per group; 6 strings max
- Interaction: Display screen, Bluetooth, and Wi-Fi
- Cooling Type: Natural
- Protective Class: I
- IP Rating: IP65
- Anti-corrosion: C5-M
- Operating Humidity: 5 ~ 95% (No Condensation)
- Operating Altitude: ≤4,000 m
- Certifications: IEC62619, IEC63056, UN38.3, EMC/CE
- Design Life: 15 years (at 25°C)
- Cycle Life: 8,000 cycles (at 25°C)
- Fire Extinguishing: Aerosol (Optional)
- Working Temperature (Charging): 0 ~ 55°C
- Working Temperature (Discharging): -20 ~ 60°C
