Pylontech

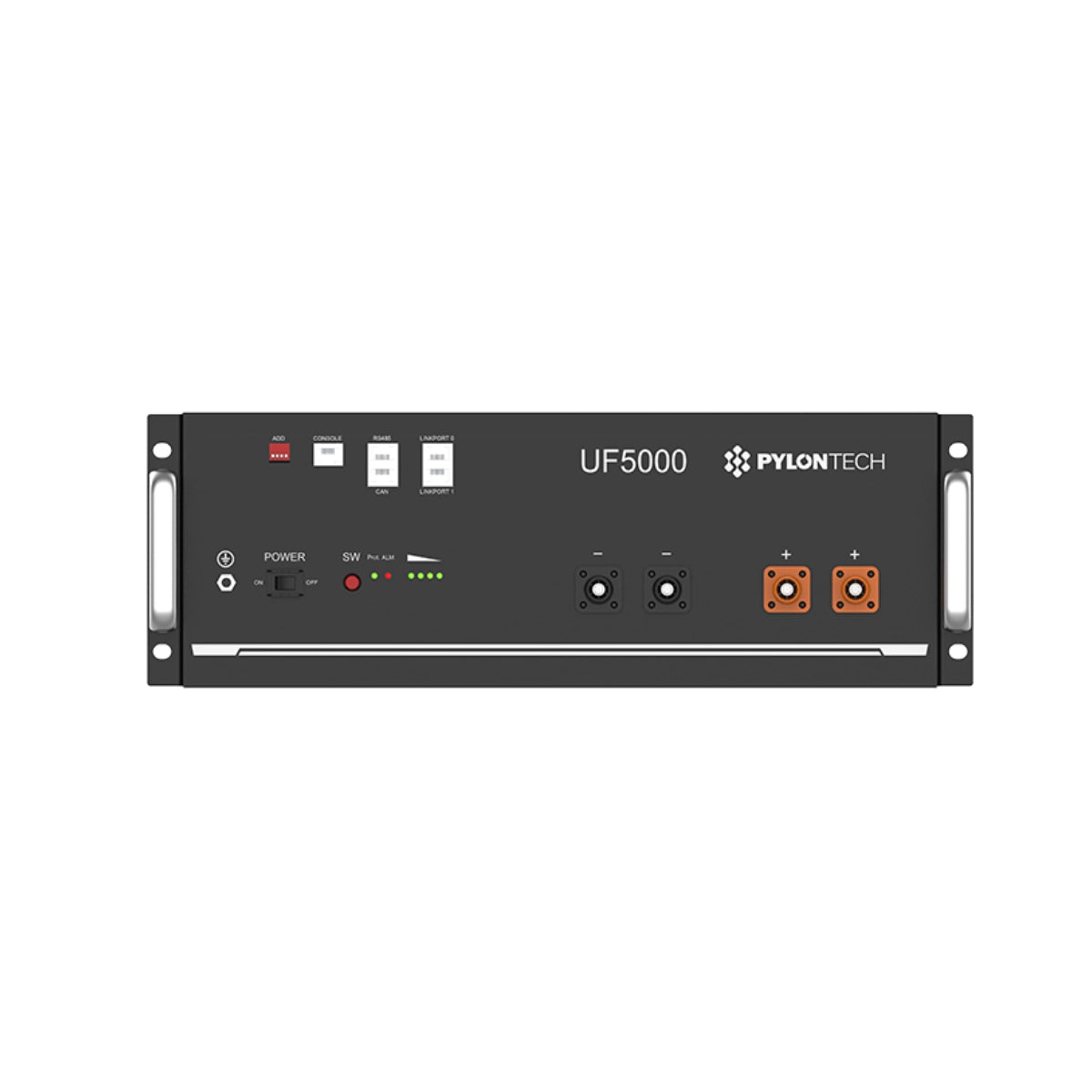

Pylon UF5000 5.12kWh 51.2V Li-Ion Solar Battery

Pylon UF5000 5.12kWh 51.2V Li-Ion Solar Battery

R 16,103.00
R 16,103.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Pylon UF5000 5.12kWh 51.2V Li-Ion Solar Battery

The Pylontech UF5000 is a high-performance residential energy storage system designed for efficiency, safety, and long-term reliability. With a usable capacity of 4.864kWh and a 15-year design life, this battery module is ideal for both grid-tied and off-grid solar systems. Engineered for simple installation and seamless integration, it offers homeowners a cost-effective and reliable solution for backup power and energy independence.

Product Features:

  • Ideal for backup power and off-grid systems
  • Simple and fast installation – perfect for DIY setups
  • Cost-effective with low maintenance requirements
  • Safe and reliable lithium iron phosphate (LiFePO₄) technology
  • Long lifespan with over 6,000 cycles
  • 15-year design life ensures long-term performance
  • Compact and lightweight for easy handling
  • Compatible with major inverter brands via RS485/CAN ports
  • High depth of discharge (95%) for maximum energy use
  • Stable operation under a wide temperature range (-10°C to 55°C)

PRODUCT SPECIFICATIONS

- Nominal Voltage (VDC): 51.2
- Battery Module Capacity (kWh): 5.12
- Usable Capacity (kWh): 4.864
- Dimension (W×D×H mm): 442 × 452.6 × 161
- Weight (kg): 42
- Depth of Discharge: 95%
- Charge/Discharge Current (Normal): 100A
- Charge/Discharge Current (Max): 100A
- Peak Discharge Current: 121–200A @15sec
- Communication Port: RS485 / CAN
- IP Rating: IP20
- Single String Quantity: 20 pcs
- Working Temperature (°C) Charge: -10 ~ 55
- Working Temperature (°C) Discharge: -10 ~ 55
- Storage Temperature (°C): -20 ~ 60
- Humidity (RH): 5%–95% (No condensation)
- Short Current/Duration Time (A): <2000 / 1ms
- Altitude (m): ≤4000
- Design Life (@25°C): 15 years
- Cycle Life (@25°C): >6,000
- Certification: IEC62619 / UN38.3 / RoHS / REACH / WEEE / MSDS
