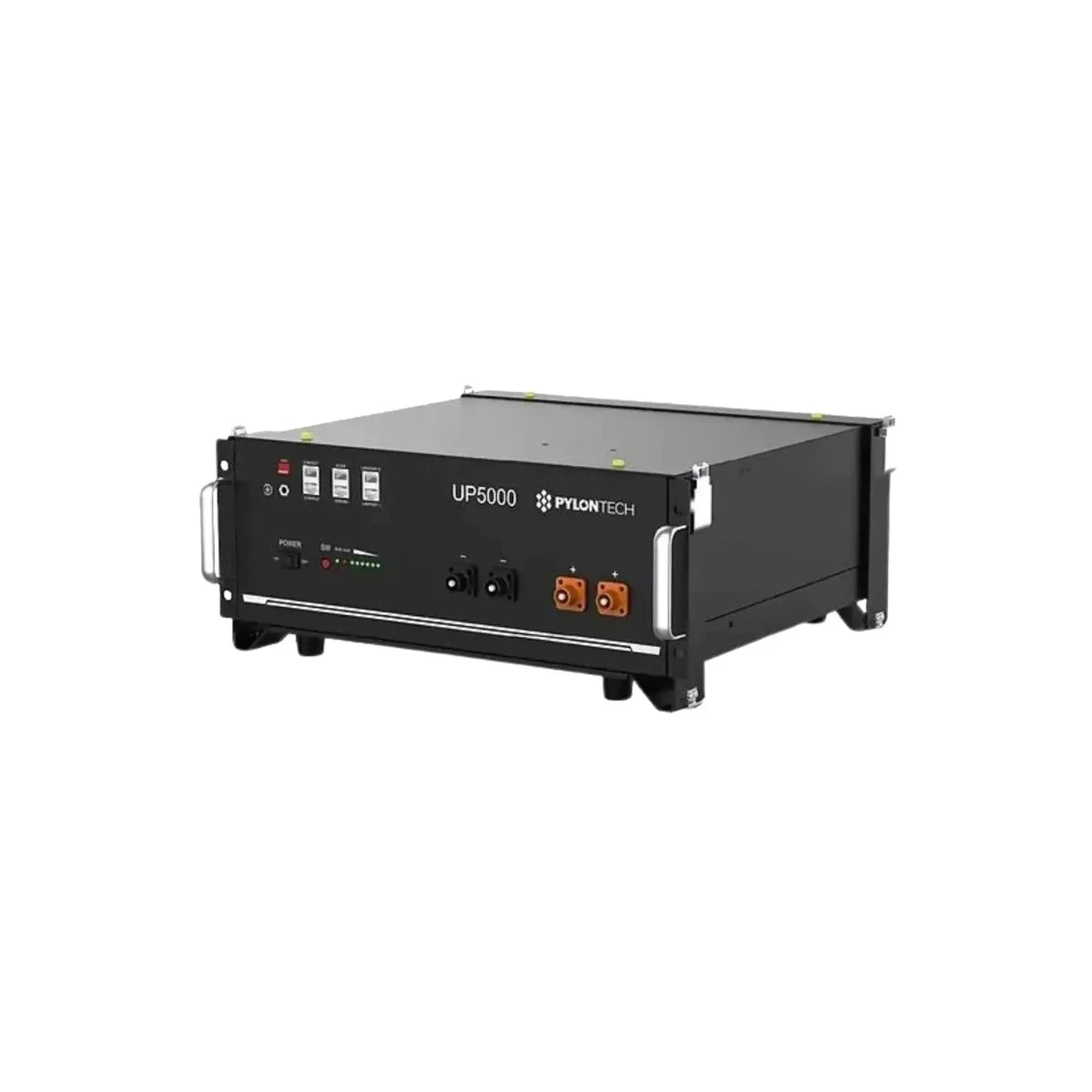

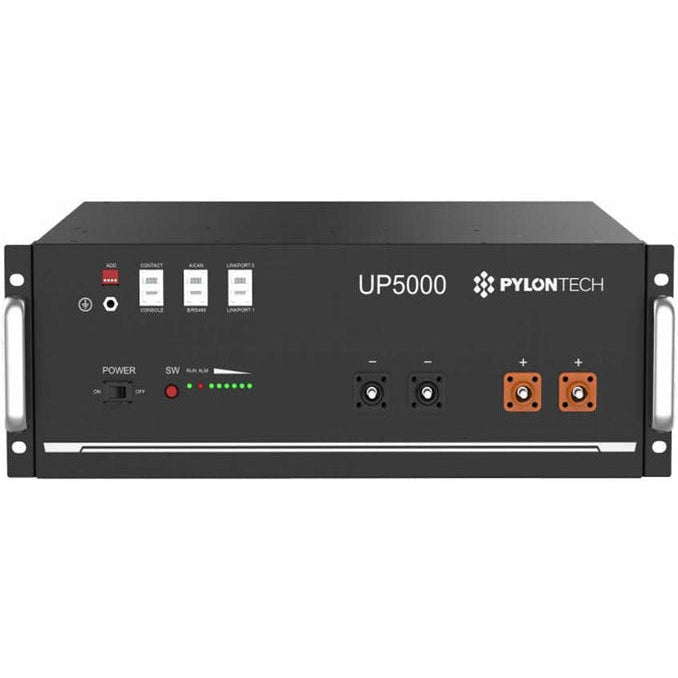

Pylon UP5000 4.8kWh Li-Ion Solar Battery

Pylontech UP5000 4.8kW Li-Ion Solar Battery

The UP5000 is a 48V, 4.8kWh lithium-ion battery with incredible features to provide a competitive edge in the market.

Product Features:

• Modular design for ease of expansion
• Higher usable capacity resulting in fewer battery modules installed
• Usable capacity 4 560Wh
• Parallel Capability of up to 16 units
• Allows for a large installation of up to 72.96kWh with no LV Hub
• Intelligent BMS protecting battery cells
• 95% DoD with more usable capacity
• RS485 and CAN compatible

 Specification:

• Nominal Voltage（V） 48
• Nominal Capacity（Wh） 4,800
• Usable Capacity（Wh） 4,560
• Dimension（mm ） 442*420*165
• Weight（Kg） 41
• Discharge Voltage（Vdc） 44.5
• Charge Voltage（Vdc） 52.5 ~ 53.5
• Charge / Discharge Current （Amps）50（Continuous） 74-89(60sec） 90-200A（Peak@15sec）
• Communication Port RS485,CAN
• Single string quantity(pcs) 16
• Working Temperature/℃ - 0~50 Charge - -10~50 Discharge
• Shelf Temperature/℃ - -20~60
• IP rating - IP20
• Humidity (RH) - 5~95%
• Certification - IEC62619/CE/ UN38.3
• Design life 10+ Years (25℃/77℉)
• Cycle Life >4,500 (25℃)
