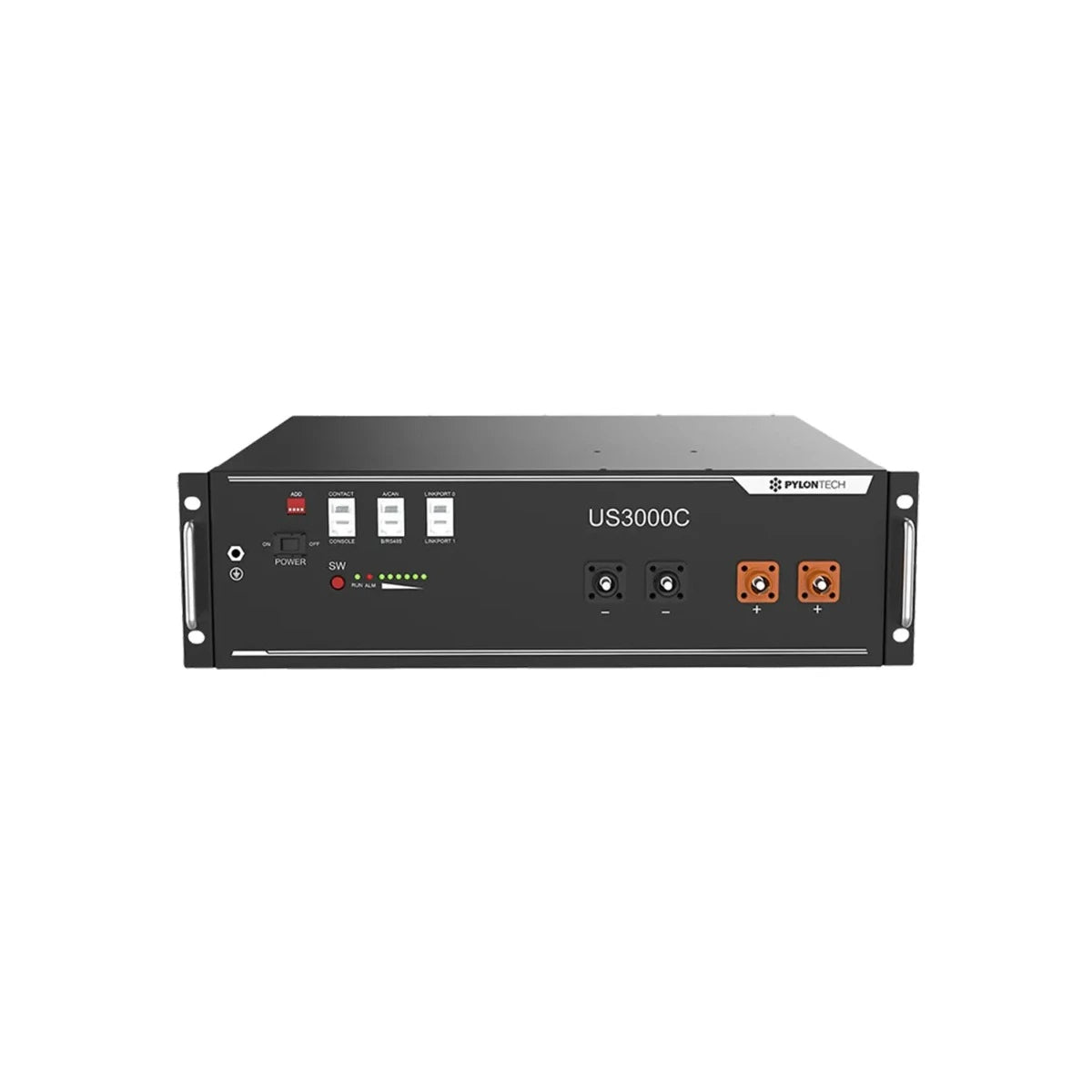

Pylon US3000C 3.5kWh Li-Ion Solar Battery

Pylon US3000C 3.5kWh Li-Ion Solar Battery

US3000C is Pylontech's latest HESS battery system, which has made record deliveries to over 300,000 homes. Long life characteristics, industry-leading energy and energy density, modern design, and ease of installation and expansion all reflect the actual needs of end users and Pylontech's strongest technical capabilities. The new US3000C battery has an amazing 95% depth of discharge and allows 16 units to be installed in parallel. The capacity is double what it was before.

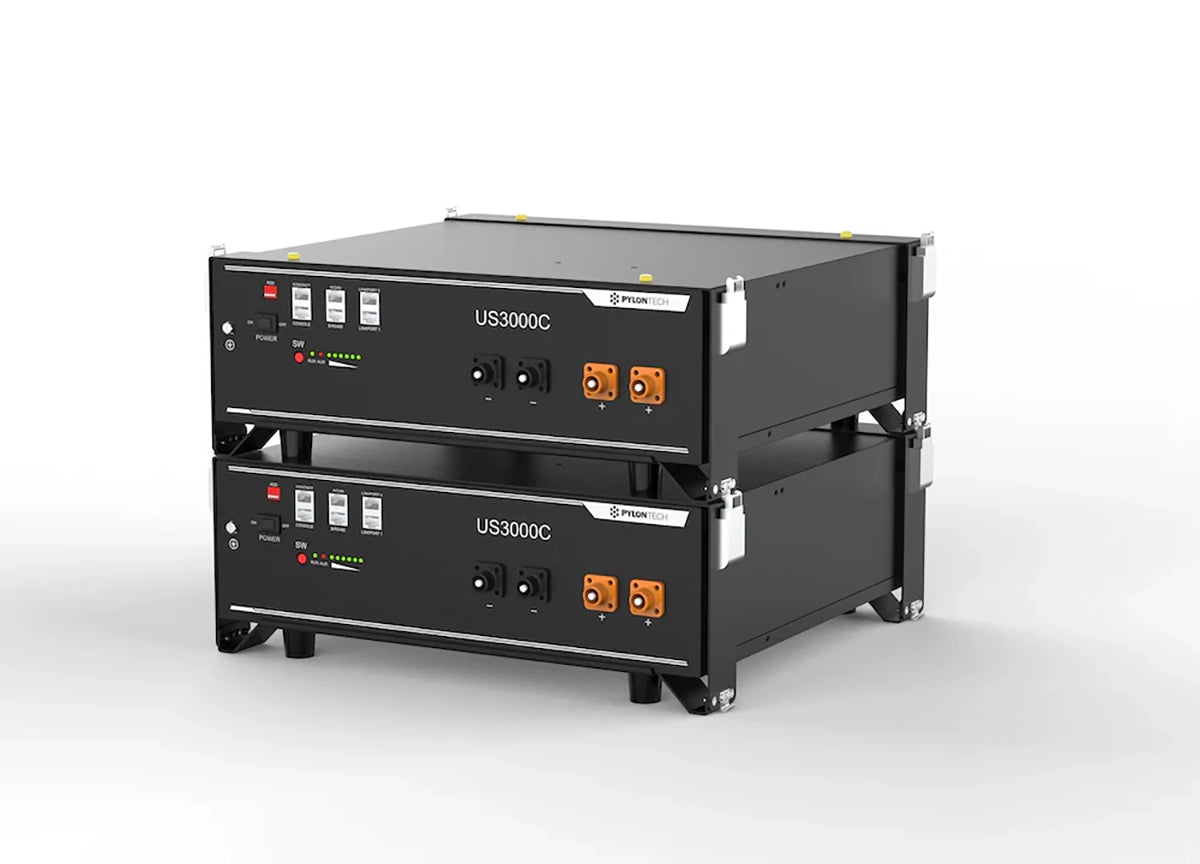

The system is modular and stackable. With up to a 10-year warranty and 6000 cycles @ 95% DOD, this battery offers the best value for money.

SPECIFICATION (48V)

• Nominal Voltage (Vdc) 48
• Nominal Capacity(Wh) 3552
• Usable Capacity(Wh) 3374
• Charge/ Discharge Current(A) (Peak 1) 74~89@60sec         (Peak-2) 90~200@15sec
• Communication Port RS485,CAN
• Single string quantity(pcs) 16
• Working Temperature/ ℃ Charge 0~50
• Working Temperature/ ℃ Discharge -10~50
• Short current/duration time <4000A/2ms
• IP rating of enclosure IP20
• Humidity 5% ~ 95%(RH) No Condensation
• Design life 15+ Years (25℃/77℉)
• Cycle Life >6,000 25℃

Important

Please check battery communication and settings, before connecting the grid or PV. A charging voltage over 53.2V will damage the battery.

SA ONLY: Please note US2000C and US3000C batteries require different pinouts on the communication cable when used with Solis RHI Hybrid inverters. Standard cable used with US2000B and US3000 will not work. Please make sure the correct cable is being used.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Crystal Communications and its Supplier will not be held liable for any product malfunctions as a result of incorrectly installed systems.

You can now register the Pylon US3000C for an additional 3 years of manufacturer warranty for free. Go to http://www.pylontech.com.cn/service/support and complete the information in the 'sign up battery' page.
