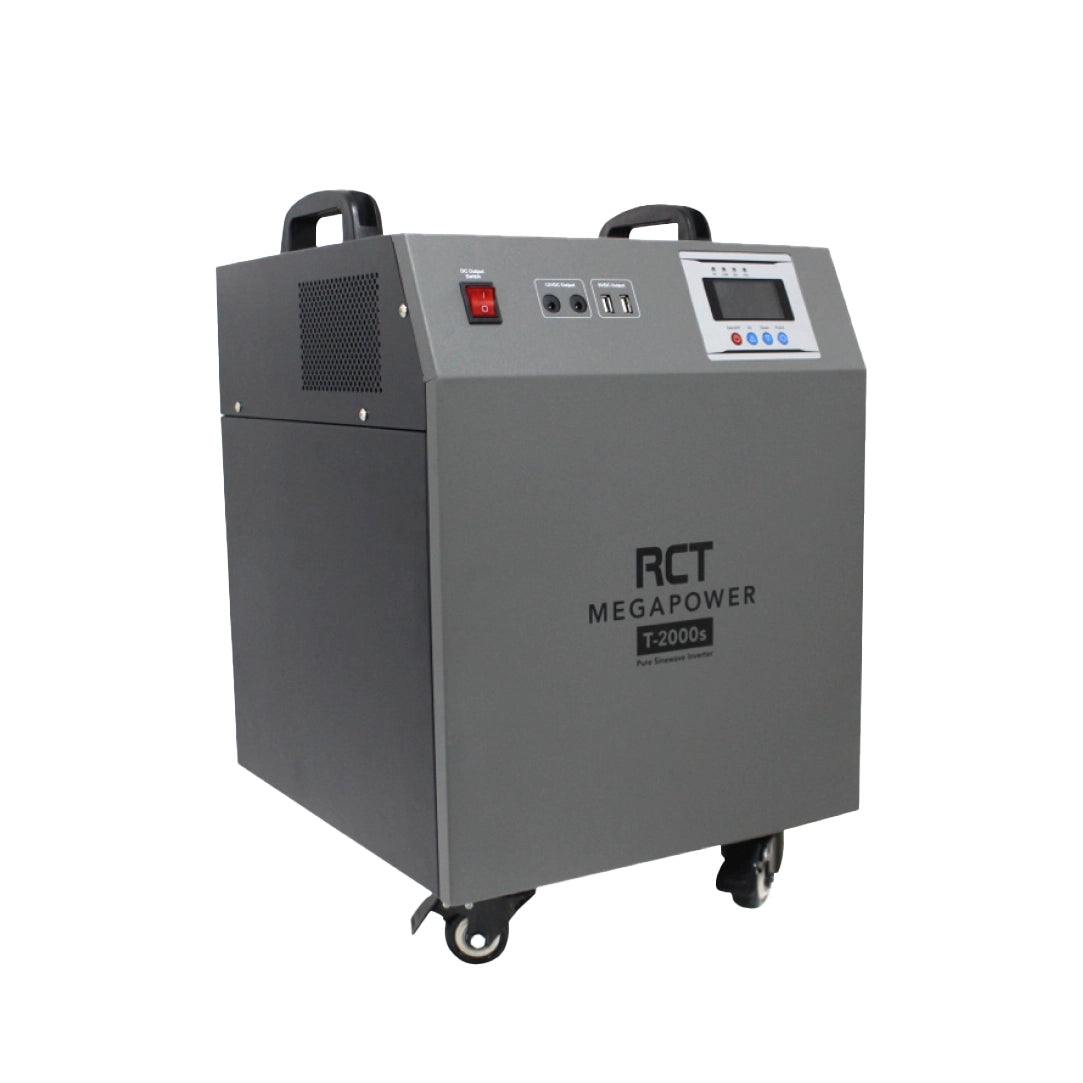

RCT Megapower 2kva/2000w Inverter Trolley With 2 X 100ah LiFePO Battery

RCT Megapower 2kva/2000w Inverter Trolley With 2 X 100ah LiFePO Battery

This advanced UPS delivers pure sinewave power, ensuring optimal performance for sensitive electronics and motorized loads. Designed for reliability, it features intelligent microprocessor control, input power factor correction, and a 1.0 output power factor. The built-in MPPT solar charger maximizes energy efficiency, while the intuitive display provides real-time system monitoring. Convenient dual USB (5V DC) and 12V DC outputs offer versatile connectivity, and a battery cut-off switch enhances safety. Pre-installed batteries ensure a hassle-free setup, making this UPS a powerful and dependable energy solution.

Product Features:

• Pure Sinewave Output – Ideal for sensitive electronics and motorized loads
• Intelligent Microprocessor Control – Enhances reliability and performance
• Input Power Factor Correction – Improves efficiency and stability
• Output Power Factor 1.0 – Delivers maximum power utilization
• Built-in MPPT Solar Charger – Optimizes solar energy conversion
• User-Friendly Display – Provides real-time UPS status monitoring
• Multiple Power Outputs – 2 x USB (5V DC) & 2 x 12V DC for added convenience
• Battery Cut-Off Switch – Ensures safety and protection
• Pre-Installed Batteries – Ready for immediate use, no setup required


Specifications:

General

• Model: RCT T-2000LFP Megapower LiFePo Trolley
• Battery Type: LiFePO₄ (Lithium Iron Phosphate)
• Pre-Installed Batteries: Yes

Inverter Battery

• Battery Voltage: 24V
• Battery Capacity: 100Ah / 12V × 2
• Total Energy Storage: 2400Wh

Inverter Specifications

• Rated Power: 2000W
• Output Voltage: 220V AC
• Output Frequency: 50Hz
• Output Waveform: Pure Sine Wave

Solar Charger Specifications

• Maximum Photovoltaic Voltage (VDC): 100V
• Charge Voltage (VDC): 30V - 30.4V
• Rated Charge Current (A): MPPT 30A
• Maximum Power (Wp): 800W
• Module Overcharge Protection (VDC): 28.8V
• Voltage Overcharge Recovery (VDC): 26.0V
• Voltage of Floating Charge (VDC): 27.6V

DC Output

• 5V DC USB Output Ports: 2 ports (Max. 2A)
• 12V DC Output Ports: 2 ports (Max. 2A)

Protection Features

• High-Voltage Protection (VDC): 32.0V
• High-Voltage Recovery (VDC): 30.4V
• Low-Voltage Recovery (VDC): 25V
• Low-Voltage Protection (VDC): 23.2V
• Battery Cut-Off Switch: Yes

Environmental Conditions

• • Starting Temperature of Exhaust Fan: > 45°C
  • Operating Temperature Range: -20°C to 50°C
