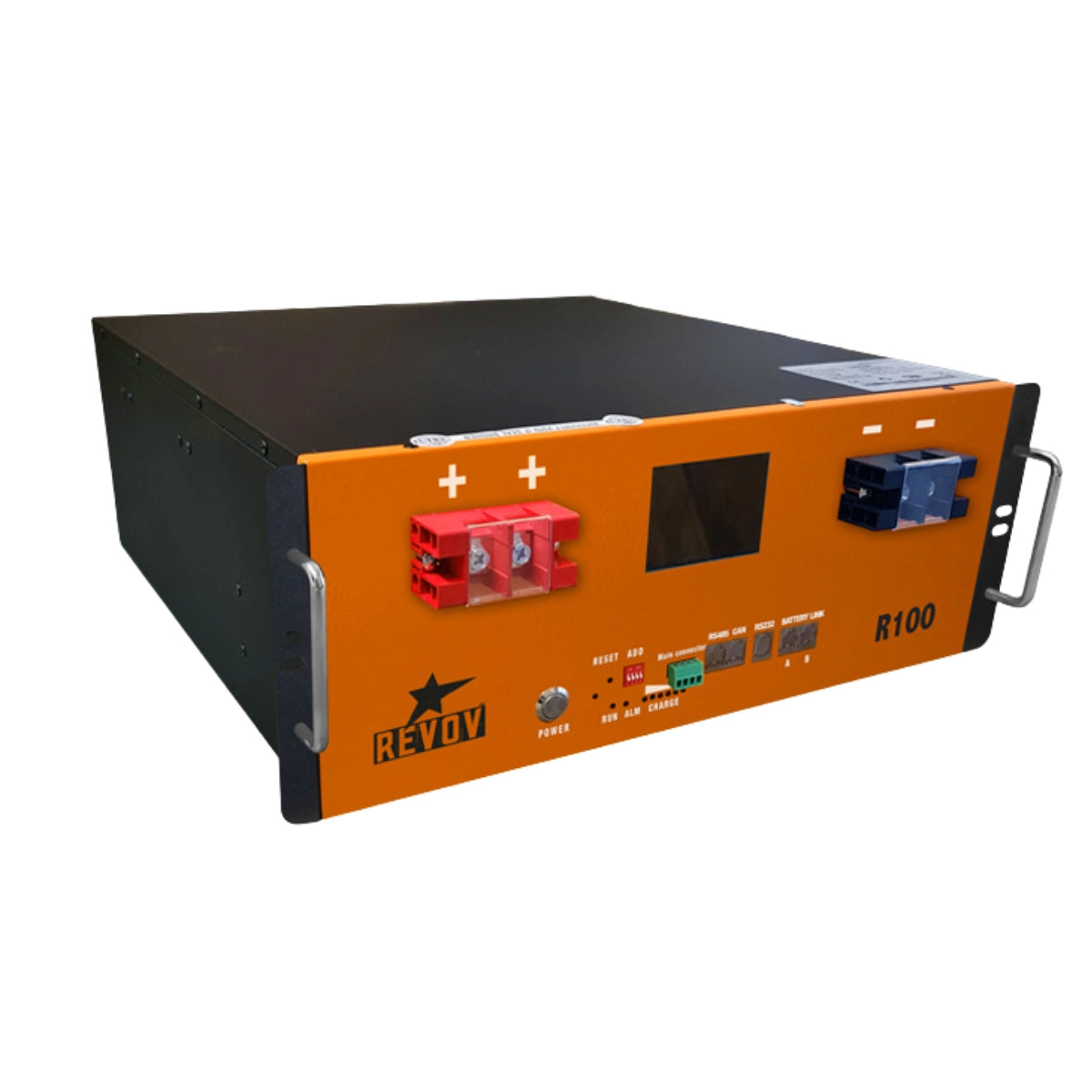

REVOV 2nd Life Lithium Iron Phosphate battery R100 5.1kWh 51.2V 100Ah (NEW)

REVOV 2nd Life Lithium Iron Phosphate battery R100 5.1kWh 51.2V 100Ah (NEW)

The REVOV R100 is a 5.1kWh Lithium Iron Phosphate (LiFePO₄) battery designed with a superior 16-cell configuration using Energy Storage Grade Cells. Built for durability and reliability, it performs efficiently under harsh conditions and extreme temperatures. The R100 features an integrated Battery Management System (BMS) and a touch screen interface for easy protocol selection and battery information display. Proudly African, the R100 offers a sustainable and high-performance energy storage solution for residential and commercial systems.

Product Features:

• Safe LiFePO₄ chemistry

• Long lifecycle

• High temperature performance

• High energy density

• High charge and discharge rate

• High efficiency

• Integrated Battery Management System (BMS)

• Touch screen with protocol selection and battery information

WARRANTY

Used within the warranty parameters the battery has lifetime energy potential of 24MWh.

The warranty is valid for either a period of 10 years or a cycle count of:

• 6000 cycles at 80% Depth of Discharge (DoD) or
• 5000 cycles at 90% Depth of Discharge (DoD) or
• 3500 cycles at 100% Depth of Discharge (DoD) - whichever lapses first.

When used appropriately the R100 can be safely discharged to 100% of its rated capacity daily.

Battery life is shortened if it is discharged beyond its rated Ah capacity.

• Model: R100

• Battery Type: Lithium Iron Phosphate (LiFePO₄)

• Total Energy: 5.1kWh

• Usable Energy: 5.1kWh (100% DoD supported)

• Nominal Voltage: 51.2V

• Rated Capacity: 100Ah

• Max Continuous Charge/Discharge Current: 100A / 100A

• Float Voltage: 54.5V

• Absorption Voltage: 55.5V

• Cut-Off Voltage: —

• Enclosure Rating: IP20

• Weight: 44kg

• Dimensions (L x W x H): 490mm x 440mm x 155mm

• Access Interface: CAN Bus, RS485

• Operating Temperature (Charging): 0°C to 45°C

• Operating Temperature (Discharging): -10°C to 45°C

• Storage Conditions: 15°C – 25°C at 50% SoC (charge every 6 months)

• Design Cycle Life: 6,000 cycles

• Compatible Inverters: All leading inverter brands

Important Notice: Click Here
