Reyee Dual Band WiFi 5 1300Mbps Fast Ethernet Ceiling Mount AP

Reyee Dual Band WiFi 5 1300Mbps Fast Ethernet Ceiling Mount AP

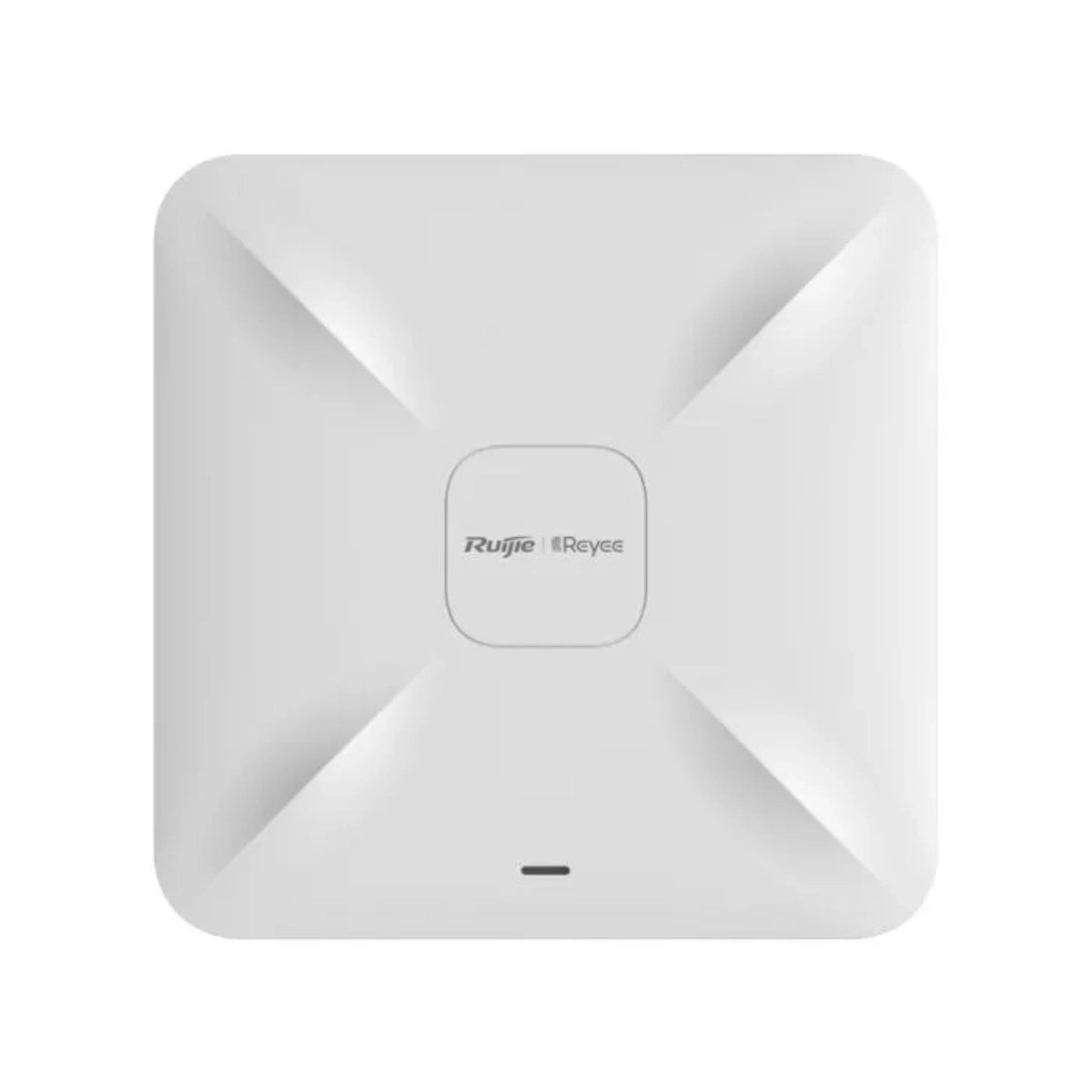

The Ruijie RG-RAP2200F is a high-performance dual-band ceiling mount access point designed for wide indoor Wi-Fi coverage. Supporting the latest 802.11ac Wave2 technology and MU-MIMO, it delivers combined wireless speeds up to 1267Mbps. Ideal for offices, hotels, and commercial environments, it offers seamless roaming, multiple installation options, and easy management through the Ruijie Cloud app or web interface.

Product Features:

• Compliant with 802.11a/b/g/n/ac Wave1/Wave2 standards
• Dual-band simultaneous access (2.4GHz and 5GHz)
• MU-MIMO dual-stream support for efficient device connections
• Maximum wireless throughput of 400Mbps (2.4GHz) and 867Mbps (5GHz)
• Supports up to 110 clients, with 40 recommended (8 on 2.4GHz, 32 on 5GHz)
• Supports 8 SSIDs with customizable security and VLAN configurations
• Seamless Layer 2 and Layer 3 roaming
• Cloud management via Ruijie Cloud app and web interface
• Supports automatic RF adjustment and unified platform monitoring
• Wall-mount and ceiling-mount installation options


Specifications:

• Radio Protocol: 802.11ac Wave2, Wave1, 802.11a/b/g/n
• Antenna Type: Built-in omnidirectional (2dBi for both bands)
• Spatial Streams: 2x2 MIMO on both 2.4GHz and 5GHz
• Max Throughput: Up to 1267Mbps (400Mbps + 867Mbps)
• Power Supply: 802.3af/at PoE or 12V DC (adapter sold separately)
• Power Consumption: ≤ 12.95W
• Dimensions: 194mm x 194mm x 35mm
• Weight: 0.45kg
• Ports: 2 x 10/100 Mbps Ethernet ports (LAN1 supports PoE)
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Humidity: 5% to 95% (non-condensing)
• Security: WPA/WPA2 (TKIP/AES), PSK authentication, MAC filtering
• Management Options: Ruijie Cloud app, local web, or cloud platform
• MTBF: >400,000 hours
