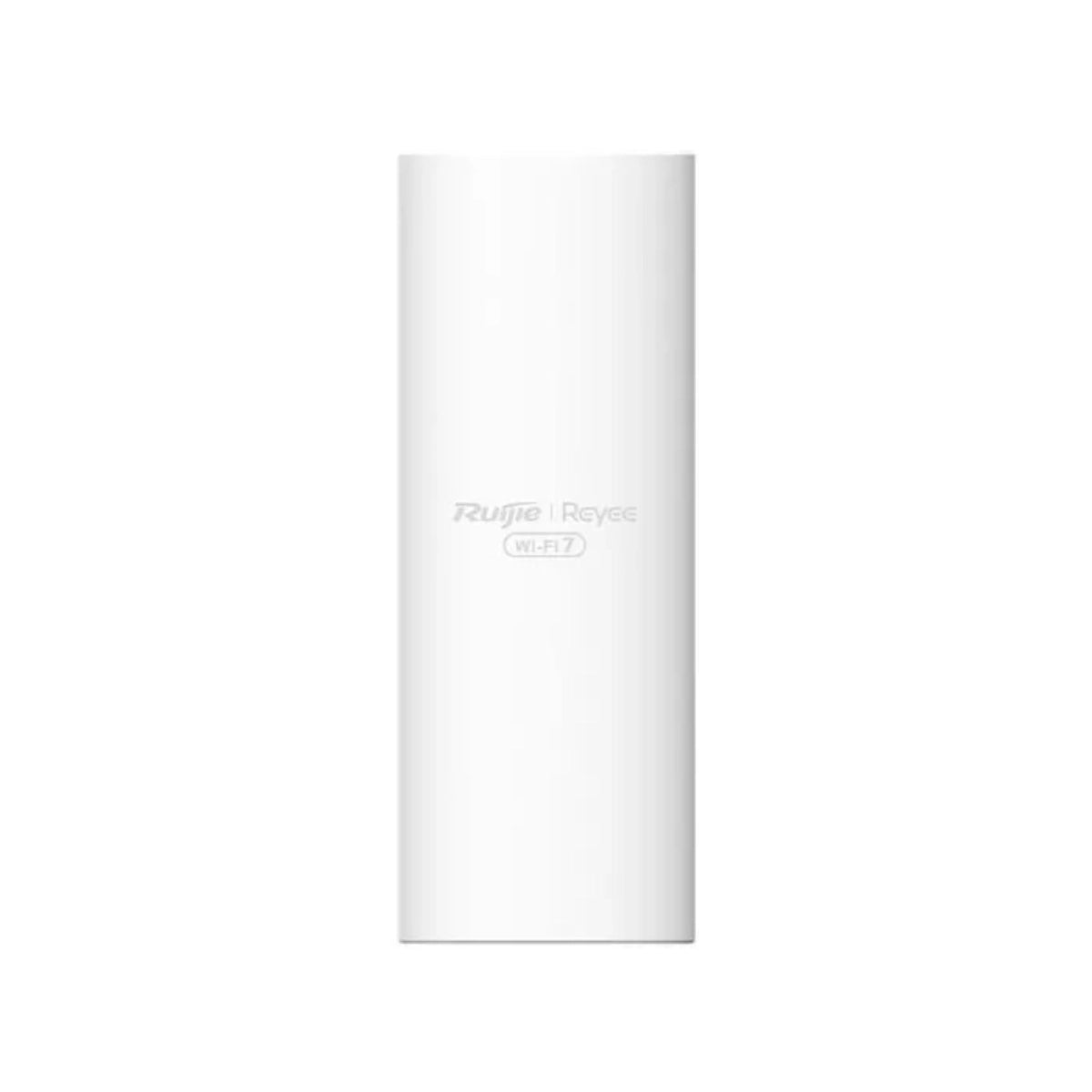

Reyee Dual Band WiFi 7 5040Mbps Multi-Gigabit Outdoor AP

Reyee Dual Band WiFi 7 5040Mbps Multi-Gigabit Outdoor AP

The RG-RAP72PRO-OD from Reyee delivers cutting-edge WiFi 7 (802.11be) technology in a weatherproof IP65-rated outdoor enclosure with integrated antennas. This high-performance dual-band access point achieves combined speeds of 5040Mbps (688Mbps on 2.4GHz and 4323Mbps on 5.8GHz) and features a 2.5Gbps Ethernet port with PoE capability. Advanced functionality includes Reyee AP Mesh, Standalone Portal, and AI Roaming. Leverage Ruijie's intelligent networking ecosystem for streamlined remote management through their complimentary cloud service. Device integration is effortless via auto-discovery or QR code scanning through the mobile application.

Product Features:

• Dual-band support (2.4 GHz and 5 GHz) with up to 5.011 Gbps combined throughput
• Supports Wi-Fi 7 (IEEE 802.11be), Wi-Fi 6 (802.11ax), Wi-Fi 5, and legacy standards
• Multi-Link Operation (MLO) and 4K-QAM for higher performance and lower latency
• Built-in omnidirectional antennas for broader coverage
• IP65-rated weatherproof design for harsh outdoor environments
• AI roaming and 802.11k/v/r support for seamless client handoff
• Wall and pole mounting options for flexible deployment
• Mesh networking via Reyee Mesh to reduce cabling complexity
• Standalone portal and captive portal for easy access control
• Managed locally via web or remotely via Ruijie Cloud or Reyee App


Specifications:

• Model: RG-RAP72Pro-OD
• Wi-Fi Standards: IEEE 802.11b/g/n/ax/be (2.4 GHz), IEEE 802.11a/n/ac/ax/be (5 GHz)
• Max Data Rate: 5011 Mbps (2.4 GHz: 688 Mbps, 5 GHz: 4323 Mbps)
• Antenna Type: Built-in omnidirectional
• Antenna Gain: 3.62 dBi (2.4 GHz), 6.28 dBi (5 GHz)
• Max Transmit Power: 23 dBm (both bands)
• Port: 1 x 10/100/1000/2500BASE-T Ethernet
• Power Supply: PoE (802.3af/802.3at), power consumption < 21 W
• Operating Temperature: –30°C to +65°C
• Mounting: Wall or pole mount
• Dimensions: 90 x 46 x 239 mm
• Weight: ≤ 0.7 kg
• Max Clients Supported: 110
• Max SSIDs: 8
• Security: WPA3, WPA2, WPA-PSK, 802.1X, enhanced open (OWE)
• Management: Web UI, Ruijie Cloud, Ruijie Reyee App, SNMP
• Protection: Lightning protection ±4 kV, IP65 enclosure
• Memory: 512 MB RAM, 256 MB Flash
