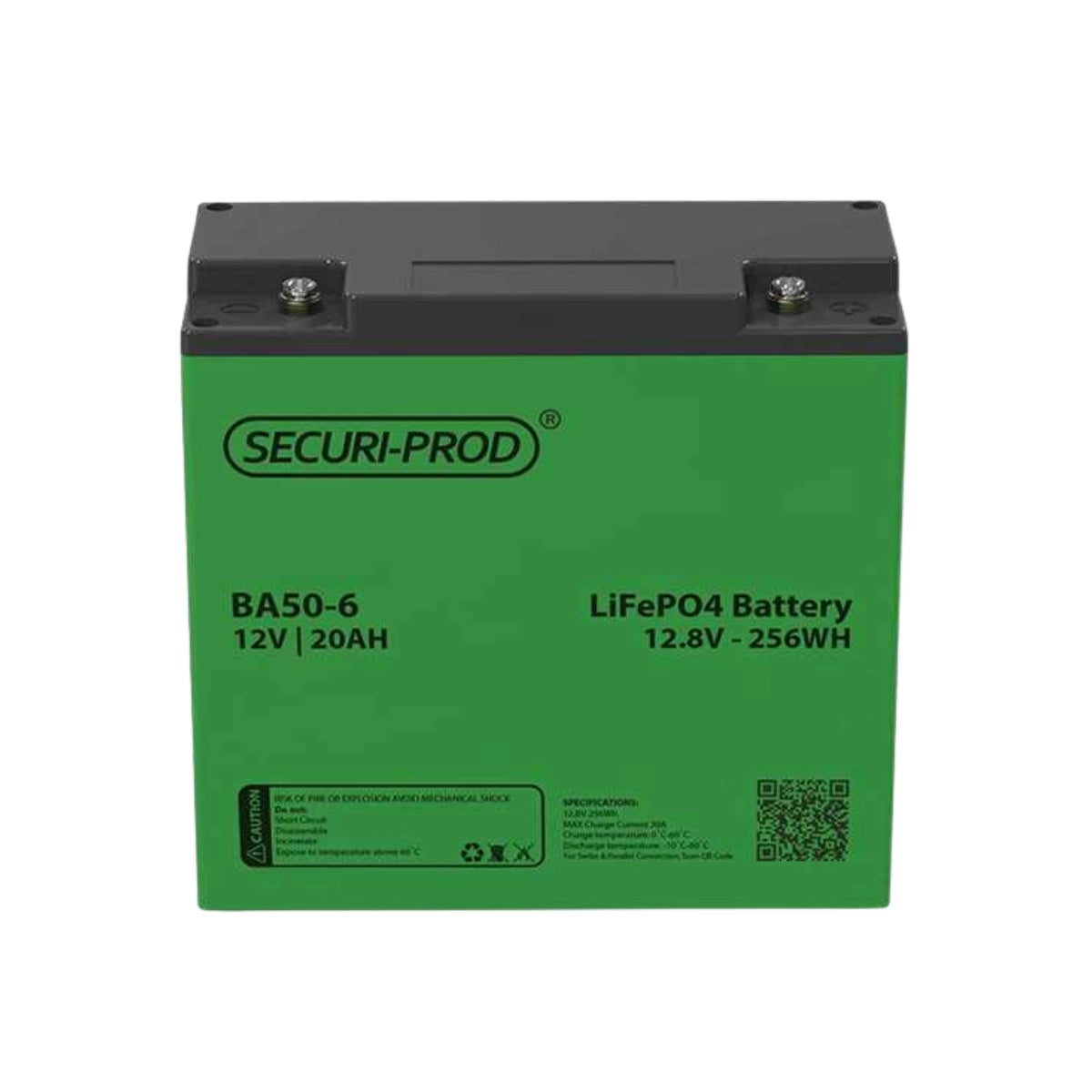

Securi-Prod Battery 12V 20Ah Lithium LiFePO4

Securi-Prod Battery 12V 20Ah Lithium LiFePO4

R 1,231.00
R 1,231.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Securi-Prod Battery 12V 20Ah Lithium LiFePO4

The Securi-Prod 12V 20Ah Lithium LiFePO₄ Battery is a compact, lightweight, and long-lasting power solution designed to replace traditional sealed lead-acid (SLA) batteries. With advanced Lithium Iron Phosphate (LiFePO₄) cells, it offers over 3000 cycles at 80% depth of discharge, ensuring excellent reliability and extended lifespan.

Product Features:

  • New Lithium Iron Phosphate cells.
  • High Cycle Life: >3000 @ 80%DOD (Depth of Discharge).
  • Suitable SLA Replacement – Backup Power, Solar Applications, UPS, etc.
  • Built-in BMS (Battery Management System) for Battery Protection.
  • Light Weight – 30% of SLA battery.

A maximum number of batteries connected:

  • In Series: 4
  • In Parallel: 8

Cautions:

Do not submerge the battery in water.
Do not expose the battery to an open flame or extreme temperatures.
Do not crush or disassemble.
Avoid short circuits.
Store at 50% capacity, recharge every 3 months if not in use.

PRODUCT SPECIFICATIONS

- Nominal Voltage - 12V (12.8V)
- Capacity - 20Ah
- Self-Discharge - <3%/month
- Max Discharge Current - 20A
- Recommended Discharge Current - <10A
- Max Charge Current - 10A
- Recommended Charge Current - <5A
- BMS Cut-off Low Voltage - 9.2V
- BMS Charge Cut-off High Voltage - 14.6V
- Dimensions（L*W*H）- 181*76*170mm
- Weight - 2.3kg
- Terminal Type - Screw Stud (M6)
- Enclosure Protection - IP65
- Discharge Temperature - -20ºC to 60ºC
- Charge Temperature - 0ºC to 45ºC

A maximum number of batteries connected:
- In Series: 4
- In Parallel: 8

NOTE:
To increase voltage, the series connection method is used. For example: 12V + 12V = 24V. When connected in series the capacity remains the same. To increase capacity, a parallel connection method is used. For example: 20Ah + 20Ah= 40Ah. When connected in parallel the voltage remains the same. Series & Parallel combinations are NOT Recommended.

IMPORTANT NOTICE

Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and
installation requirements.

This product must be installed by a qualified electrician/technician. All installations must adhere to
local wiring regulations and standards. Crystal Communications and its Supplier will not be held
liable for any product malfunctions as a result of incorrectly installed systems.

Technical specifications and general features are provided on our website, however, as individual
needs and requirements may differ, it is recommended that our sales team is contacted for any
specific questions before a purchase is made to ensure that the item being purchased will satisfy
your requirements.

The images shown are for illustration purposes only and may not be an exact
representation of the product.

Crystal Communications (Pty) Ltd may not have all the specific items or quantities of stock you have
requested. Our dedicated Customer Service Team will use our extensive network to try to source the
stock for you ASAP. You will be notified within 24 hours if we cannot source the required item, and a
full refund will be processed on your order. Should you wish to contact us directly, please call
0118670488 or email sales@crystalcom.co.za
