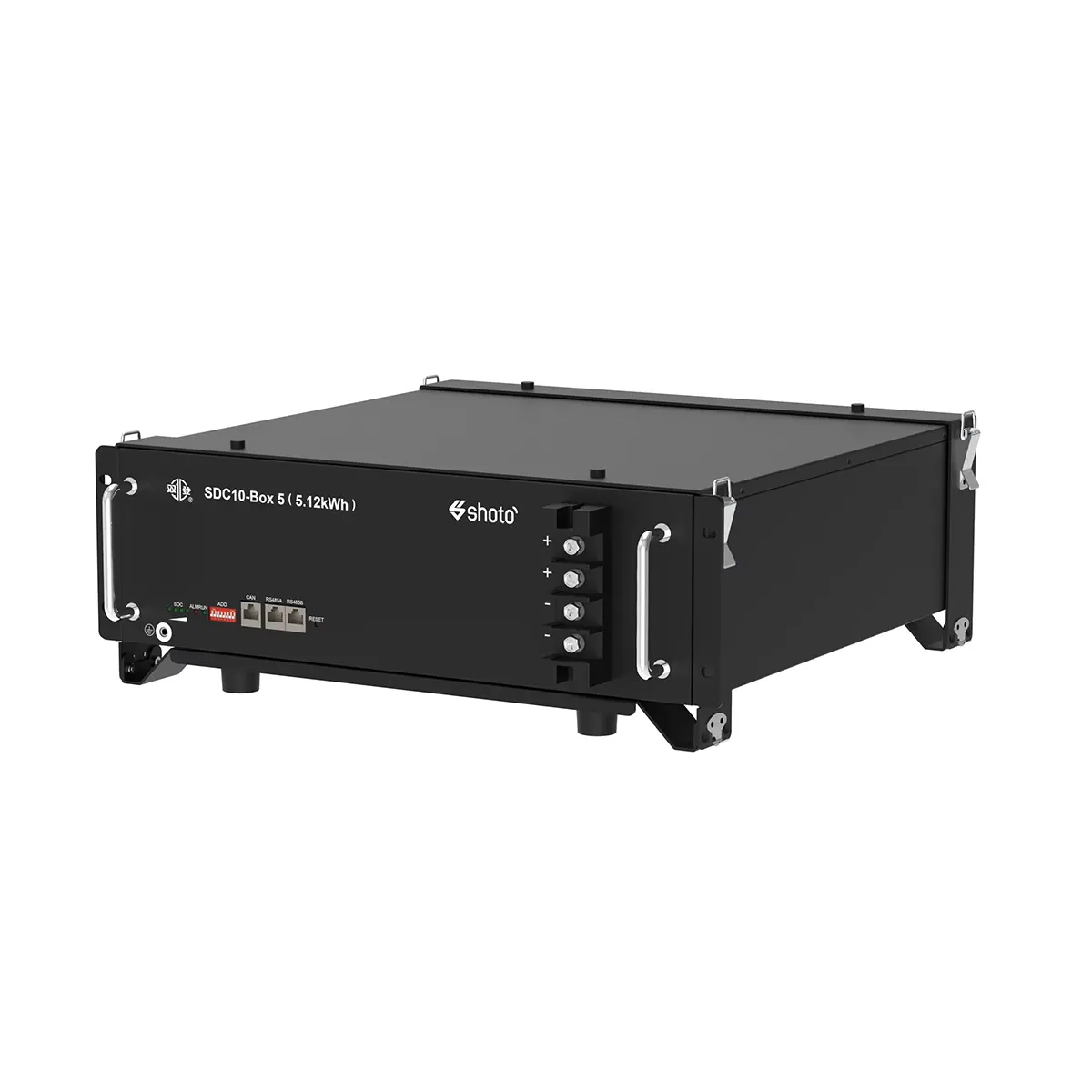

Shoto SDC10-Box5 5.12kWh 100AH Battery

Shoto SDC10-Box5 5.12kWh 100AH Battery

The Shoto SDC10-Box5 delivers 5.12kWh of dependable energy storage for both residential and commercial installations. Built on advanced lithium-ion chemistry, this 100Ah battery system maximizes renewable energy utilization while minimizing reliance on grid supply. It provides consistent backup power when needed, backed by robust engineering that prioritizes durability and operational safety. The unit's high energy efficiency rating ensures optimal performance across extended discharge cycles, making it a practical choice for properties seeking reliable energy independence and grid resilience.

Product Features:

• Advanced Lithium Iron Phosphate (LiFePO₄) Technology

• Intelligent Battery Management System (BMS) for Protection & Efficiency

• High Energy Density & Scalable Design

• High Efficiency with Fast Charging & Discharging

• Wide Compatibility & Easy Integration

• User-friendly installation

• Supports multiple communication protocols – RS485 and CAN

• Fast charge capability

• Low self-discharge rate

Specifications:

• System Nominal Energy: 5.12kWh

• Nominal Voltage: 51.2V
• Operating Voltage Range: 45.0 - 56.4V
• Max. Output Power: 4.1kW
• Peak Output Power: 5.4kW,10S
• Max. Charging Current: 50A
• Max. Discharge Current: 100A
• Dimensions [W*H*D]: 443*135*440mm
• Weight: 40kg
• 25℃ Cycle Life: ≥6000Cycles @80%DOD&70%EOL
