Sinotec 5kW, 48VDC INVERTER OFF GRID

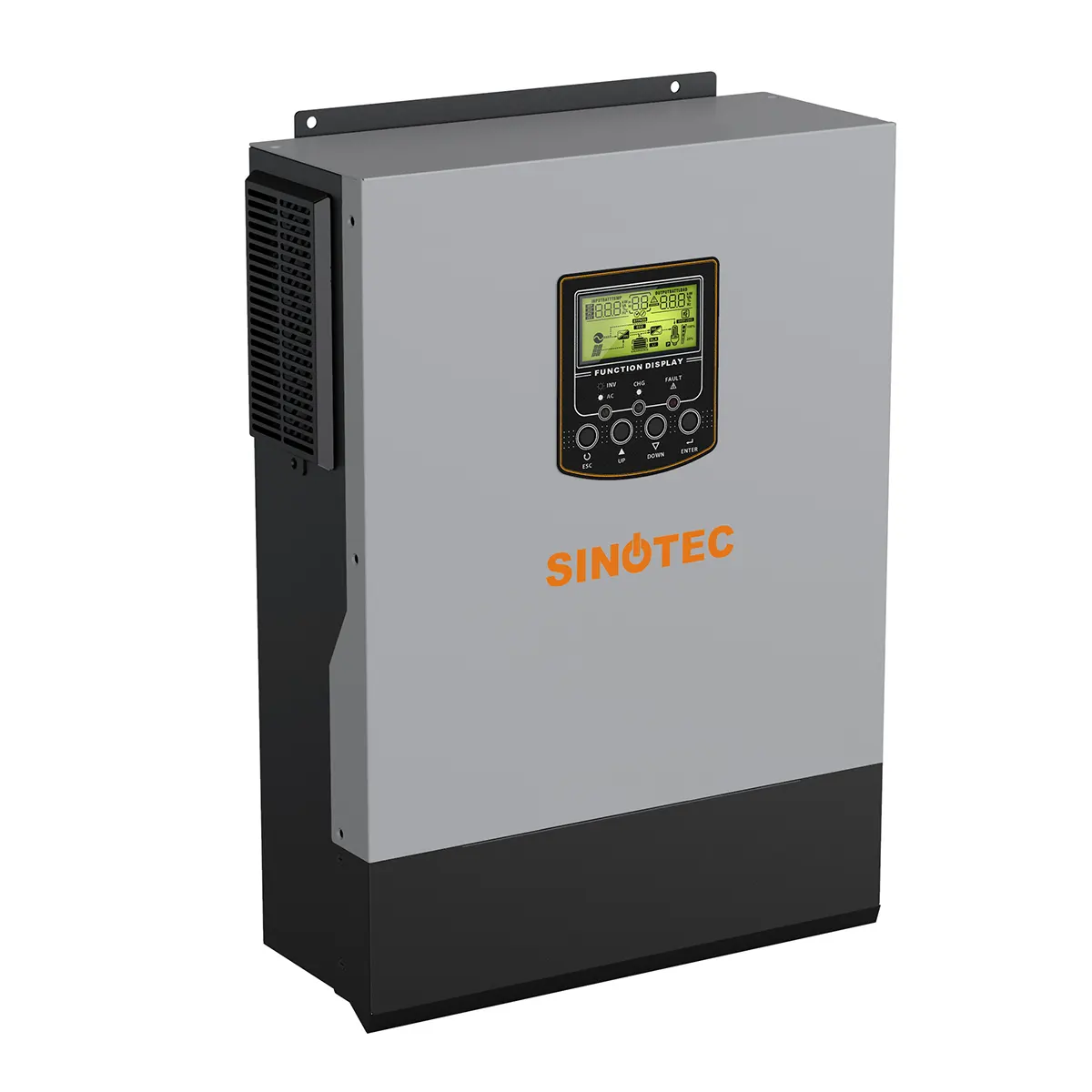

SINOTEC 5kW, 48VDC INVERTER OFF GRID - XT-5K

SINOTEC operations began in 1999 from a production facility in Midrand, Johannesburg and have since grown to become one of the major television-panel manufacturers in South Africa. SINOTEC specialize in the manufacture, sales and after sales servicing of a range of consumer electronics and household appliances.

Product Features:

What‘s Off-Grid？

As the name suggests, an off-grid solar system is a power supply system that can operate independently of the grid. An off-grid solar system comprises solar panels, batteries, off-grid inverters, and loads. Typically, off-grid inverters also support the connection to the grid or generator to supplement power if you want.

Specifications:

Rated Power - 5000VA/5000W

INPUT

• Voltage - 230 VAC
• Selectable Voltage Range - 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances)
• Frequency Range - 50Hz/60Hz (Auto sensing)

OUTPUT

• AC Voltage Regulation (Batt. Mode) - 230VAC ± 5%
• Surge Power - 10000VA
• Efficiency (Peak) - 93%
• Transfer Time - 10ms (For Personal Computers); 20 ms (For Home Appliances)
• Waveform - Pure sine wave

BATTERY

• Battery Voltage - 48 VDC
• Floating Charge Voltage - 54 VDC
• Overcharge Protection - 63 VDC

SOLAR CHARGER & AC CHARGER

• Solar Charger Type - MPPT
• Maximum PV Array Open Circuit Voltage - 500 VDC
• Maximum PV Array Power - 5000W
• MPP Range @ Operating Voltage - 120 ~ 450VDC
• Maximum Solar Charge Current - 100A
• Maximum AC Charge Current - 100A
• Maximum Charge Current - 100A

PHYSICAL

• Dimension, D x W x H (mm) - 120 x 300 x 440
• Net Weight (kgs) - 10
• Communication Interface - RS232/RS485
