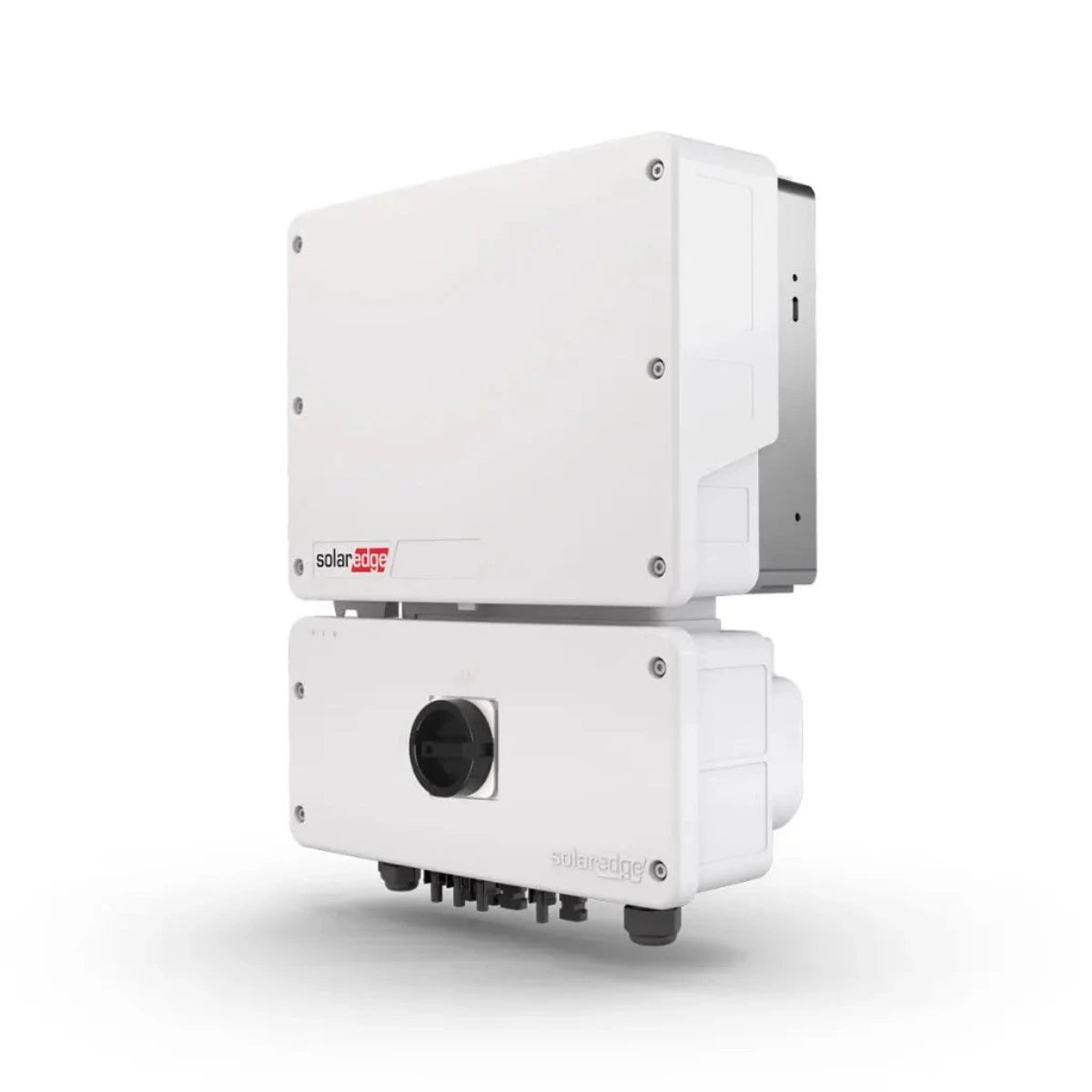

SolarEdge 10.0kW Energy Hub Inverter 1P Prism Technology

SolarEdge 10.0kW Energy Hub Inverter 1P Prism Technology

SolarEdge is a global leader in smart energy technology. By leveraging world-class engineering capabilities and with a relentless focus on innovation, SolarEdge creates smart energy solutions that power our lives and drive future progress.
SolarEdge developed an intelligent inverter solution that changed the way power is harvested and managed in photovoltaic (PV) systems. The SolarEdge DC optimized inverter maximizes power generation while lowering the cost of energy produced by the PV system.
Continuing to advance smart energy, SolarEdge addresses a broad range of energy market segments through its PV, storage, EV charging, UPS, and grid services solutions.

Product Features:

• The ultimate home energy manager in charge of PV production, battery storage, backup operation during a power outage*, and smart energy devices
• Record-breaking up to 99% weighted efficiency with up to 200% DC oversizing, for higher energy yield
• Integrates seamlessly with the complete SolarEdge Home ecosystem, through SolarEdge Home Network
• Small, lightweight, and easy to install
• Advanced safety features including SafeDC™, rapid shutdown, and integrated arc fault protection
• Enables module-level monitoring and full visibility of battery status, PV production, and self-consumption data
• A scalable solution that supports future homeowner needs through easy connection to a growing ecosystem of products including:
• Full home backup power
• High efficiency DC-coupled storage
• EV charging with SolarEdge Home EV Charger
• IP65-rated, for indoor and outdoor installations

Specifications:

• Weight: 15 kg
• Rated Power: 10,000 W
• Maximum AC Power Output: 10,000 W
• Maximum Continuous Output Current: 45.5 A
• Rated AC Power in Backup Operation: 10,000 W
• Max PPT Voltage: 480 V
• Nom DC Input Voltage: 380 V
• Max DC Power:  -  20,000 W
• Supported Battery Types: SolarEdge Home Battery 400V
• Number of Batteries per Inverter: Up to 3
