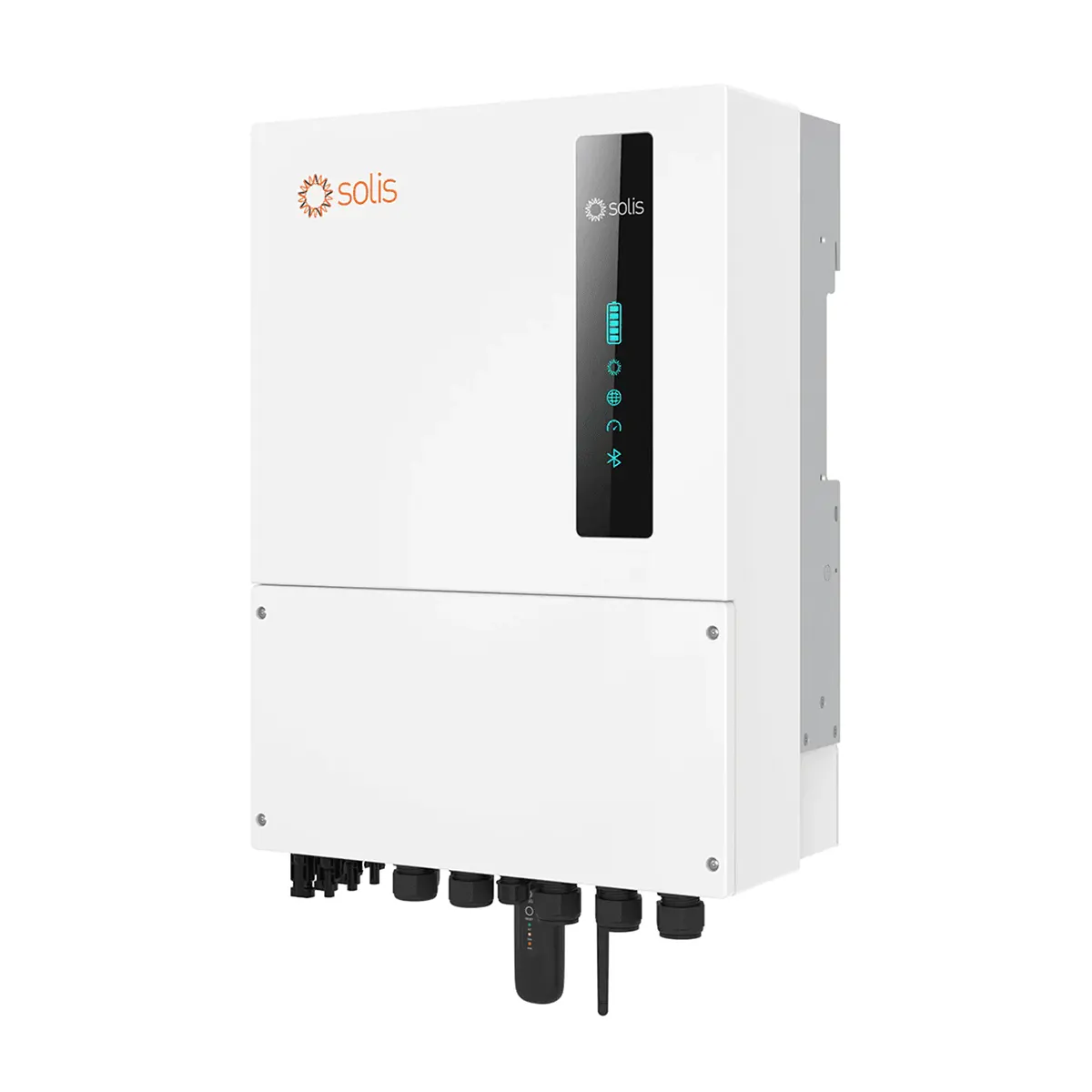

Solis S6 Pro 8kW Advanced Hybrid Inverter

Solis S6 Pro 8kW Advanced Hybrid Inverter - SOL-S6-EH1P8K-L-PRO

Introducing the Solis S6 Pro 8kW Advanced Hybrid Inverter, a smart and robust solution for today's solar market. With flexible single-phase or three-phase connections. The intuitive LED display, automatic generator integration, and real-time energy management make it a convenient and reliable investment, backed by a 5-year warranty extendable to 10 years.

Product Features:

• Generator connectivity with multiple input methods and automatic generator On/Off control
• Automatic UPS switching
• 10 second 200% surge power backup overload capability
• 6 customisable charge/discharge time settings
• Up to 190A max charge/discharge current
• Compatible with lead-acid and lithium batteries, with multiple battery protection features
• Supports peak shaving control in both "self-use" and "generator" mode

Specifications:

Input DC (PV side)

• Recommended max. PV power: 12.8 kW
• Max. input voltage: 600 V
• Rated voltage: 330 V
• Start-up voltage: 90 V
• MPPT voltage range: 90-520 V
• Max. input current: 32 A / 20 A
• Max. short circuit current: 36 A / 30 A
• MPPT number/Max. input strings number: 2/3

Input AC (Grid side)

• Input voltage range: 187-253 V
• Max. input current: 50 A
• Frequency range: 45-55 Hz / 55-65 Hz

Output AC (Grid side)

• Rated output power: 8 kW
• Max. apparent output power: 8.8 kVA
• Rated grid voltage: 220 V / 230 V
• Rated grid frequency: 50 Hz / 60 Hz
• Rated grid output current: 36.4 A / 34.8 A
• Max. output current: 40 A

Battery

• Battery type: Li-ion / Lead-acid
• Battery voltage range: 40-60 V
• Max. charge / discharge power: 8 kW
• Max. charge / discharge current: 190 A
• Communication: CAN/RS485

Physical

• Dimensions (W*H*D): 406*560*215 mm
• Weight: 27 kg
• Ingress protection: IP66
• Cooling concept: Intelligent redundant fan-cooling
