Solis 5kW Hybrid Inverter with 4x JA Solar 505W Solar Panels - Cost Savings Starter Kit

Solis 5kW Hybrid Inverter with 4x JA Solar 505W Solar Panels - Cost Savings Starter Kit

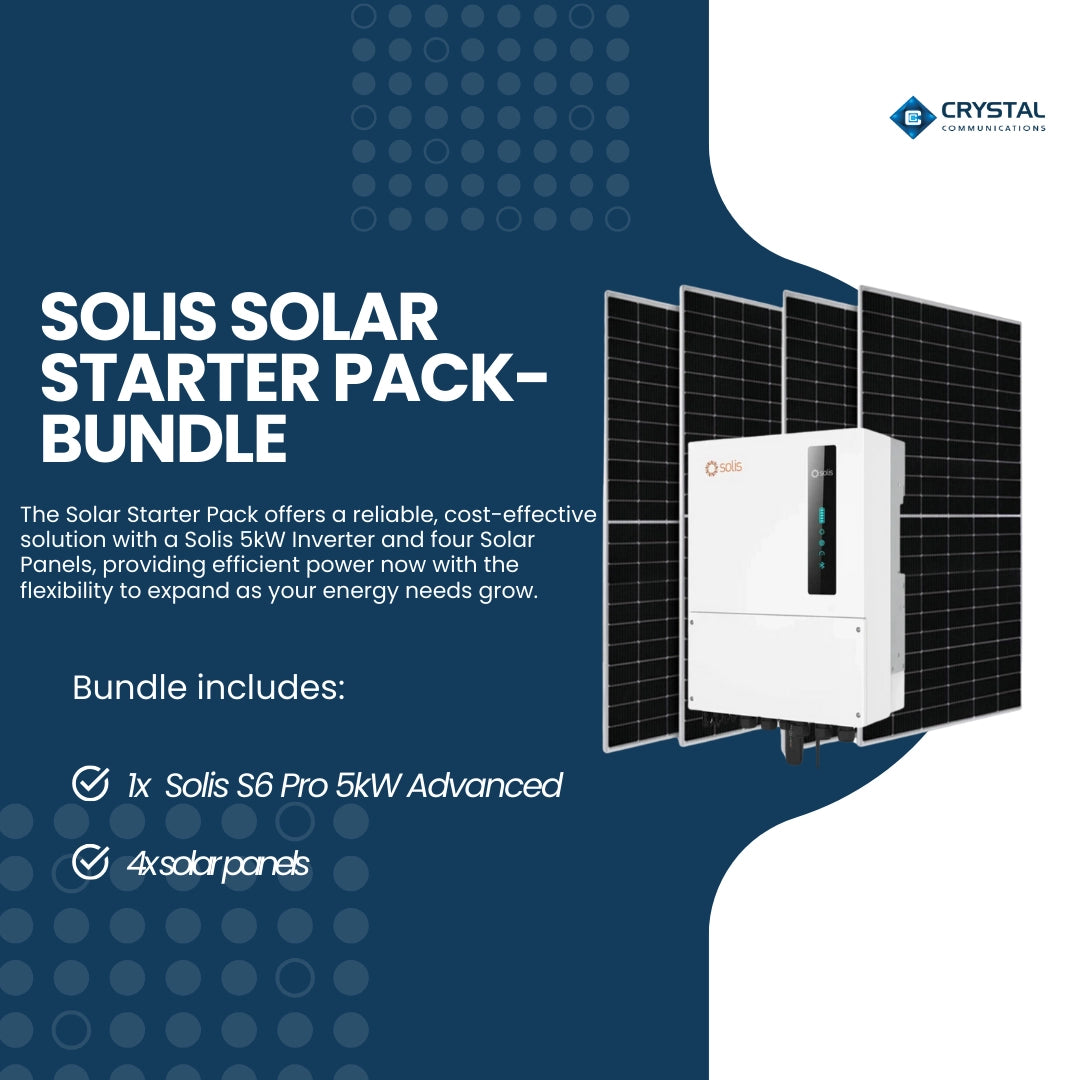

Start your solar journey with our Solar Starter Pack—a high-quality, budget-friendly solution designed for dependable energy performance. This package includes a Solis 5kW Inverter and four 505W JA Solar Panels, providing an efficient system that reduces electricity costs and supports your energy needs.

The Solis 5kW Inverter offers stable and efficient power conversion, making it ideal for residential use. Paired with four 505W JA Solar Panels .

The Solar Starter Pack offers a professional-grade solution with all essential components for a smooth transition to solar power. Perfect for those seeking reliability, efficiency, and cost savings in one comprehensive package.

Bundle Includes:

• 1x Solis S6 Pro 5kW Advanced Hybrid Inverter

• 3x JA Solar 505W Mono PERC Half-Cell Solar Panel

Inverter Features:

• Generator connectivity with multiple input methods and automatic generator On/Off control
• Automatic UPS switching
• 10 second 200% surge power backup overload capability
• 6 customisable charge/discharge time settings
• Up to 112A max charge/discharge current
• Compatible with lead-acid and lithium batteries, with multiple battery protection features
• Supports peak shaving control in both "self-use" and "generator" mode

Specifications:

Input DC (PV side)

• Recommended max. PV power: 8 kW
• Max. input voltage: 600 V
• Rated voltage: 330 V
• Start-up voltage: 90 V
• MPPT voltage range: 90-520 V
• Max. input current: 16 A / 16 A
• Max. short circuit current: 24 A / 24 A
• MPPT number/Max. input strings number: 2/2

Input AC (Grid side)

• Input voltage range: 187-253 V
• Max. input current: 32 A
• Frequency range: 45-55 Hz / 55-65 Hz

Output AC (Grid side)

• Rated output power: 5 kW
• Max. apparent output power: 5.5 kVA
• Rated grid voltage: 220 V / 230 V
• Rated grid frequency: 50 Hz / 60 Hz
• Rated grid output current: 22.7 A / 21.7 A
• Max. output current: 25 A

Battery

• Battery type: Li-ion / Lead-acid
• Battery voltage range: 40-60 V
• Max. charge / discharge power: 5 kW
• Max. charge / discharge current: 112 A
• Communication: CAN/RS485

Physical

• Dimensions (W*H*D): 406*560*205 mm
• Weight: 24 kg
• Ingress protection: IP66
• Cooling concept: Natural convection

Panel Features:

• Lower cost at high energy output than most panels.
• Less shading impact and lower resistive loss thus increasing panel production.
• Better mechanical loading tolerance which improves longevity of the panel.
• Lower temperature coefficient ensuring high power output in high temperatures.
• The product is of high-quality boasting certifications with several certification bodies.
• Efficiency of up to 21.3%.

• 12-year product warrant and 25-year linear power output warranty.
• Modules come with MC4 connectors.
• Frame thickness has reduced from 35mm to 30mm.

Specifications:

• Supplier Part No: - JAM66S-30-505-MR-TS-MC4
• Weight: - 26.3kg
• Rated Power: - 505W

• Length: 2,093mm Width: 1,134mm Depth: 30mm
• VMPP: - 38.53V
• IMPP: - 13.11A
• Isc: - 14A
• Voc: - 45.72V

• Clamp position on panel: - Long and short side
• Connector Type: - MC4
• Efficiency: - 21.3%
