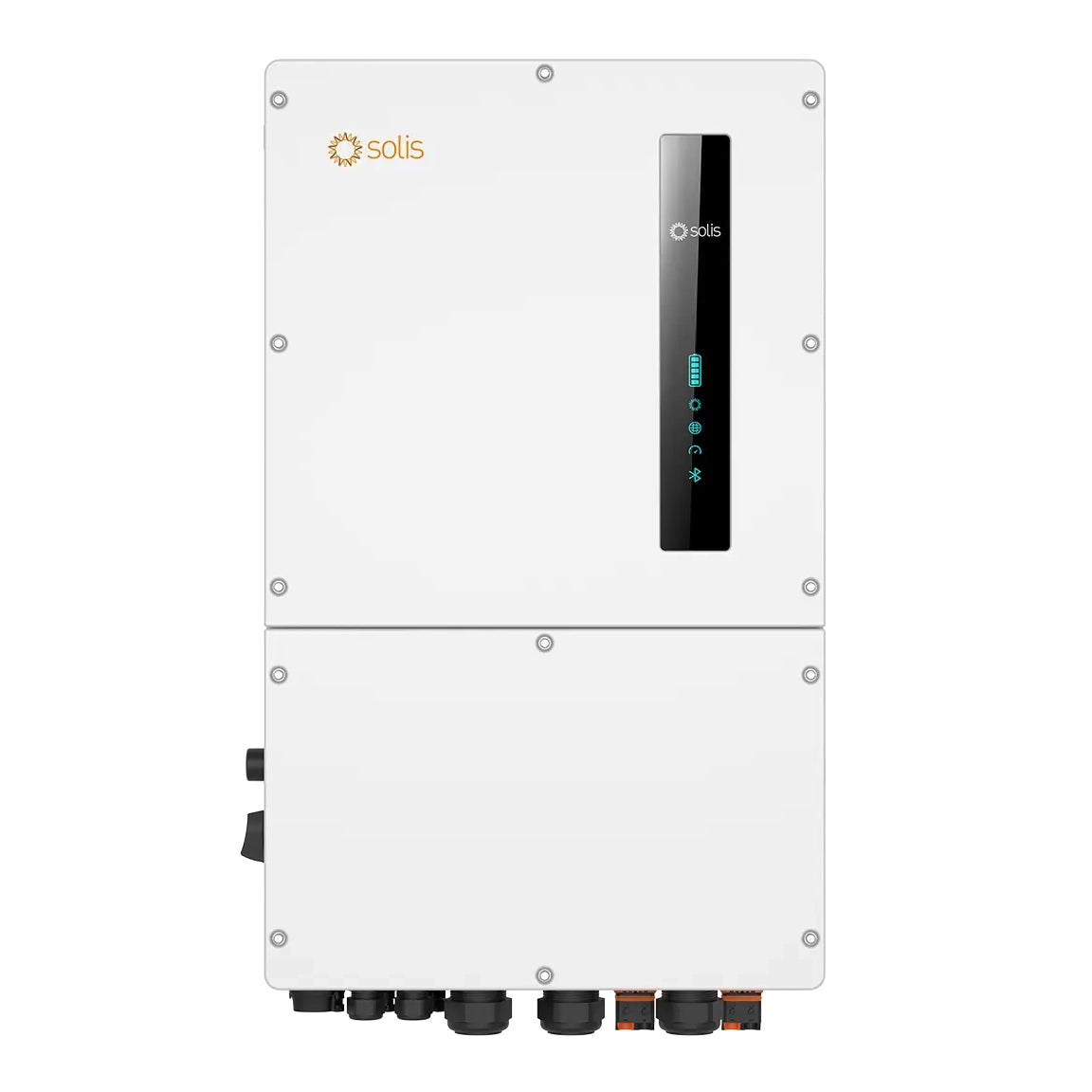

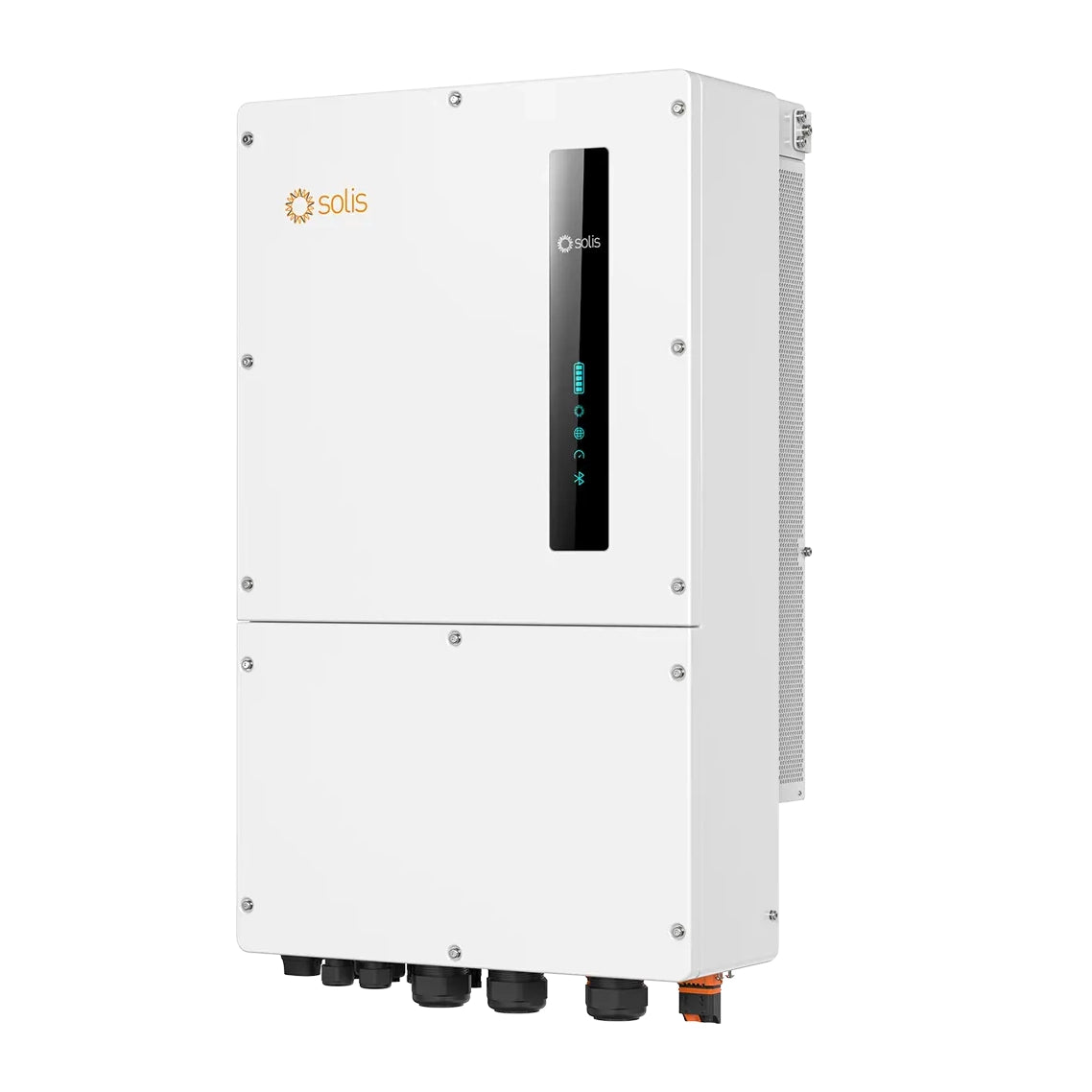

Solis Three Phase 50kW High Voltage Energy Storage Hybrid Inverter
The Solis S6 Hybrid inverter range boasts state-of-the-art capabilities perfect for the modern solar industry. Its intelligent LCD display, seamless generator integration, and numerous other features make it a top choice for today's market.
Product Features:
- Allowable PV of up to 100kW, on the 180-1000V MPPT.

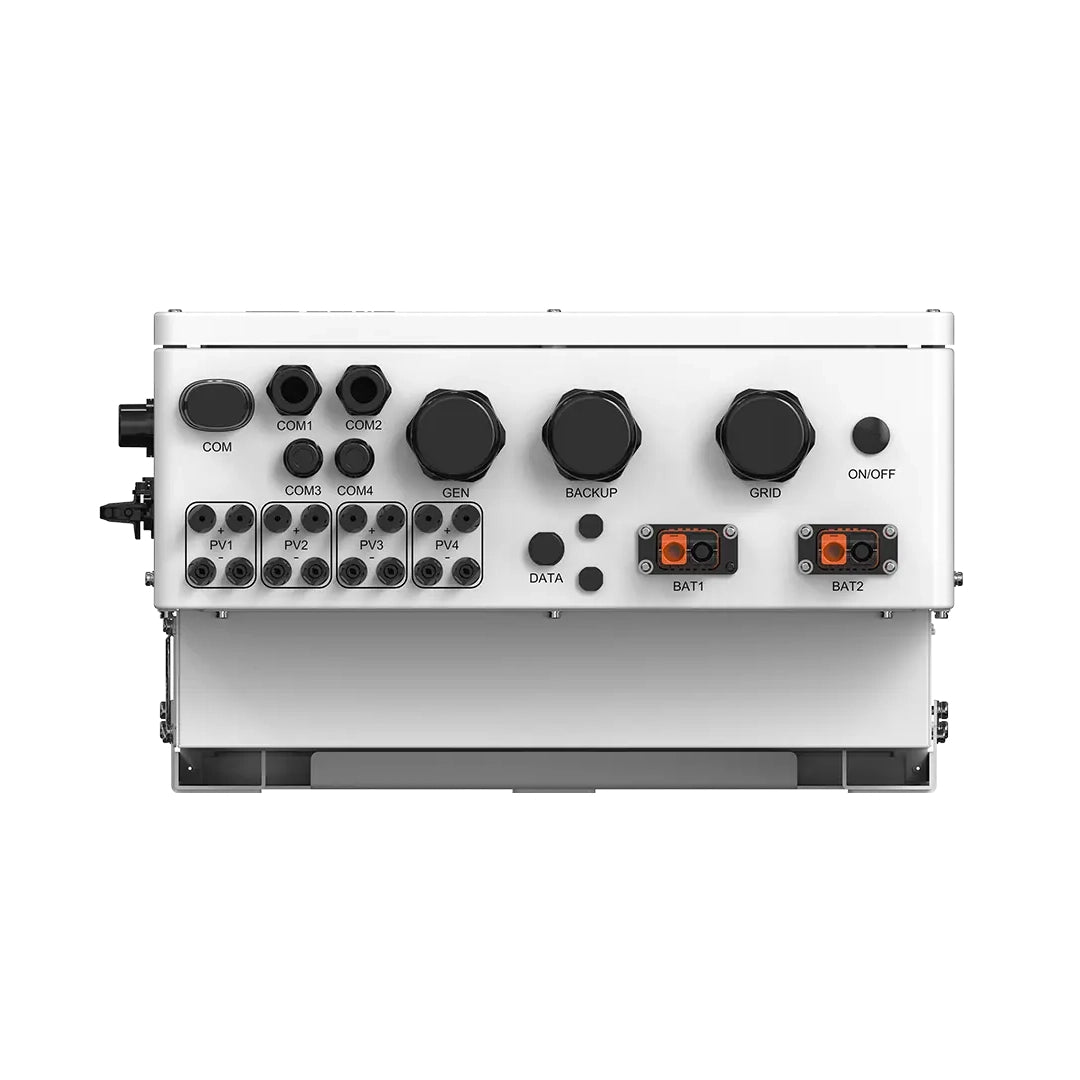

- 4-MPPTs, rated at 40A each, with 2-string inputs each allowing for 8 strings of high power/current PV modules.
- Supports Grid and Generator AC inputs.
- Parallel up to 6 x inverters for up to 300kW of back-up load.
- Battery Charge and Discharge current of up to 140A.
- UPS transfer time of less than 10ms.
- 160% surge power for 2s to accommodate inductive loads.
- Integrated AFCI (DC arc-fault circuit protection) – mitigating fire risks.
- LCD display and remote firmware upgrades with included S4 Wi-Fi/LAN Stick and Solis Cloud support/monitoring.
- Solis reliability with 5-year warranty. (extendable to 10/15/20-years)
PRODUCT SPECIFICATIONS
PRODUCT SPECIFICATIONS
Input DC (PV side)
- Recommended max. PV array size: 100 kW
- Max. usable PV input power: 96 kW
- Max. input voltage: 1000 V
- Rated voltage: 600 V
- Start-up voltage: 180 V
- MPPT voltage range: 150-850 V
- Max. input current: 4*40 A
- Max. short circuit current: 4*60 A
- MPPT number/Max. input strings number: 4/8
Input AC (Grid side)
- Max. AC passthrough current: 152 A / 144.4 A
- Rated input voltage: 3/N/PE, 220 V / 380 V, 230 V / 400 V
- Rated input frequency: 50 Hz
Output AC (Grid side)
- Rated output power: 50 kW
- Max. apparent output power: 50 kVA
- Rated grid voltage: 3/N/PE, 220 V / 380 V, 230 V / 400 V
- Rated grid frequency: 50 Hz
- Rated grid output current: 76 A / 72.2 A
Battery
- Battery type: Li-ion
- Battery voltage range: 150-800 V
- Max. charge / discharge power: 55 kW
- Max. charge / discharge current: 70 A*2
- No. of battery inputs: 2
- Max. charge / discharge power of each input: 40 kW
- Communication: CAN/RS485
- Max. output current: 76 A / 72.2 A
- Power factor: > 0.99 (0.8 leading - 0.8 lagging)
General Data
- Dimensions (W*H*D): 530*880*290 mm
- Weight: 73 kg
- Topology: Transformerless
- Self-consumption (night): < 25 W
- Ingress protection: IP66

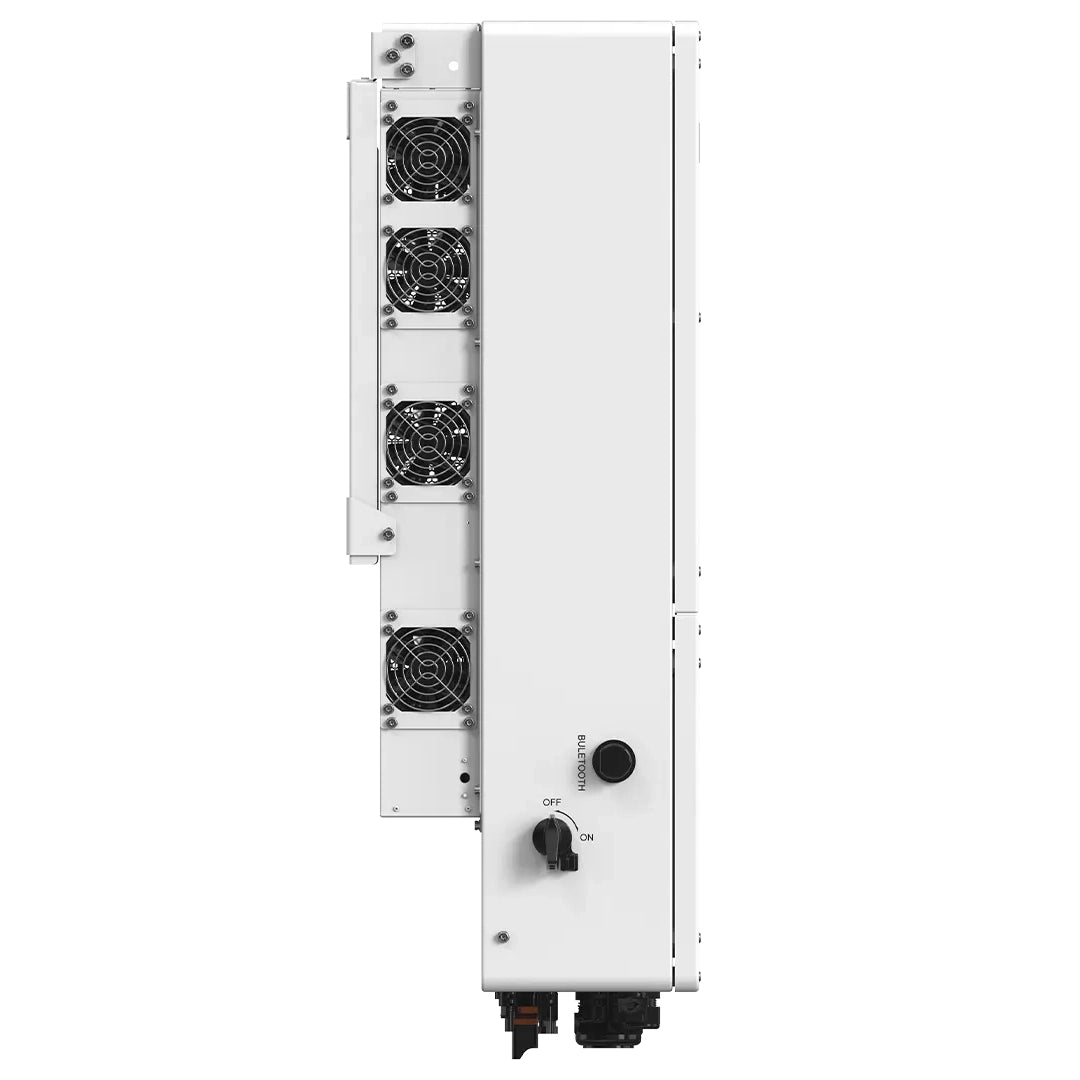

- Cooling concept: Intelligent redundant fan-cooling
IMPORTANT NOTICE
IMPORTANT NOTICE
This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Crystal Communications and its Supplier will not be held liable for any product malfunctions as a result of incorrectly installed systems.
Technical specifications and general features are provided on our website, however, as individual needs and requirements may differ, it is recommended that our sales team is contacted for any specific questions before a purchase is made to ensure that the item being purchased will satisfy your requirements.
The images shown are for illustration purposes only and may not be an exact representation of the product.
Crystal Communications (Pty) Ltd may not have all the specific items or quantities of stock you have requested. Our dedicated Customer Service Team will use our extensive network to try to source the stock for you ASAP. You will be notified within 24 hours if we cannot source the required item, and a full refund will be processed on your order. Should you wish to contact us directly, please call 0118670488 or email sales@crystalcom.co.za
