SRNE: 3KW IPC Series Low Frequency Pure Sine Wave Transformer Inverter 12V

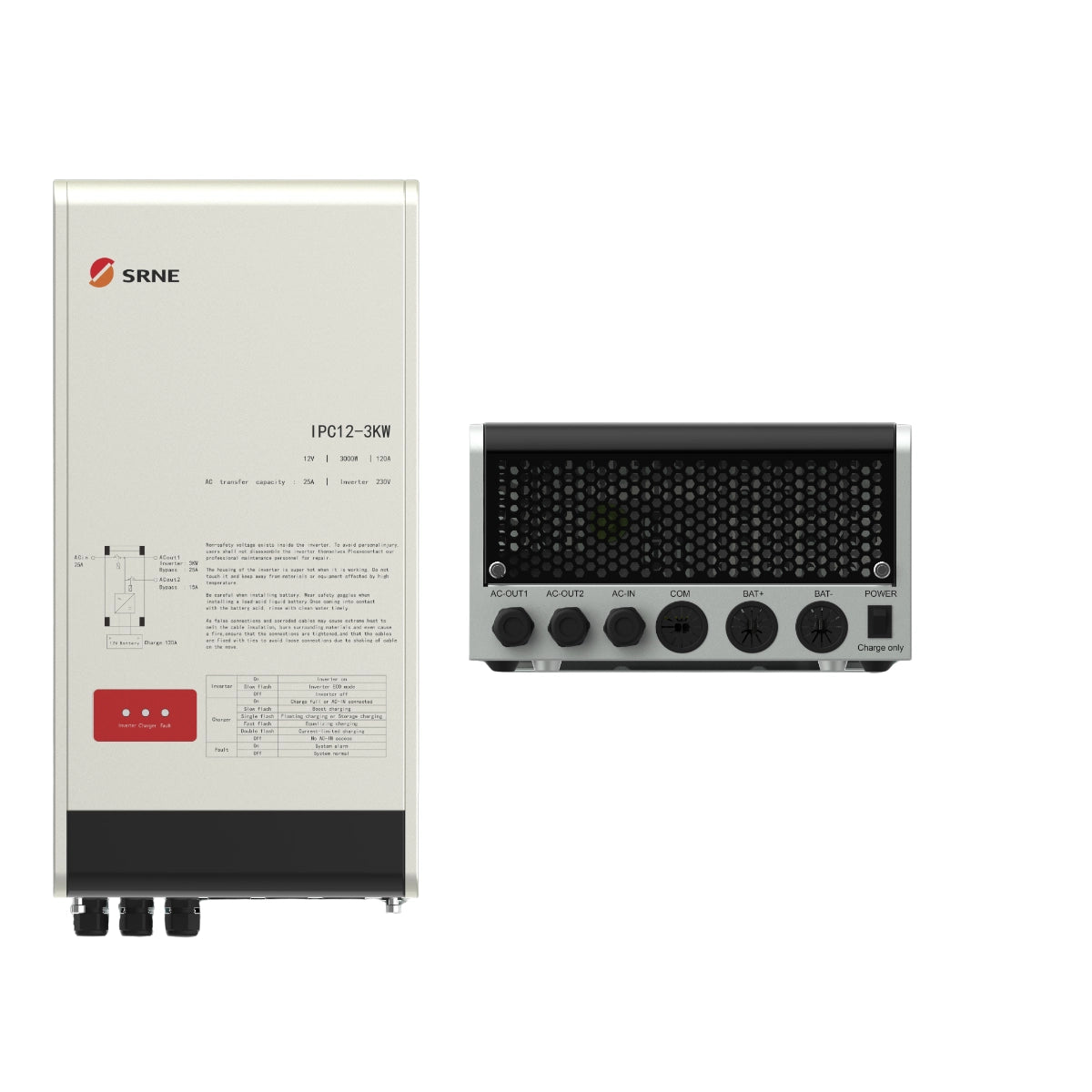

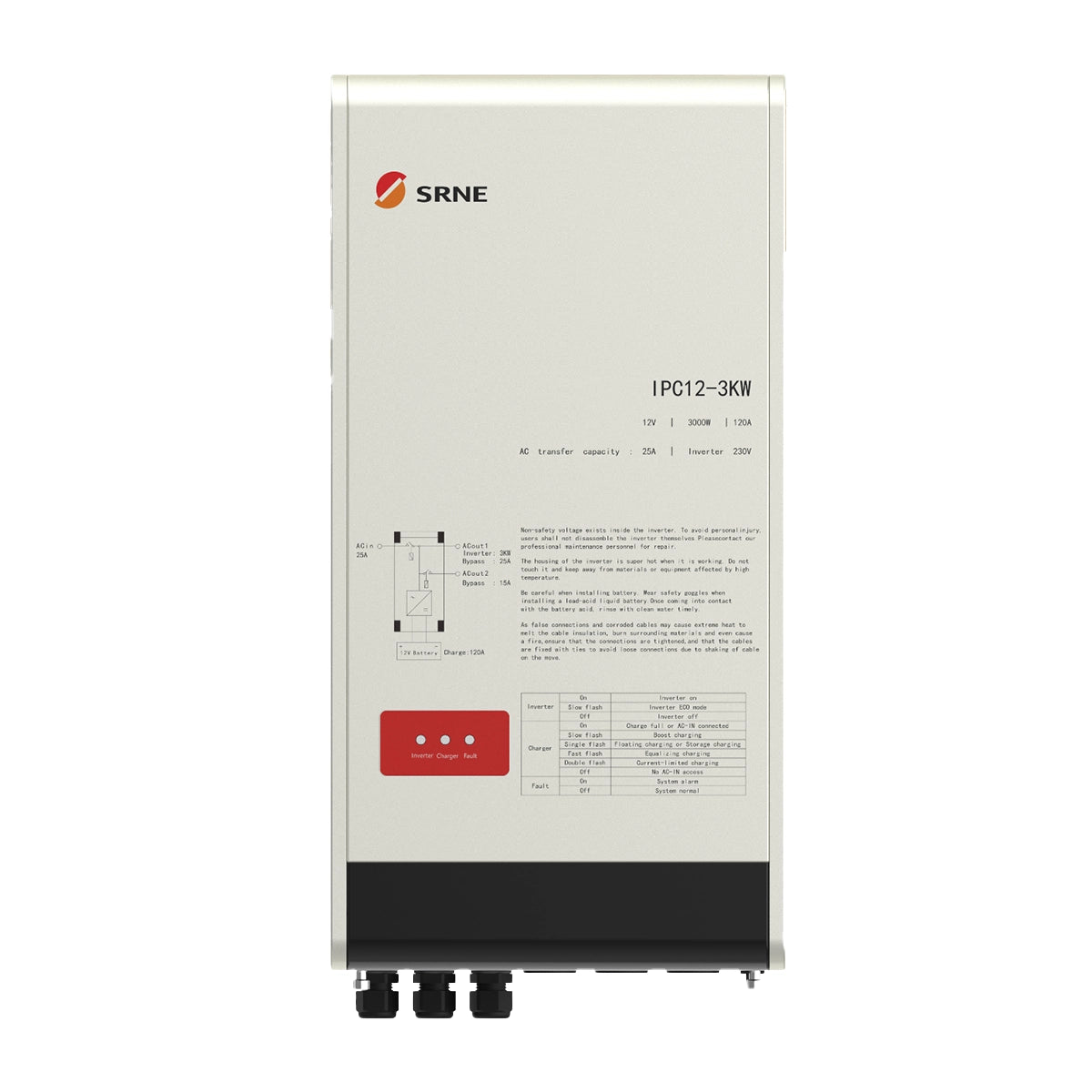

SRNE: 3KW IPC Series Low Frequency Pure Sine Wave Transformer Inverter 12V (IPC12-3KW)

The SRNE IPC-3KW inverter is a robust single-phase transformer-based inverter designed for high-performance residential and mobile power applications. Engineered by SRNE with over 15 years in the solar industry, it features advanced multi-stage charging for 12V batteries, reliable pure sine wave output, and flexible connectivity options. Ideal for off-grid and hybrid setups, this inverter ensures stable power delivery, extensive safety mechanisms, and remote monitoring via mobile app support.

Product Features:

• Supports 12V battery systems with multi-stage charging to extend battery lifespan
• Delivers stable and pure sine wave output with voltage and frequency stabilization
• Adjustable AC input current to match diverse power requirements
• Quiet operation for improved comfort and minimal noise
• Remote monitoring capability through a dedicated mobile app
• ECO mode for efficient power saving and low standby consumption
• Fast UPS mode switchover (<10ms) for uninterrupted power supply
• Built-in N-G bonding and programmable relay output
• Extensive safety protections for over-voltage, under-voltage, overload, short circuit, and over-temperature
• Compatible with Wi-Fi and GPRS modules for extended communication
• Natural and fan-assisted cooling system

Specifications:

• Inverter Mode
  • Rated Output Power: 3,000W
  • Max. Output Power: 6,000VA
  • Rated Output Voltage: 230Vac ±2% (Single Phase L+N+PE)
  • Waveform: Pure Sine Wave
  • Output Frequency: 50/60Hz (Default)
  • Rated Efficiency: >83%
  • Max. Efficiency: >94% (at 20% Load)
  • ECO Mode Start Power: <30W (30–100W Optional)
  • ECO Mode Switch Slot: 1min (adjustable 30s–30min)
  • UPS Switch Slot Time: <10ms
  • AC Output 1 Current: 25A
  • AC Output 2 Current (Mains Only): 15A
• Charge Mode
  • AC Input Voltage: 180–265Vac
  • AC Input Frequency: 45–65Hz
  • Rated AC Input Current: 0–25A
  • Battery Charging Current: 0–120A
  • Starter Battery Charging Current: 3A
• Battery
  • Rated Voltage: 12V
  • Supported Battery Types: USE / FLD / GEL / LI / SLD (Default)
• General Parameters
  • Dimensions: 551 × 280 × 157 mm
  • Weight: 22.5 kg
  • Cooling Method: Natural Cooling + Fan
  • IP Rating: IP20
  • Operating Temperature: -25°C to 60°C (>45°C derating)
  • Humidity: 0–100%
  • Communication: RV-C / RS485 / TTL / Bluetooth
  • Optional External Modules: Wi-Fi / GPRS
  • Topology: Transformer-Based
• Protection Functions
  • Battery over-voltage/under-voltage protection
  • AC output overload and short-circuit protection
  • AC input over-voltage/under-voltage protection
  • Over-temperature protection
  • Fan lock protection
• Functional Features
  • N-G bonding
  • Remote ON/OFF
  • Programmable relay output
  • Voltage-drop compensation
  • Lead-acid battery temperature compensation
