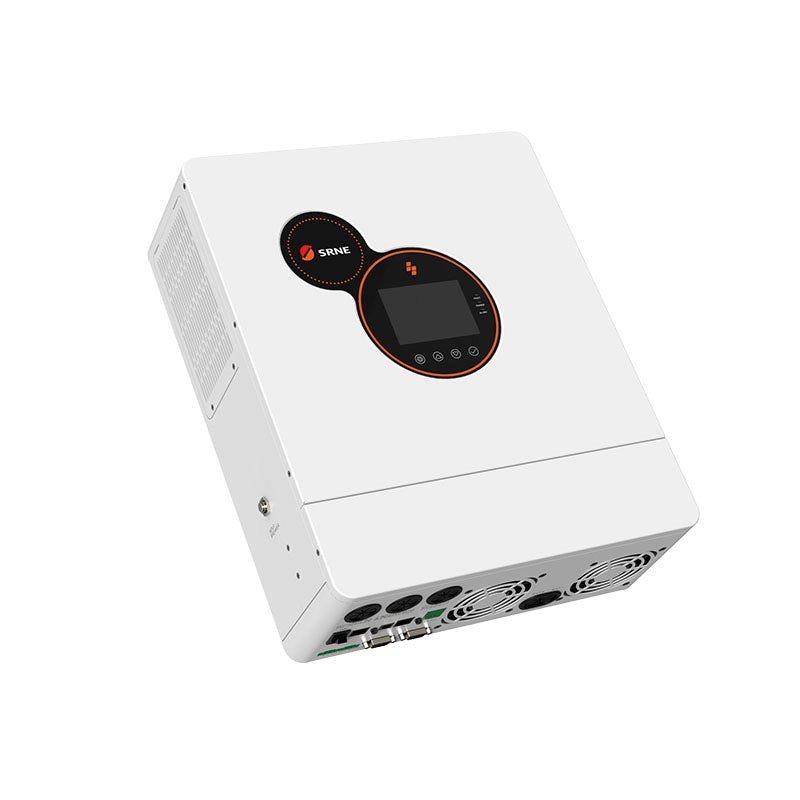

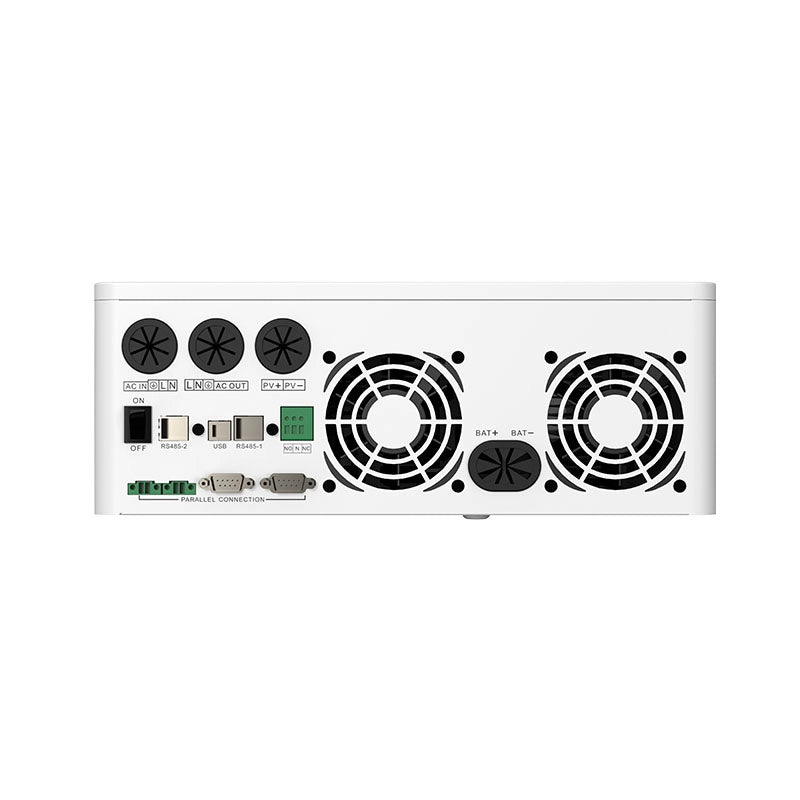

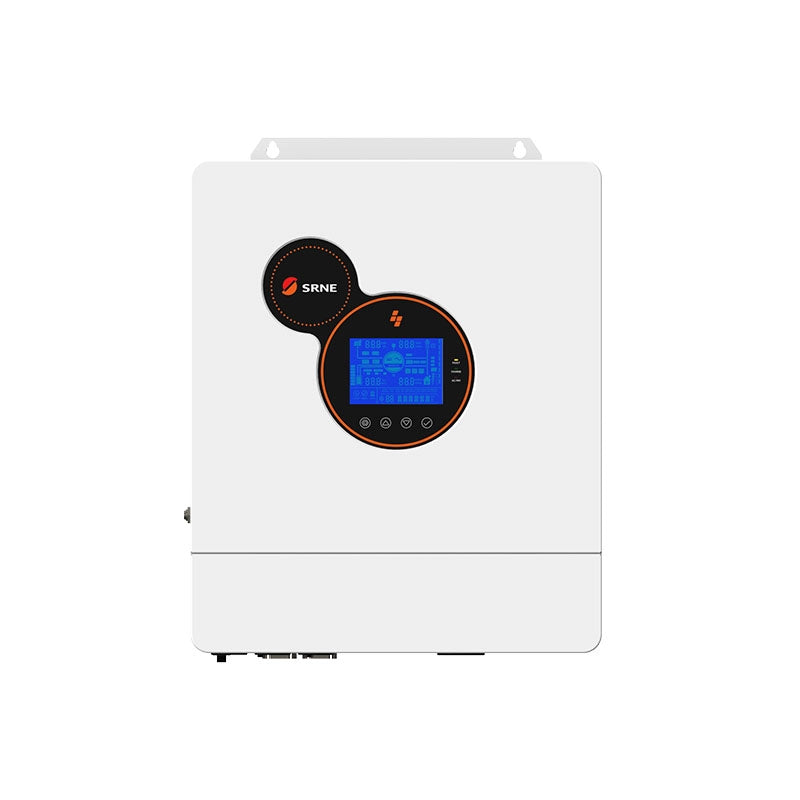

SRNE 5KW 48V Off Grid Inverter

SRNE 5KW 48V Off Grid Inverter

Features:

Efficient

• Advanced MPPT technology with up to 99.9% efficiency
• Up to 22A PV input current for high power PV module

User-friendly

• Industrial design with a modern aesthetic look
•  Easy to install and simple to use

 All-in-one

• Solar charge controller up to 100A charging current
• Support for Li-ion battery BMS communication


Reliable

• Outputs high quality pure sine wave AC power
• Up to 6units in parallel connection meet the needs

 Safety

• 360degrees of security from hardware to software
• IEC safety approvals

Intelligent

• Exclusive Li-ion battery BMS dual activation
•  Time-slot function to save cost with peak-valley tariff

Specifications:

INVERTER OUTPUT:

• Rated Output Power: 5,000W
• Max.Peak Power: 10,000VA
• Rated Output Voltage: 230Vac（L/N/PE single-phase）
• Load Capacity of Motors: 4HP
• Rated AC Frequency: 50/60Hz
• Waveform: Pure sine wave
• Switch Time: 10ms（typical）
• Parallel Capacity: 1-6 units（single/three phase）

BATTERY:

• Battery Type: Li-ion / Lead-acid / user-define
• Rated Battery Voltage: 48Vdc
• Voltage Range : 40～60Vdc
• Max.MPPT Charging Current: 100A
• Max.Mains/Generator Charging Current: 60A
• Max.Hybrid Charging Current: 100A

PV INPUT:

• Num. of MPP Trackers: 1
• Max.PV array power: 5,500W
• Max.input current: 22A
• Max.Voltage of Open Circuit: 500Vdc
• MPPT Voltage Range: 125～450Vdc

MAINS / GENERATOR INPUT:

• Input Voltage Range: 90～280Vac
• Frequency Range: 50/60Hz
• Bypass Overload Current: 40A

GENERAL:

• Dimensions: 446.9*350*133mm
• Weight: 13kg
• Protection Degree: IP20，indoor only
• Operating Temperature Range: -15~55℃
• Noise: <60dB
• Cooling Method: Intelligent fan
• Warranty: 2 years
