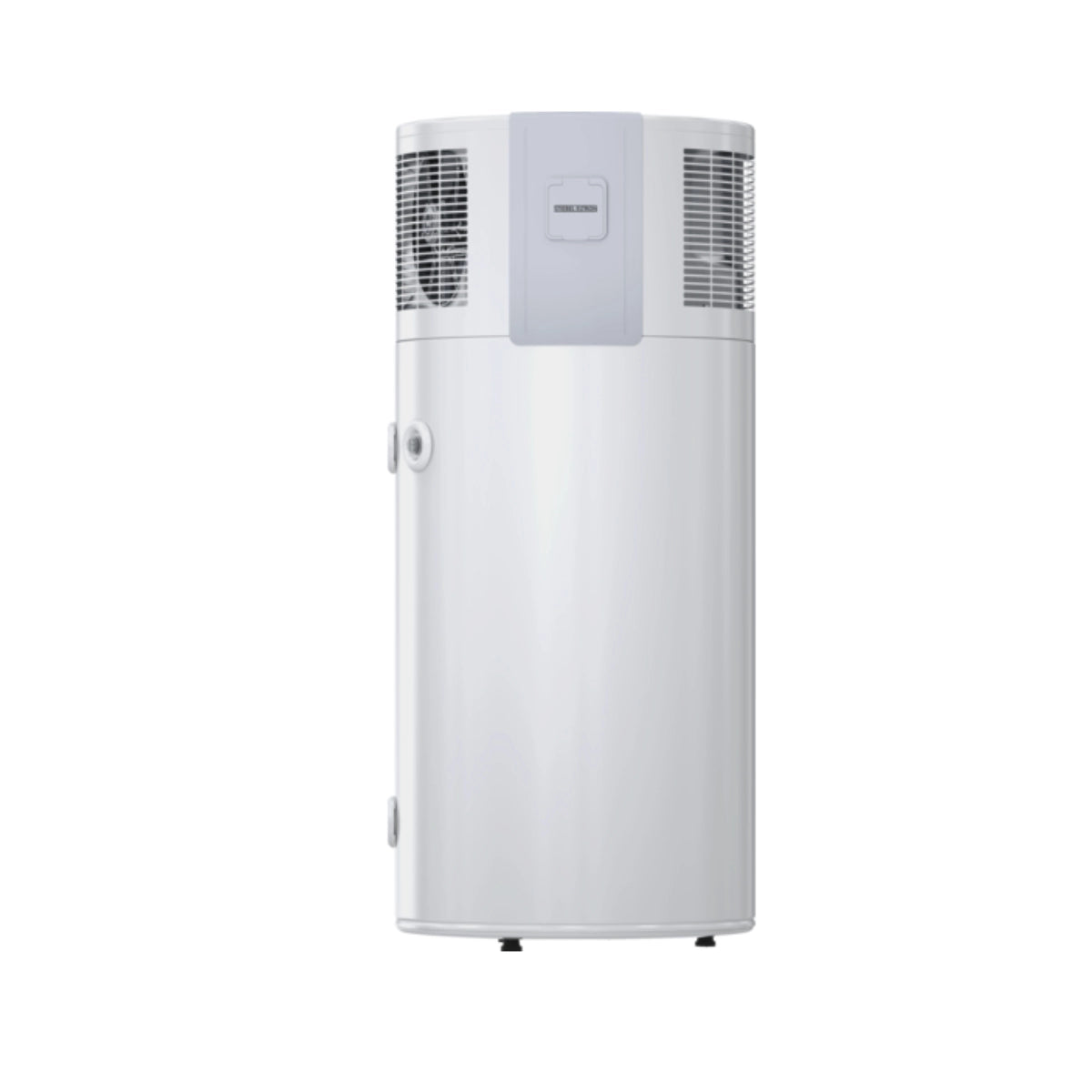

Stiebel Eltron 200L Heat Pump WWK 224
Become more self-sufficient with this outdoor DHW heat pump, designed to deliver reliable hot water with minimal energy consumption. By using renewable environmental heat and integrating seamlessly with photovoltaic systems, it offers an efficient and sustainable solution for everyday hot water needs. Its 220 L cylinder ensures consistent availability of hot water for baths, showers, or multiple draw-off points, while advanced insulation and quiet operation provide both comfort and savings.
Product Features:
- Outdoor DHW Heat Pump – Compact design suitable for recirculation air mode.
- Hygienic hot water up to 65 °C in efficient heat pump mode.
- 220 L Nominal Capacity for high DHW convenience.
- Uses renewable environmental heat for energy-efficient water heating.
- Photovoltaic-ready – integrates easily with solar PV systems.

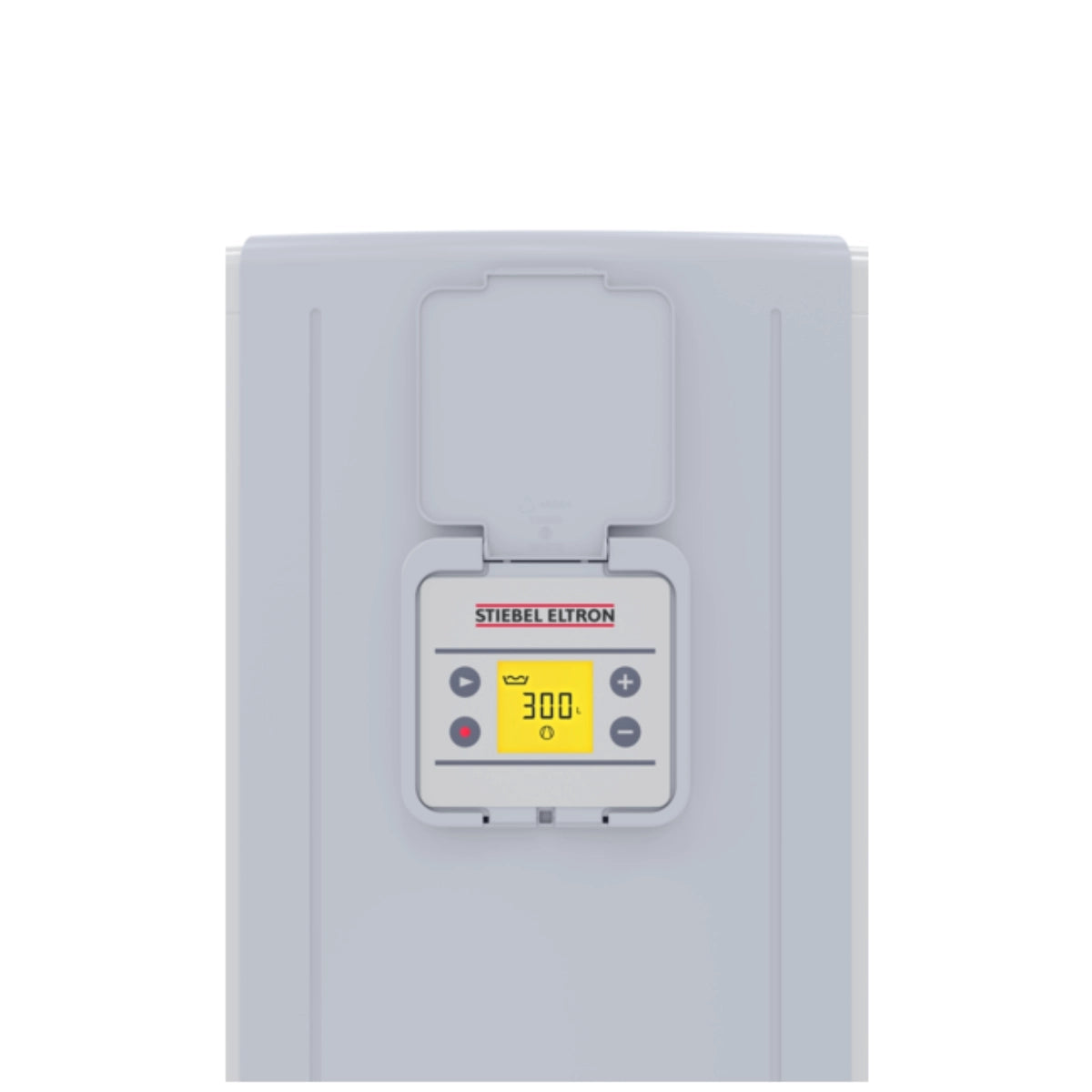

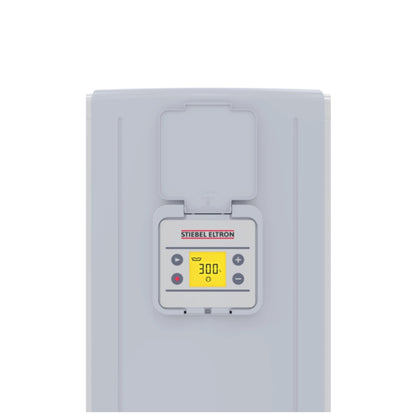

- LCD Display for easy operation and hot water availability at a glance.
- Extremely quiet operation thanks to advanced acoustic separation.
- Maintenance-free impressed current anode for reliability and cost savings.
- Durable roll-bond heat exchanger ensures long service life and consistent efficiency.
- Suitable for outdoor installation across a wide range of ambient temperatures.
PRODUCT SPECIFICATIONS
PRODUCT SPECIFICATIONS
- Part No.: 203870
- Energy Efficiency Class (DHW heating, indoor air): A+
- Nominal Load Profile (EN 16147): L
- COP (EN 16147 / A20): 2.92
- Maximum Available Nominal Amount of DHW at 40 °C (EN - 16147 / A20): 322 L
- Height x Diameter: 1501 × 690 mm
- Weight: 120 kg
- Nominal Capacity: 220 L
- Power Supply: 1/N/PE, 220–240 V, 50/60 Hz
- Average Sound Pressure Level at 1 m (Free Field): 45 dB(A)
- Sound Power Level (EN 12102): 56 dB(A)
- Application Limits (Heat Source for Heat Pump Operation): -5 °C to +42 °C
- Maximum DHW Temperature (Heat Pump Mode): 65 °C
- Safety Valve Connection: Rp 3/4
