Sungrow

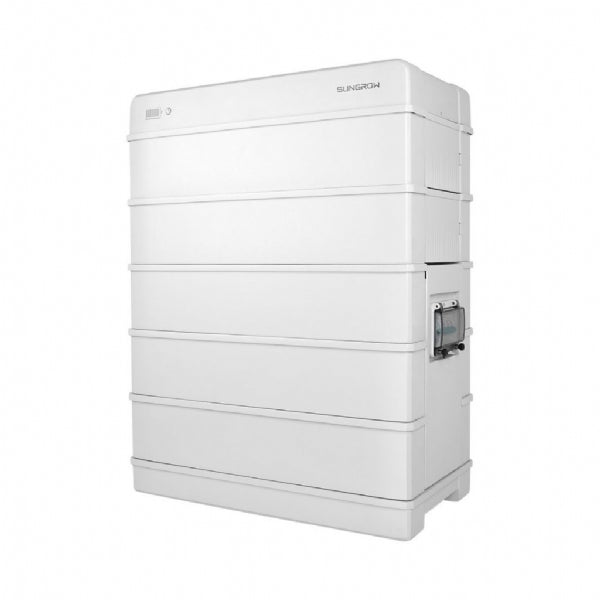

Sungrow 16.0 kWh Battery Package (Includes Accessories)
Sungrow 16.0 kWh Battery Package (Includes Accessories)
Couldn't load pickup availability
Sungrow 16.0 kWh Battery Package (Includes Accessories)
High Performance
- Up to 30A continuous charging and discharging current with high efficiency
- Up to 100% usable energy
Safety
- Lithium iron phosphate Battery
- Multi-stages protection design and extensive safety certification
Flexibility
- Extendable during lifetime
- Support 3-8 modules per unit, max. 4 units in parallel, 9–100 kWh capacity range
Easy Installation
- Compact and light, single person installation
- Plug and play, no cables needed between battery modules
Product Specifications:
| Battery Type | LiFePO4 Prismatic Cell |
| Battery Module | 3.2 kWh, 33 kg/Module |
| Energy (useable) 1 | 16 kWh |
| Nominal Voltage | 320 V |
| Rated DC Power | 9.6 kW |
| Operating Power | 250 - 365 V |
| Max. charging/discharging current: continuous |
30 A |
| Depth of discharge | Max. 100 % DOD (settable) |
| Short circuit current | 3500 A |
| Display | SOC indicator, Status indicator |
| Communication interface | CAN |
PROTECTION |
|
| Over / under voltage protection | Yes |
| Over current protection | Yes |
| Over/under temperature protection | Yes |
| DC breaker | Yes |
GENERAL DATA |
|
| Dimensions (W*H*D) | 625*805*330 mm |
| Weight | 180 kg |
| Installation location | Indoor / Outdoor |
| Mounting method | Floor stand |
| Operating ambient temperature range | Charge: 0 to 50 ℃ Discharge: -20 to 50 ℃ |
| Degree of protection | IP55 |
| Allowable relative humidity range | 0% to 95% no condensing |
| Max. operating altitude | Max. 4000 m |
| Cooling method | Natural convection |
| Certificates | CE, CEC, IEC 62619, IEC 62040, UN38.3, VDE 2510-50 |
| Warranty 2 | 10 Years |
Sungrow Battery Data Sheet.
Important
Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and installation requirements.
This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Crystal Communications and its Supplier will not be held liable for any product malfunctions as a result of incorrectly installed systems.
Technical specifications and general features are provided on our website, however, as individual needs and requirements may differ, it is recommended that our sales team is contacted for any specific questions before a purchase is made to ensure that the item being purchased will satisfy your requirements.
The images shown are for illustration purposes only and may not be an exact
representation of the product.
