• Sungrow 25kW 3P Hybrid Inverter for residential solar energy systems
1 1

Sungrow

Sungrow 25KW 3P Hybrid Inverter

Sungrow 25KW 3P Hybrid Inverter

R 50,854.00
R 50,854.00
Sale Sold out
Tax included. Shipping calculated at checkout.

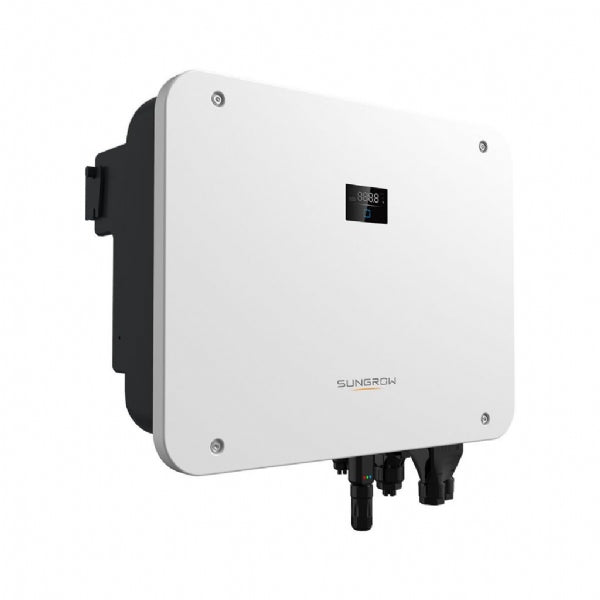

Sungrow 25KW 3P Hybrid Inverter

Sungrow offers one of the broadest portfolios of residential inverters currently on the market, ranging from 2kW to 30kW, suitable for mainstream residential rooftops in various countries.

Product Features:

  • FLEXIBLE APPLICATION

  1. 100~700V wide battery voltage range
  2. Supports parallel connection with master-slave control
  3. Provides 100% power to unbalance loads in backup and grid-tied mode

  • ENERGY INDEPENDENCE

  1. Seamless transition to backup mode for protection against power outages
  2. 50A fast charging / discharging for higher consumption
  3. Support each-phase export power control

  • SMART MANAGEMENT

  1. High self-consumption with optimized built-in EMS
  2. Free online monitoring to enhance energy management
  3. Remote firmware update and customizable settings

  • EASY INSTALLATION

  1. Whole home backup available
  2. Unique push-in connectors for time-saving installation
  3. Extra quiet for residential installation

PRODUCT SPECIFICATIONS

- Recommended max. PV input power - 50kW
- Max. PV input voltage - 1000V
- Min. PV input voltage / Startup input voltage - 150V / 180V
- Rated PV input voltage - 600V
- MPP voltage range - 150V - 950V
- No. of independent MPP inputs - 3
- No. of PV strings per MPPT - 2 /2/ 1
- Max. PV input current - 80A (32A/32A/16A)
- Max. DC short-circuit current - 100A (40A/40A/20A)
- Max. current for input connector - 30A
- Battery voltage - 100V - 700V
- Max charge / discharge current - 50A / 50A
- Max charge / discharge power - 30000 W / 25000 W
- Max. AC input power - 25kW
- Max. AC power from grid - 43000 W / 43000 VA( 25℃ )
- Rated AC output power - 25kW
- Rated AC output current - 36.3 A
- AC voltage range - 270 V - 480 V
