Sungrow

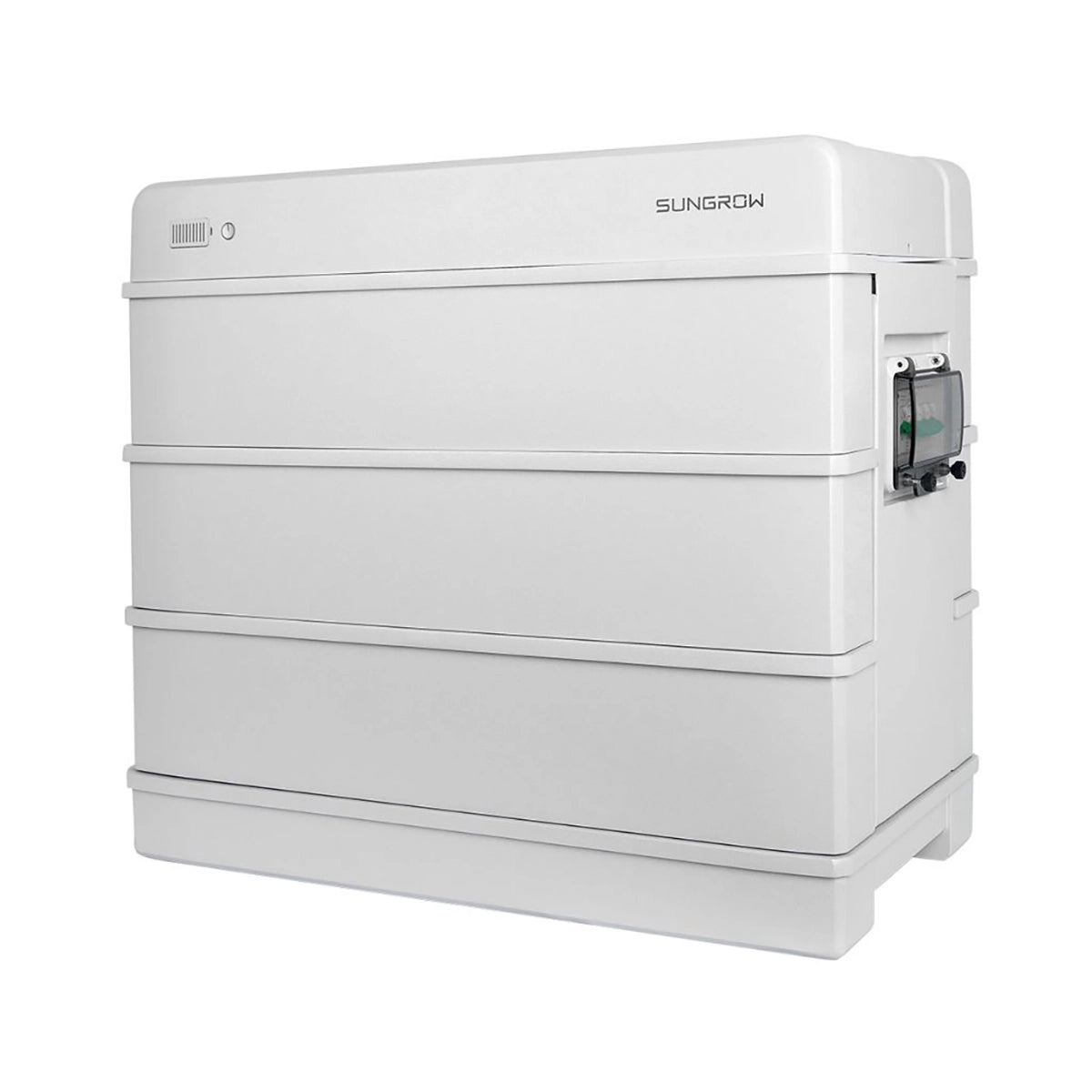

Sungrow 9.6kwh Battery Package (Includes Accessories)

Sungrow 9.6kwh Battery Package (Includes Accessories)

R 41,909.00 ZAR
R 41,909.00 ZAR
Sale Sold out
Tax included. Shipping calculated at checkout.

Sungrow 9.6kwh Battery Package (Includes Accessories)

High Performance

  • Up to 30A continuous charging and discharging current with high efficiency
  • Up to 100% usable energy

Safety

  • Lithium iron phosphate Battery
  • Multi-stages protection design and extensive safety certification

Flexibility

  • Extendable during lifetime
  • Support 3-8 modules per unit, max. 4 units in parallel, 9–100 kWh capacity range

Easy Installation

  • Compact and light, single person installation
  • Plug and play, no cables needed between battery modules

Product Specifications:

Battery Type LiFePO4 Prismatic Cell
Battery Module 3.2 kWh, 33 kg
Energy (useable) 1 9.6 kWh
Nominal Voltage 192 V
Rated DC Power 5.76 kW
Operating Power 150 - 219 V
Max. charging/discharging current:
continuous		 30 A
Depth of discharge Max. 100 % DOD (settable)
Short circuit current 3500 A
Display SOC indicator, Status indicator
Communication interface CAN

PROTECTION
Over / under voltage protection Yes
Over current protection Yes
Over/under temperature protection Yes
DC breaker Yes

GENERAL DATA
Dimensions (W*H*D) 625*545*330 mm
Weight 114 kg
Installation location Indoor / Outdoor
Mounting method Floor stand
Operating ambient temperature range Charge: 0 to 50 ℃
Discharge: -20 to 50 ℃
Degree of protection IP55
Allowable relative humidity range 0% to 95% no condensing
Max. operating altitude Max. 4000 m
Cooling method Natural convection
Certificates CE, CEC, IEC 62619, IEC 62040, UN38.3, VDE 2510-50
Warranty 2 10 Years



Sungrow Battery Data Sheet.
