Sunsynk 10.24kWh 51.2V 200Ah IP65 Battery (NEW)

Sunsynk 10.24kWh 51.2V 200Ah IP65 Battery (NEW)

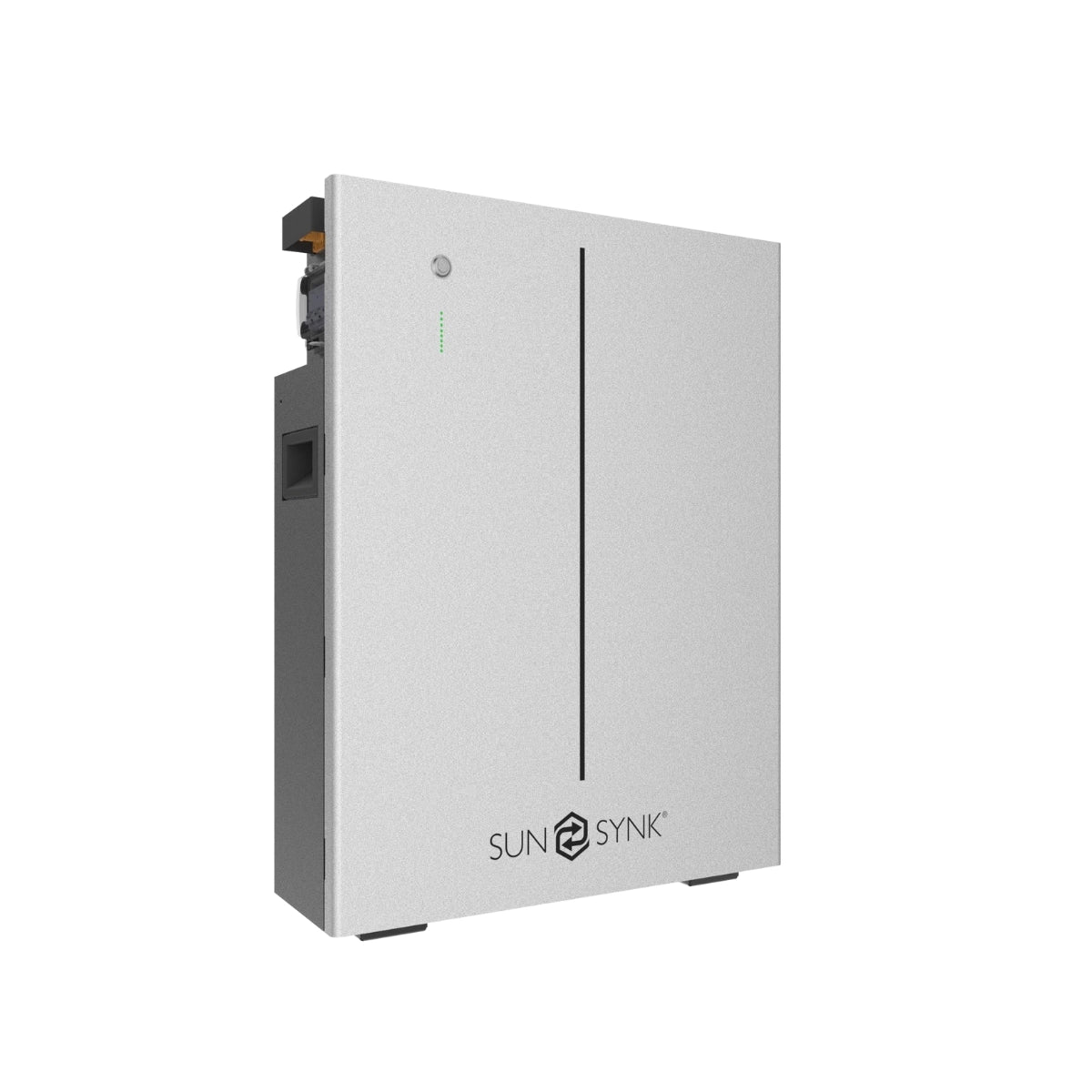

The Sunsynk 10.24kW battery is a high-capacity wall-mounted lithium iron phosphate (LiFePO₄) energy storage solution ideal for residential, commercial, or off-grid applications. Designed with advanced safety features and robust scalability, this smart battery integrates with Sunsynk inverters and provides long-term reliability, excellent energy efficiency, and comprehensive protection through its built-in BMS.

Product Features

• Wall-mounted design for space-saving installation
• Advanced LiFePO₄ chemistry ensures high safety and long lifespan
• Smart BMS with real-time monitoring and protection
• High usable energy capacity for extended backup power
• Supports parallel connection of up to 32 units (327kWh total)
• IP65-rated enclosure for excellent dust and water resistance
• LED indicators and audible alerts for status monitoring
• Seamless integration with Sunsynk systems via CAN2.0 and RS485


Specifications:

• Battery Chemistry: LiFePO₄
• Nominal Capacity: 200Ah
• Nominal Voltage: 51.2V
• Operating Voltage: 44.8V – 57.6V
• Total Energy: 10.24kWh
• Usable Energy: 9.21kWh
• Recommended Charge/Discharge Current: 100A
• Maximum Charge/Discharge Current: 200A
• Peak Discharge Current (2 mins @ 25°C): 200A
• Depth of Discharge (Recommended): 80%
• Cycle Life: ≥6000 cycles (25°C, 90% DOD, 70% EOL)
• Installation Type: Wall-mounted (supports 19-inch cabinet)
• Enclosure Rating: IP65
• Dimensions (W × H × D): 610 × 760 × 200 mm
• Weight: 101kg
• LED Indicators:
  • 5 LEDs for State of Charge (20%–100%)
  • 2 LEDs for working/protection status
  • Beeper for alerts
• Communication Ports: CAN2.0, RS485
• Operating Temperature:
  • Charging: 0°C to +55°C
  • Discharging: -20°C to +55°C
• Storage Temperature: 0°C to +35°C
• Humidity: 5% – 95%
• Altitude Limit: ≤2000m
• Warranty: 5 years or 16MWh throughput (whichever comes first)
• Certification: UN38.3
