Sunsynk

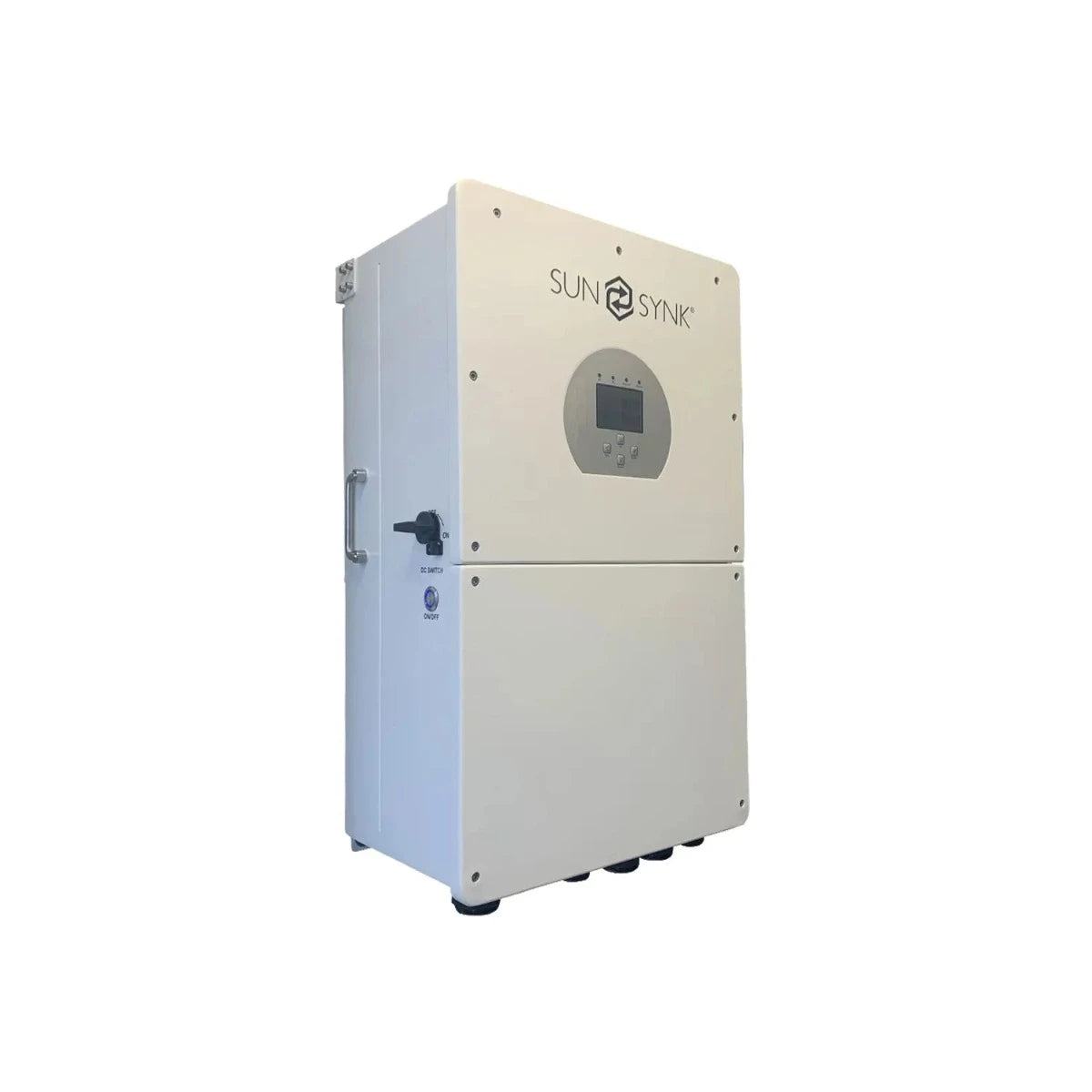

Sunsynk 16kW, 48Vdc Single Phase Hybrid Inverter

Sunsynk 16kW, 48Vdc Single Phase Hybrid Inverter

R 36,673.00
R 36,673.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Sunsynk 16kW, 48Vdc Single Phase Hybrid Inverter with WIFI included.

The Sunsynk 16kW MAX 48V Single Phase Hybrid Inverter with built-in WiFi is a high-performance, low-voltage power management solution designed for residential and light commercial installations. Built to operate in on-grid, off-grid, backup, and self-consumption systems, it intelligently manages energy from solar panels, batteries, the utility grid, and generators.

Product Features:

  • INTERACTIVE

    • Supporting Wi-Fi or GSM monitoring
    • Visual power flow screen
    • Parallel / multi-invert function grid-tied and off-grid

  • COMPATIBLE

    • Compatible with main electrical grid voltages or power generators
    • Self-consumption and feed-in to the grid
    • Auto restart while AC is recovering
    • Auto earth bond feature (Via a relay

  • CONFIGURABLE

    • Fully programmable controller
    • Programmable supply priority for battery or grid
    • Programmable multiple operation modes: on-grid/off-grid & UPS
    • Configurable battery charging - current/voltage based on the application
    • Configurable AC / solar / generator charger priority by LCD setting

  • SECURE

    • Overload/over-temperature/short-circuit protection
    • Smart battery charger design for optimized battery protection
    • Limiting function was installed to prevent excess power overflow to grid

All new Sunsynk Inverters come with the new data logger.

For firmware updates: ensure that the inverter is on bypass mode and the PV is off. Failure to do this may damage your inverter.

Sunsynk Training Material,  https://www.sunsynk.org/post/training-manuals

PRODUCT SPECIFICATIONS

Battery Input Data
- Battery Type: Lead-acid or Lithium-ion
- Battery Voltage Range: 40~60V
- Max. Charging Current: 290A
- Max. Discharging Current: 290A
- Charging Curve: 3 Stages/Equalisation
- External Temperature Sensor: Yes
- Charging Strategy for Li-Ion Battery: Self-Adaptation to BMS

PV String Input Data
- Max. DC Input Power: 20800W
- Max PV Input Voltage: 500V
- MPPT Range: 150V~425V
- Start-up Voltage: 125V
- PV Input Current: 26A + 26A + 26A
- Max. PV Isc: 44A + 44A + 44A
- No. of MPPT / Strings Per MPPT: 3 / 2+2+2

AC Output Data
- Rated AC Output Apparent Power:: 16000W
- Max. AC Output Apparent Power: 17600VA
- Peak Power (off-grid): 2 times of rated power, 10 S
- AC Output Rated Current: 72.7/69.6A
- Max AC Current: 80/76.5A
- Max Continuous AC Passthrough: 100A
- Power Factor: 0.8 leading to 0.8 lagging
- Output Frequency and Voltage: 50Hz/60Hz;220/230Vac (Single phase)
- Grid Connection Form: L+N+PE
- Total Current Harmonic Distortion (THDi): <3%(of Nominal power)
- DC Current Injection: <0.5% In

Efficiency
- Max.Efficiency: 97.60%
- Euro Efficiency: 96.50%
- MPPT Efficiency: >99%

General Data
- Operating Temperature Range: -40 to +60 °C,45°C Derating
- Cooling: Intelligent Air Cooling
- Noise: <50dB
- Communication with BMS: RS485; CAN
- Weight: 52kg
- Size: 464W x 763H x 282D mm (Excluding connectors and brackets)
- Protection Degree: IP65
- Installation Style: Wall-mounted
- Warranty: 5 years

IMPORTANT NOTICE

Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and
installation requirements.

This product must be installed by a qualified electrician/technician. All installations must adhere to
local wiring regulations and standards. Crystal Communications and its Supplier will not be held
liable for any product malfunctions as a result of incorrectly installed systems.

Technical specifications and general features are provided on our website, however, as individual
needs and requirements may differ, it is recommended that our sales team is contacted for any
specific questions before a purchase is made to ensure that the item being purchased will satisfy
your requirements.

The images shown are for illustration purposes only and may not be an exact
representation of the product.

Crystal Communications (Pty) Ltd may not have all the specific items or quantities of stock you have
requested. Our dedicated Customer Service Team will use our extensive network to try to source the
stock for you ASAP. You will be notified within 24 hours if we cannot source the required item, and a
full refund will be processed on your order. Should you wish to contact us directly, please call
