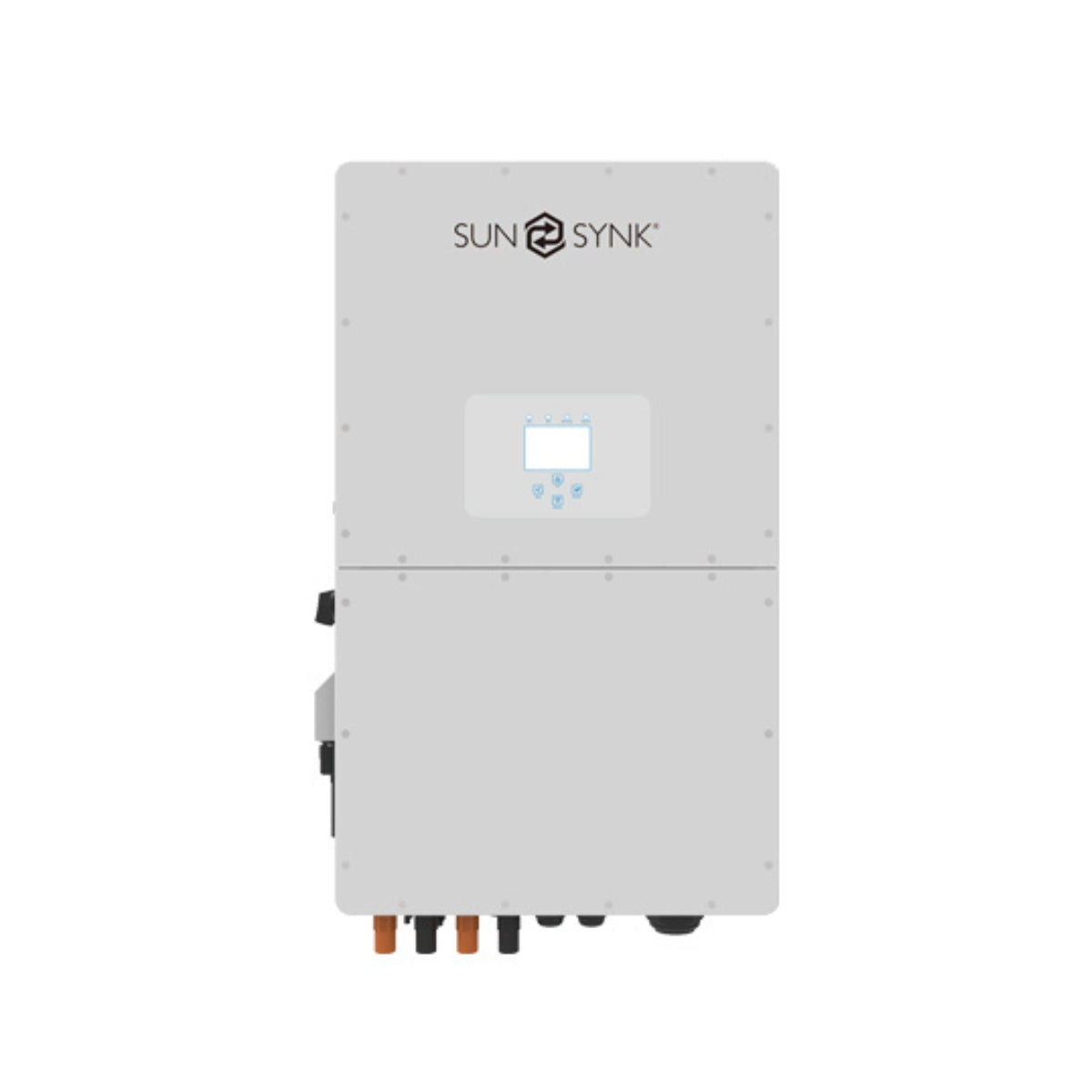

Sunsynk 30kW G02 Version 2 High Voltage Three Phase Hybrid Inverter

Sunsynk 30kW G02 Version 2 High Voltage Three Phase Hybrid Inverter

R 58,672.00
R 66,323.00 R 58,672.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Sunsynk 30kW G02 Version 2 High Voltage Three Phase Hybrid Inverter

Engineered for maximum energy yield and system versatility, this advanced inverter is the ultimate solution for modern residential and light commercial solar setups. Featuring three independent MPPT trackers, it gives you unprecedented flexibility in configuring your PV arrays—making complex roof layouts and partial shading easy to manage.

Product Features:

  • Three MPPT trackers giving allowance to flexible PV array configurations.
  • Max PV input upgraded to allow DC oversizing up to 60% more than the rated AC power.
  • Unit can be operated without batteries (using PV and grid power).
  • Improved inverter efficiency to 98.5%.
  • Supports Wi-Fi remote monitoring as standard.
  • Type II DC/AC SPD as standard.
  • Overload, over temperature and short circuit protection as standard.

PRODUCT SPECIFICATIONS

- Weight: 46 kg
- Rated Power: 30,000 W
- Min PPT Voltage: 150 V
- Max PPT Voltage: 850 V
- DC Startup Voltage: 180 V
- DC Shutdown Voltage: 150 V
- Max Input Voltage: 1,000 V
- Max DC Power: 39,000 W
- Max AC Power (5 Minutes): 30,000 W
- Surge AC Power (1 Second): 45,000 W
- Max DC Current: 108 A
- Max DC Inputs: 6
- Has DC Fuses: 0
- Connector: MC4
- Included Connectors: 0
- Euro Efficiency: 99.9 %
- Transformer: None
- MPPT Quantity : 3
- Has Integrated DC Switch: Yes
- Warranty: 5 years

IMPORTANT NOTICE

Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and
installation requirements.

This product must be installed by a qualified electrician/technician. All installations must adhere to
local wiring regulations and standards. Crystal Communications and its Supplier will not be held
liable for any product malfunctions as a result of incorrectly installed systems.

Technical specifications and general features are provided on our website, however, as individual
needs and requirements may differ, it is recommended that our sales team is contacted for any
specific questions before a purchase is made to ensure that the item being purchased will satisfy
your requirements.

The images shown are for illustration purposes only and may not be an exact
representation of the product.

Crystal Communications (Pty) Ltd may not have all the specific items or quantities of stock you have
requested. Our dedicated Customer Service Team will use our extensive network to try to source the
stock for you ASAP. You will be notified within 24 hours if we cannot source the required item, and a
full refund will be processed on your order. Should you wish to contact us directly, please call
0118670488 or email sales@crystalcom.co.zaPlease ensure that the battery bank's power and storage capacity is sufficient for the inverter and
installation requirements.

This product must be installed by a qualified electrician/technician. All installations must adhere to
local wiring regulations and standards. Crystal Communications and its Supplier will not be held
liable for any product malfunctions as a result of incorrectly installed systems.

Technical specifications and general features are provided on our website, however, as individual
needs and requirements may differ, it is recommended that our sales team is contacted for any
specific questions before a purchase is made to ensure that the item being purchased will satisfy
your requirements.

The images shown are for illustration purposes only and may not be an exact
representation of the product.

Crystal Communications (Pty) Ltd may not have all the specific items or quantities of stock you have
requested. Our dedicated Customer Service Team will use our extensive network to try to source the
stock for you ASAP. You will be notified within 24 hours if we cannot source the required item, and a
full refund will be processed on your order. Should you wish to contact us directly, please call
0118670488 or email sales@crystalcom.co.za

Installations with Sunsynk products now need to be registered to gain full activation of the warranty. https://www.sunsynk.org/warranty

For firmware updates, ensure that the inverter is on bypass mode and the PV is off. Failure to do this may damage your inverter. Please ensure that 12kW Sunsynk 3ph Inverter is updated to the latest firmware version 1096 E013. The update must be done before the system is switched on. This is imperative mainly for parallel or three phase systems to prevent inverter damage and malfunction.
