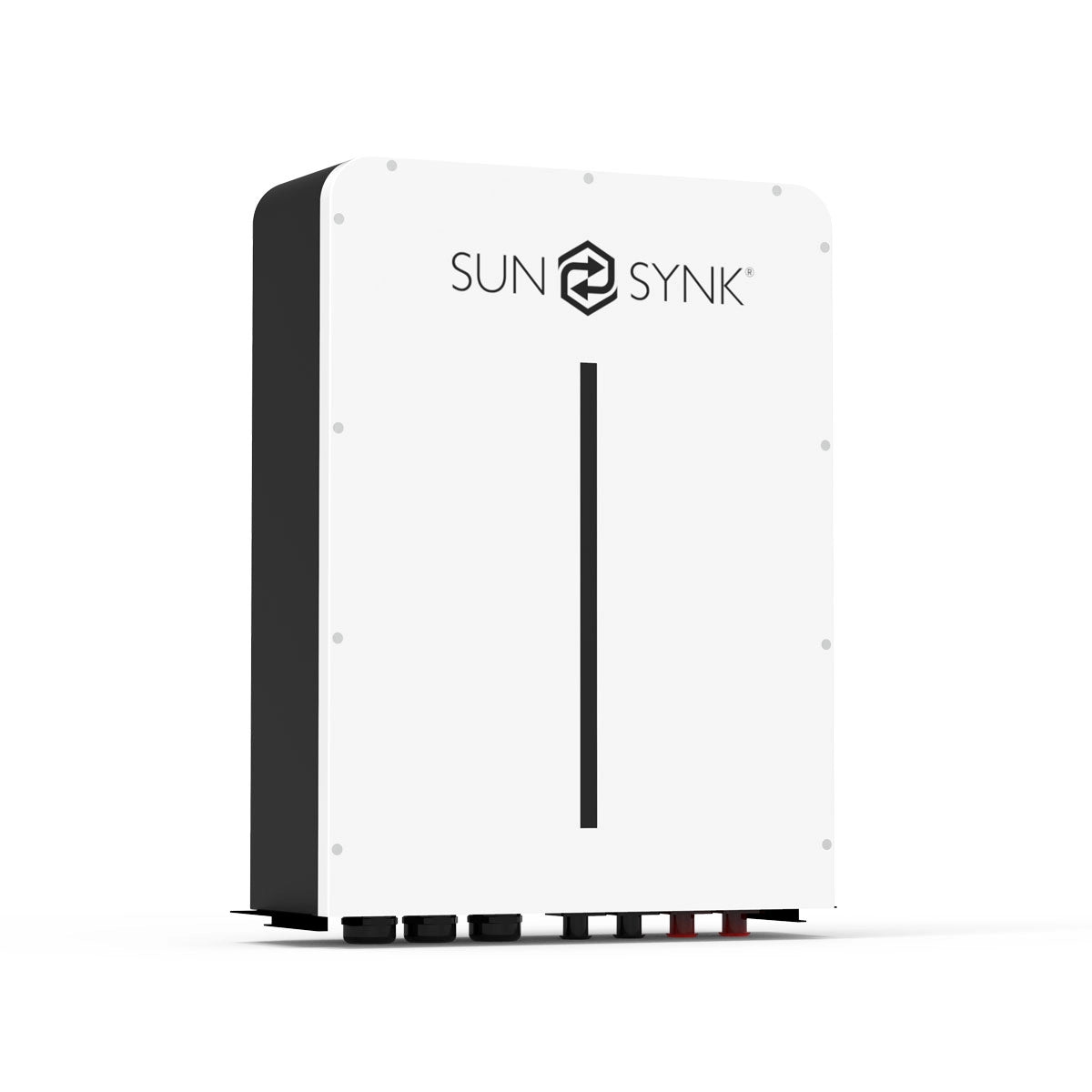

Sunsynk G5.1 5.12kw 51.2V 100Ah Battery (NEW)
Sunsynk G5.1 5.12kw 51.2V 100Ah Battery (NEW)
Couldn't load pickup availability
Sunsynk G5.1 5.12kw 51.2V 100Ah Battery (NEW)
The SUNSYNK-G5.1 is a high-performance lithium iron phosphate (LiFePO₄) battery designed for efficient energy storage in residential and commercial systems. Engineered for safety, scalability, and longevity, it integrates a smart BMS (Battery Management System) for optimal performance and is compatible with SUNSYNK inverters. Ideal for space-constrained environments, it delivers reliable backup power with minimal maintenance.
Product Features
- Wall-mounted design for quick and easy installation (support 19-inch standard cabinet)
- High safety LiFePO₄ chemistry with long cycle life
- Built-in intelligent BMS with comprehensive protection
- Parallel configuration up to 32 units (163.8kWh total)
- Remote upgrade capability (SUNSYNK inverter compatible)
- Eco-friendly and non-toxic materials
- Wide operating temperature range with natural cooling
- LED indicators for SOC, working, alarm, and protection statuses
PRODUCT SPECIFICATIONS
PRODUCT SPECIFICATIONS
- Battery Chemistry: LiFePO₄
- Nominal Capacity: 100Ah
- Nominal Voltage: 51.2V
- Operating Voltage Range: 44.8V – 57.6V
- Energy Capacity: 5.12kWh
- Usable Energy: 4.61kWh
- Recommended Charge/Discharge Current: 50A
- Maximum Charge/Discharge Current: 100A
- Peak Current (2 mins @ 25°C): 150A
- Recommended Depth of Discharge (DOD): 80%
- Cycle Life: ≥6000 cycles (80% DOD @ 25°C, 70% EOL)
-Dimensions (W × H × D): 440 × 600 × 133 mm
- Weight: 44kg
- Installation Type: Wall-mounted (supports 19-inch standard cabinet)
- Enclosure Protection Rating: IP20
Operating Temperature:
- Charging: 0°C to +55°C
- Discharging: -20°C to +55°C
Storage Temperature: -20°C to +35°C
- Humidity Range: 5% – 95%
- Maximum Altitude: ≤2000m
- Communication Ports: CAN2.0, RS485
- Warranty: 5 years or 8MWh throughput (whichever comes first)
- Certifications: UN38.3
