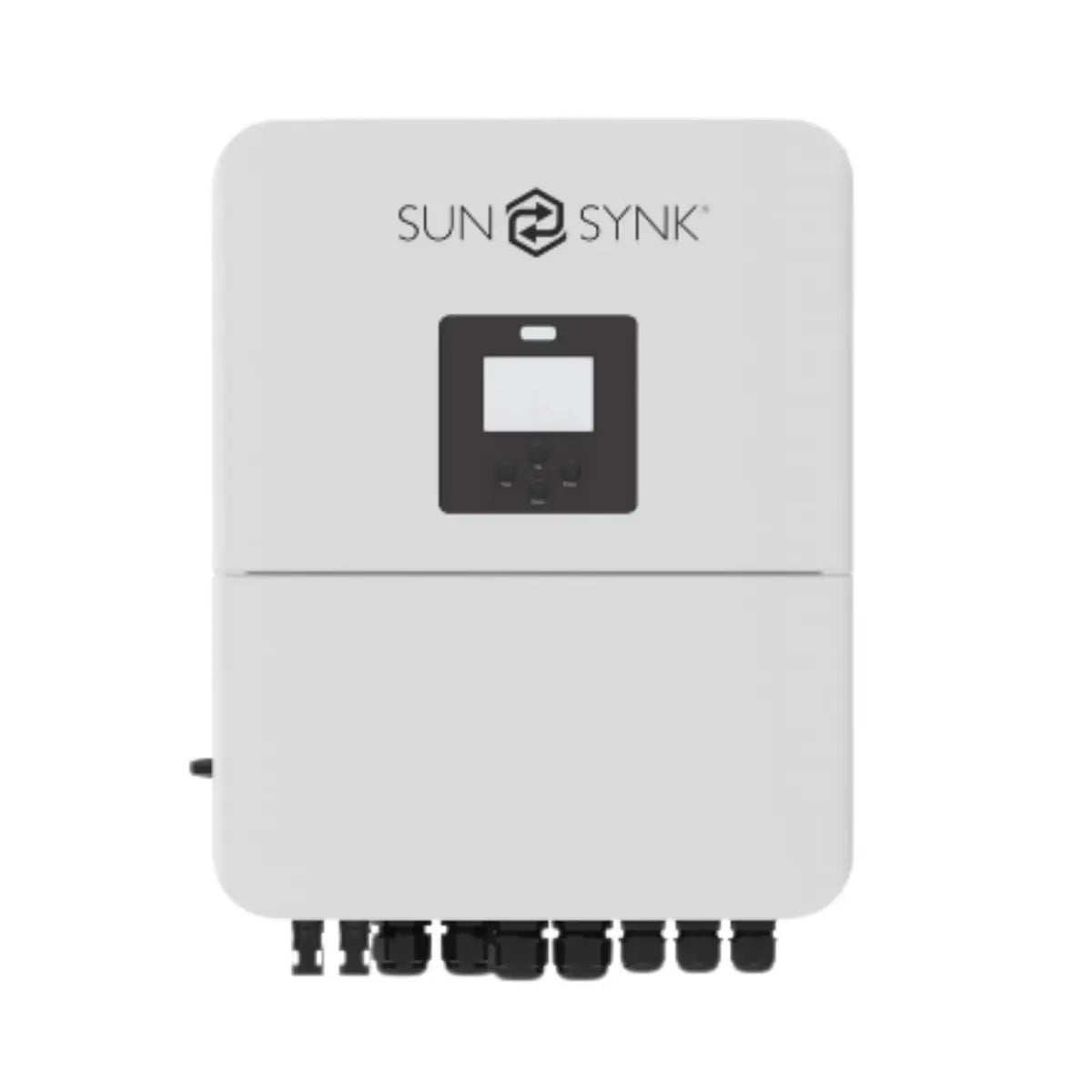

Sunsynk 5K-SG04LP1-EU-SM2 LV Hybrid Compact

- Battery Input Data
- Battery Type: Lead-acid or Lithium-ion
- Battery Voltage Range: 40–60V
- Max. Charging Current: 120A
- Max. Discharging Current: 120A
- Charging Curve: 3 Stages / Equalisation
- Charging Strategy (Li-Ion): Self-adaptation to BMS
- Number of Battery Inputs: Yes

PV String Input Data
- Max. DC Input Power: 6500W
- PV Input Voltage: 370V (125V–500V)
- MPPT Voltage Range: 150–425V
- Start-up Voltage: 125V
- Full Load DC Voltage Range: 300–425V
- PV Input Current: 13A + 13A
- Max. PV Isc: 17A + 17A
- No. of MPPT / Strings per MPPT: 2 / (1+1)

AC Output Data
- Rated AC Output & UPS Power: 5000W
- Max. AC Output Power: 5500W
- Peak Power (Off-grid): 2 × rated power (10s)
- Rated AC Output Current: 22.7 / 21.7A
- Max. AC Current: 25 / 23.9A
- Max. Continuous AC Passthrough: 35A
- Rated Input/Output Voltage Range: 220V / 230V (0.85Un–1.1Un)
- Grid Connection Form: L + N + PE
- Rated Grid Frequency / Range: 50Hz (45–55Hz) / 60Hz (55–65Hz)
- Power Factor Range: 0.8 leading to 0.8 lagging
- Total Current Harmonic Distortion (THDi): <3%
- DC Current Injection: <0.5% In

Efficiency
- Max. Efficiency: 97.6%
- Euro Efficiency: 96.5%
- MPPT Efficiency: >99%

Protection
- PV Input Lightning Protection
- Anti-islanding Protection
- PV String Reverse Polarity Protection
- Insulation Resistor Detection
- Residual Current Monitoring Unit
- Output Over Current Protection
- Surge Protection (Type II DC / Type II AC)

Certifications and Standards
- Grid Connection Standard: EN 50549-1, AS-NZS 4777.2, NRS 097-2-1 (additional
connections available on request)
- EMC/Safety Standards: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

General Data
- Operating Temperature Range: -45°C ~ 60°C (>45°C derating)
- Cooling: Natural Cooling
- Noise: <30dB
- Communication with BMS: RS485; CAN
- Weight: 17.5 kg
- Dimensions: 330W × 433H × 238D mm
- Protection Degree: IP65
- Installation Style: Wall-mounted
- Warranty: 5 years

*Installations with Sunsynk products now need to be registered here, (https://www.sunsynk.org/warranty) to gain full activation of the warranty.

Please ensure that you check that the Inverter is updated to the latest firmware version.For firmware updates, ensure that the inverter is on bypass mode and the PV is off. Failure to do this may damage your inverter.

Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and installation requirements.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Crystal Communications and its Supplier will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Technical specifications and general features are provided on our website, however, as individual needs and requirements may differ, it is recommended that our sales team is contacted for any specific questions before a purchase is made to ensure that the item being purchased will satisfy your requirements.

The images shown are for illustration purposes only and may not be an exact representation of the product.
