Sunsynk 8kW, 48Vdc Single Phase Compact Hybrid Inverter (NEW)

Sunsynk 8kW, 48Vdc Single Phase Compact Hybrid Inverter (NEW)

R 21,116.00
R 23,768.00 R 21,116.00
Sale Sold out
Tax included. Shipping calculated at checkout.

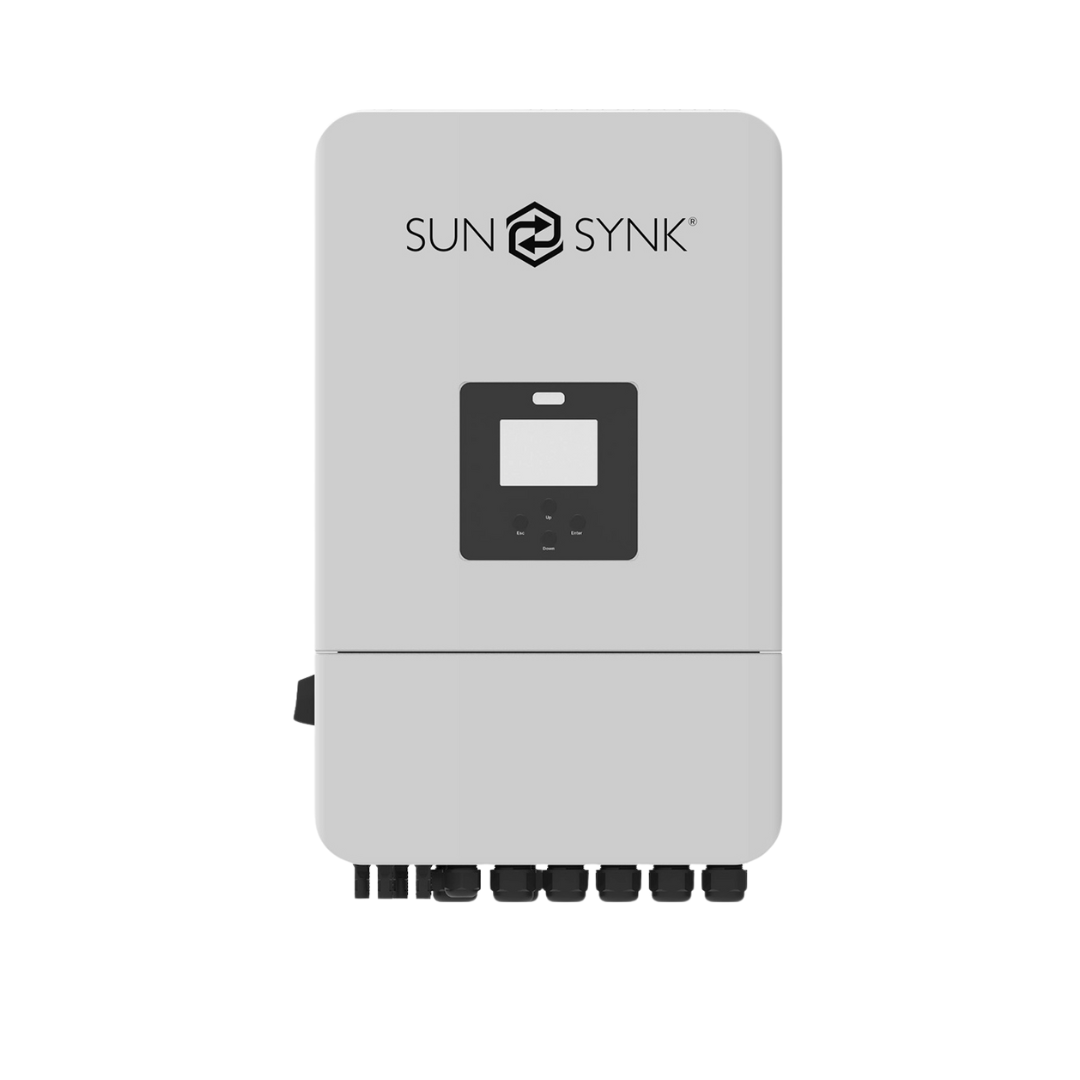

Sunsynk 8kW, 48Vdc Single Phase Compact Hybrid Inverter with WIFI included

The Sunsynk 8kW Compact Hybrid Inverter is a powerful, efficient, and intelligent energy management system designed for seamless integration with solar panels, grid power, and backup generators. It’s ideal for residential or small commercial installations that require optimal control over energy generation and consumption.

Product Features

  • 8kW Rated Power Output
  • 48Vdc Battery System Compatibility – Supports both Lead-Acid and Li-ion batteries.
  • Dual MPPT Design – Ensures efficient solar energy harvesting from two separate PV arrays.
  • Zero Export Function – Prevents feeding power back into the grid (perfect for restricted export regions).
  • Parallel Operation – Connect up to 16 inverters on a single phase for increased capacity.
  • WiFi Monitoring – Built-in Wi-Fi logger and CT (current transformer) included.
  • Essential & Non-Essential Load Outputs – Smart load control for efficient power use.
  • Compact & Lightweight – Weighs only 25.2 kg with a compact design for easy installation.
  • 5-Year Standard Warranty

PRODUCT SPECIFICATIONS

Battery Input:
- Battery Type: Lead-acid or Li-ion
- Battery Voltage Range: 48Vdc (40Vdc ~ 60Vdc)
- Max. Charging/Discharging Current: 190A (DC)
- Charging Strategy for Li-Ion Battery: Self-adaptation to BMS
- Number of Battery Inputs: 1

PV String Input:
- Max. PV Access Power: 16000W
- Max. PV Input Power: 12800W
- Max. PV Input Voltage: 500V
- Start-up Voltage: 125V
- PV Input Voltage Range: 125V–500V
- MPPT Voltage Range: 150V–425V
- Full Load MPPT Voltage Range: 200V–425V
- Rated PV Input Voltage: 370V
- Max. Operating PV Input Current: 26A + 26A
- Max. Input Short-Circuit Current: 34A + 34A
- Number of MPPT Trackers / Number of Strings per Tracker: 2 / 2+2
- Max. Inverter Backfeed Current to the Array: 0

AC Input / Output:
- Rated AC Input/Output Active Power: 8000W
- Max. AC Input/Output Apparent Power: 8800VA
- Peak Power (off-grid): 2 times rated power for 10 seconds
- Rated AC Input/Output Current: 36.4A / 34.8A
- Max. AC Input/Output Current: 40A / 38.3A
- Max. Continuous AC Passthrough (grid to load): 50A
- Max. Output Fault Current: 80A
- Max. Output Overcurrent Protection: 140A
- Rated Input/Output Voltage/Range: 220V/230V, 0.85Un – 1.1Un
- Grid Connection Form: L + N + PE
- Rated Input/Output Grid Frequency/Range: 50Hz / 45Hz–55Hz, 60Hz / 55Hz–65Hz
- Power Factor Adjustment Range: 0.8 leading to 0.8 lagging
- Total Current Harmonic Distortion (THD): <3% (of rated power)
- DC Injection Current: <0.5% In
- Euro Efficiency: 96.50%
- Max Efficiency: 97.60%

General Data:
- Display: LCD + LED
- Communication Interface: RS232, RS485, CAN
- Monitor Mode: GPRS/WiFi/Bluetooth/4G/LAN (optional)
- Operating Temperature Range: -40°C to 60°C, >45°C derating
- Permissible Ambient Humidity: 0–100%
- Permissible Altitude: 2000m
- Noise: <30 dB
- Ingress Protection (IP) Rating: IP65
- Inverter Topology: Non-isolated
- Over Voltage Category: OVC II (DC), OVC III (AC)
- Cabinet Size (WxHxD): 366 x 589.5 x 237mm (excluding connectors and brackets)
- Weight: 25.2kg
- Warranty: 5 years
- Type of Cooling: Smart cooling

IMPORTANT NOTICE

Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and installation requirements.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Crystal Communications and its Supplier will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Technical specifications and general features are provided on our website, however, as individual needs and requirements may differ, it is recommended that our sales team is contacted for any specific questions before a purchase is made to ensure that the item being purchased will satisfy your requirements.

The images shown are for illustration purposes only and may not be an exact representation of the product.

Crystal Communications (Pty) Ltd may not have all the specific items or quantities of stock you have requested. Our dedicated Customer Service Team will use our extensive network to try to source the stock for you ASAP. You will be notified within 24 hours if we cannot source the required item, and a full refund will be processed on your order. Should you wish to contact us directly, please call 0118670488 or email sales@crystalcom.co.za
