SunSynk Acure 8.0kW Single Phase Hybrid Inverter (White)

SunSynk Acure 8.0kW Single Phase Hybrid Inverter (White)

R 26,056.00
R 26,056.00
Sale Sold out
Tax included. Shipping calculated at checkout.

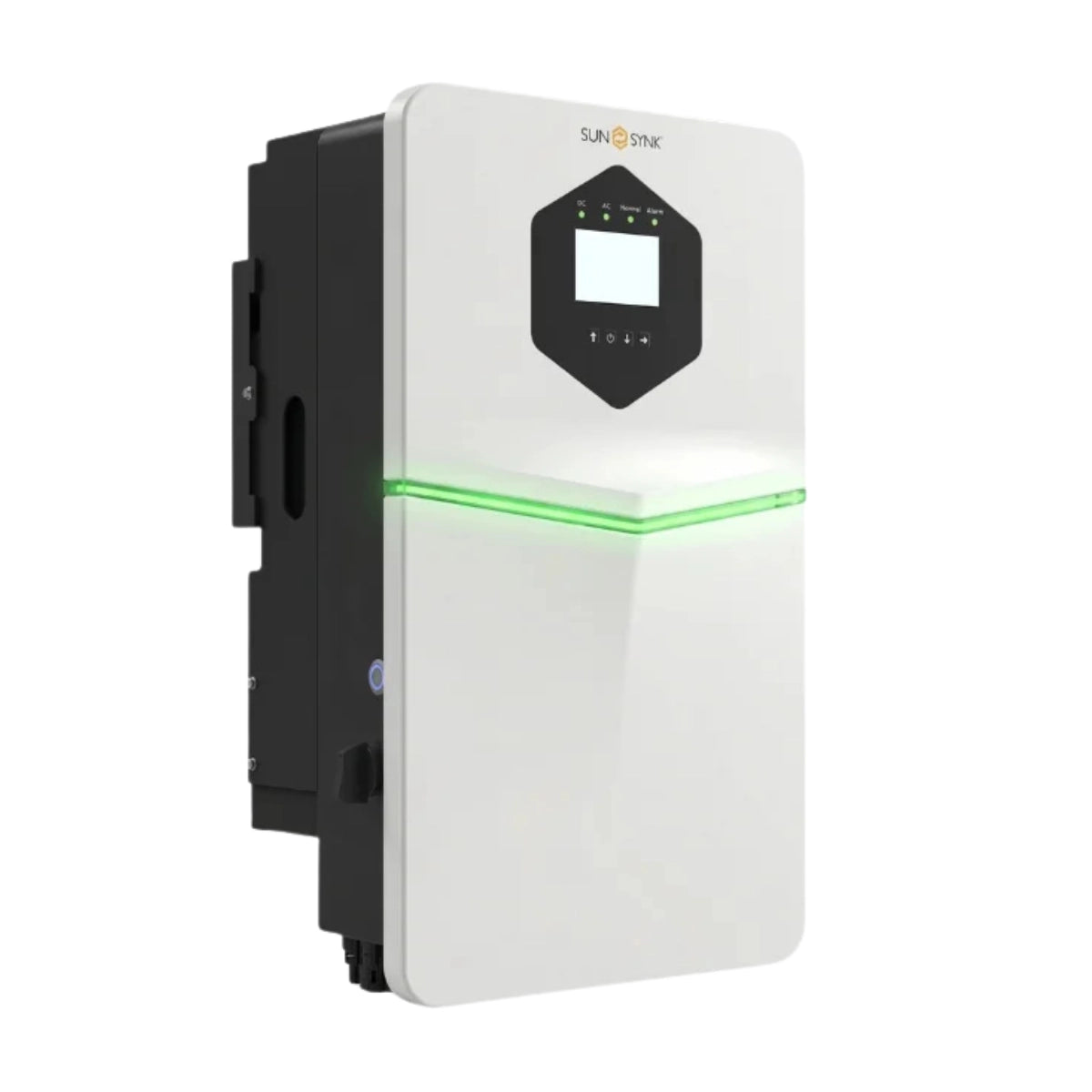

SunSynk Acure 8.0kW Single Phase Hybrid Inverter (White)

Elevate your energy independence with the SunSynk Acure 8.0kW Hybrid Inverter. Engineered for high-performance solar management, this sophisticated unit combines cutting-edge intelligence with user-friendly accessibility to provide a seamless power solution for your home or business. Featuring a sleek white finish and an intuitive, brand-new interface, the Acure is designed to fit perfectly into modern environments while offering professional-grade control.

Product Features

  • Programmable, wireless smart switch (40 Amp switch included.)
  • Max. 10 smart switches supported for Max power optimisation.
  • Wireless CT coil facility.
  • Built-in Bluetooth and Wi-Fi. (no external data logger).
  • Built in LAN connection.
  • Brand new UI enhancing accessibility for users of all levels.
  • Built in Arc fault detection.
  • Built in solar panel theft detection circuits.
  • Has multi-colour LED strip offering real-time insights of the system.
  • Up to 16 units can be connected in parallel.
  • IP65 rated.
  • Intelligent air cooling.
  • 5-year Standard warranty.

PRODUCT SPECIFICATIONS

Battery Input Data
- Battery Type: Lead-acid or Lithium-ion
- Battery Voltage Range: 40-60V
- Max. Charging Current: 190A
- Max. Discharging Current: 190A
- Charging Strategy for Li-ion Battery: Self-adaptation to BMS
- Number of Battery Input: 1

PV String Input Data
- Max. PV Access Power: 16000W
- Max. PV Input Power: 12800W
- Max. PV Input Voltage: 500V
- Start-up Voltage: 125V
- MPPT Voltage Range: 150-425V
- Rated PV Input Voltage: 370V
- Max. Operating PV Input Current: 32+32A
- Max. Input Short-Circuit Current: 48+48A
- No. of MPP Trackers / No. of Strings MPP Tracker: 2/2+2

AC Input/Output Data
- Rated AC Input/Output Active Power: 8000W
- Max. AC Input/Output Apparent Power: 8800VA
- Peak Power (off-grid): 2 times of rated power, 10s
- Rated AC Input/Output Current: 36.4/34.8A
- Max. AC Input/Output Current: 40/38.3A
- Max. Continuous AC Passthrough (Grid to Load): 50A
- Rated Input/Output Voltage: 220V/230V, with an operating range of 0.85Un-1.1Un.
- Grid Connection Form: L+N+PE.
- Rated Input/Output Grid Frequency: 50/45-55Hz and 60/55-65Hz.
- Power Factor Adjustment Range: 0.8 leading to 0.8 lagging.
- Total Current Harmonic Distortion (THDi): <3% (at nominal power).
- DC Injection Current: <0.5% In.

Efficiency, Protection & Interface
- Max. Efficiency: 97.6%
- Euro Efficiency: 96.5%
- MPPT Efficiency: >99%
- Integrated Protection: DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal
Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Overvoltage Load Drop Protection, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional), Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch, DC Terminal Insulation Impedance Monitoring, Residual Current (RCD) Detection, Surge protection level
- Surge Protection Level: TYPE II (DC), TYPE II (AC)
- Display: LCD+LED
- Communication Interface: RS485/RS232/CAN
- Monitor Mode: GPRS/WIFI/Bluetooth/4G/LAN (optional)

IMPORTANT NOTICE

Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and
installation requirements.

This product must be installed by a qualified electrician/technician. All installations must adhere to
local wiring regulations and standards. Crystal Communications and its Supplier will not be held
liable for any product malfunctions as a result of incorrectly installed systems.

Technical specifications and general features are provided on our website, however, as individual
needs and requirements may differ, it is recommended that our sales team is contacted for any
specific questions before a purchase is made to ensure that the item being purchased will satisfy
your requirements.

The images shown are for illustration purposes only and may not be an exact
representation of the product.
