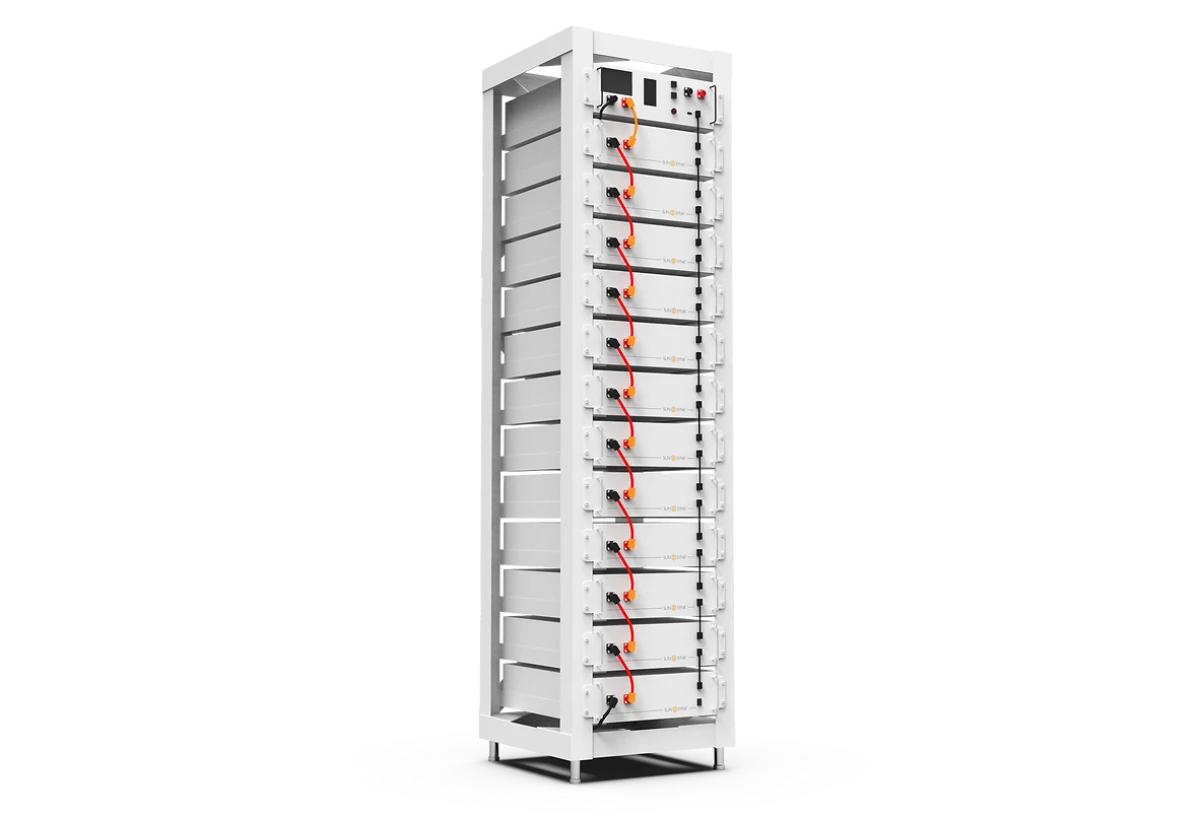

Sunsynk Battery 61.44kWh High Voltage Series

Sunsynk Battery 61.44kWh High Voltage Series

LITHIUM-ION STORAGE SYSTEM - HIGH VOLTAGE SERIES

Technical Data

• Battery System Power (kWh) - 61.44
• Charge/Discharge Rate (Max) - 1C
• Max Charge / Discharge Current (A) - 100
• Module Capacity (Ah) - 100
• Operating Voltage (V) - 538~691
• Operating Temperature Range - Charge: 0~55 ºC / Discharge: -20~55 ºC
• Battery Cell Chemistry - 61.44
• Dimension (W×D×H mm) - 13th level: 589×590×2240
• Total Weight (12 Battery Modules, 1 Rack) (kg) - 628
• Weight of Each Battery Module / Battery Rack (kg) - 44 - 85
• Operating Altitude - ≤2000m
• Relative Humidity Range - 5%~85% (RH)
• Warranty Period - 10 years
• Enclosure IP Rating - IP20
• Certifications - EN/IEC 61000-6, IEC62619, UN38.3
