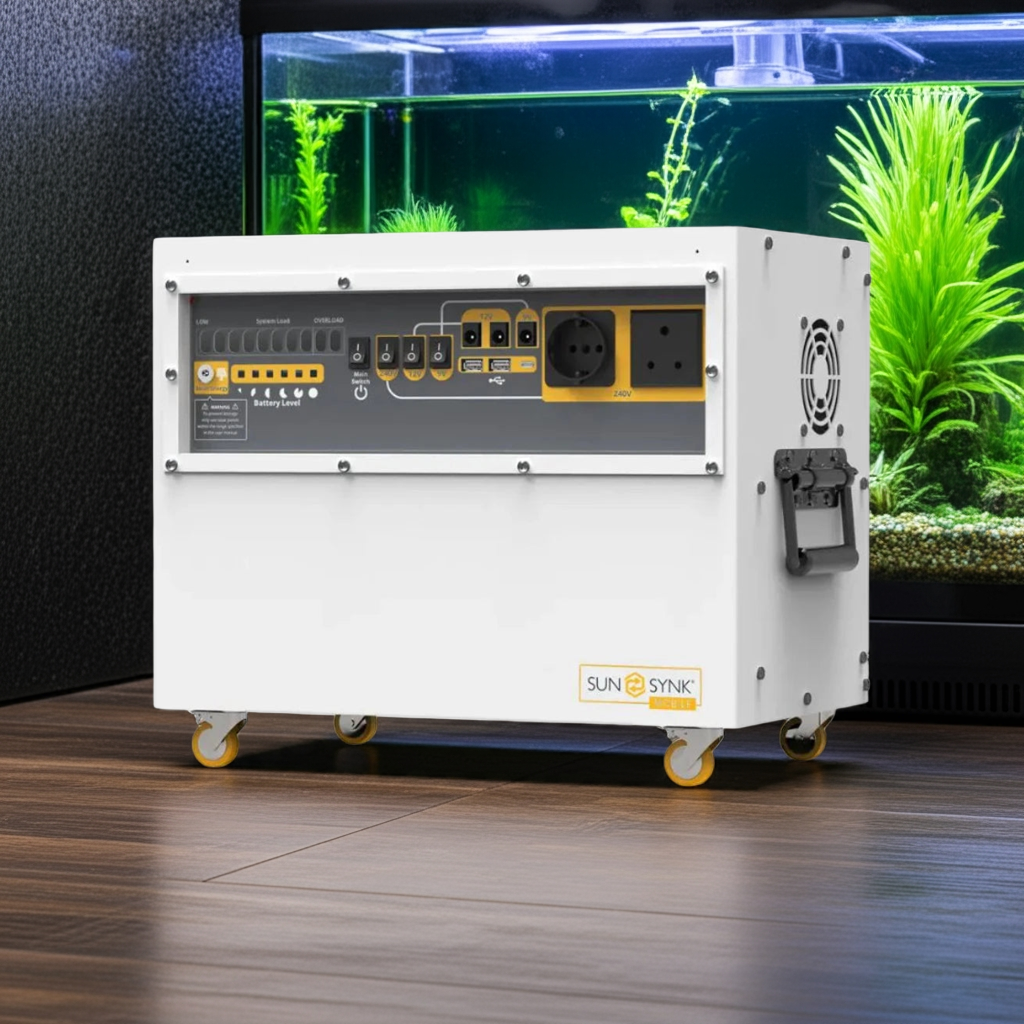

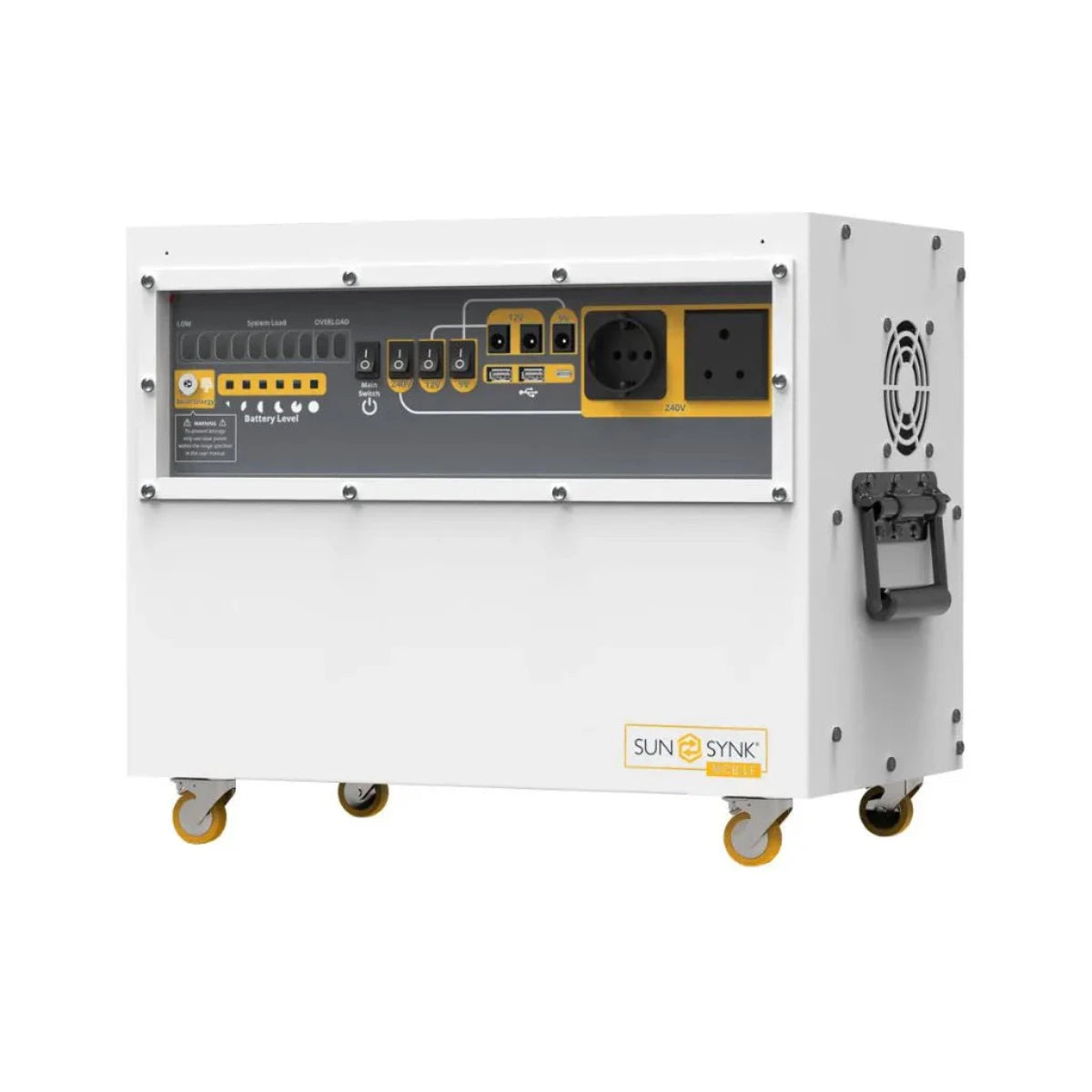

Sunsynk Contour 2000 with 1kW Inverter and 2kWh Battery

Sunsynk Contour 2000 with 1kW Inverter and 2kWh Battery

Welcome to the Sunsynk Mobile Contour, a portable power source designed to provide power to construction site technicians, vehicle mechanics, remote locations or simply environments both industrial and domestic, where power supply is non-existent or unreliable.

Product Features:

Each trolley is fitted with two wheels and two rubber feet to keep the trolley firmly in place once located to a useful position.

Built-in Lithium Phosphate battery packs provide reliable and safe power storage. The built-in inverter allows the Contour to be charged by AC Mains supply or from a DC Solar Array and can supply both AC and DC power via its assorted sockets. Load level indication is provided by a row of LEDs, these will increase with the load from green to orange, red LED’s indicate an overload and it is recommended to reduce the load to
prevent damage to the unit. Flashing red LED’s indicate that the unit has gone into safe mode, it will need to be switched off and on to restore output. Please ensure loads have been removed during this operation to prevent safe mode activation. Battery level indication is via a flow of LED’s that decrease as the charge capacity of the unit decreases.

Specification:

• Capacity:  1000W PSW Inverter

• Mains Input (Charge):  AC 240V/50Hz
• Max. Charging Current (Mains):  10A / 250W AC Charger
• Solar Panel Voltage Range: 32V-60V
• Max. Charging Current (Solar Panels):  10A
• Solar Charger: 250W MPPT
• Outputs:  2 x USB 5V 2A / 1 x Type C - 18W / 1 x DC 9V 1A / 2 x DC 12V 1A
• AC Outlet: AC240V/50Hz
• Weight: 35kg
• Inverter Peak Wattage: 2000W (4S)
• Inverter Nominal Max. Running Power: 1000W
• Battery Type: LiFePO4 Lithium Iron Phosphate Battery Pack
• Battery Specification:  2 x 25.6V - 36Ah - 921.6Wh Batterp Packs
• Total Battery Capacity: 1843.2Wh
