Sunsynk-GX Battery 61.44kWh High Voltage Series

Sunsynk-GX Battery 61.44kWh High Voltage Series

R 233,123.00
R 250,963.44 R 233,123.00
Sale Sold out
Tax included. Shipping calculated at checkout.

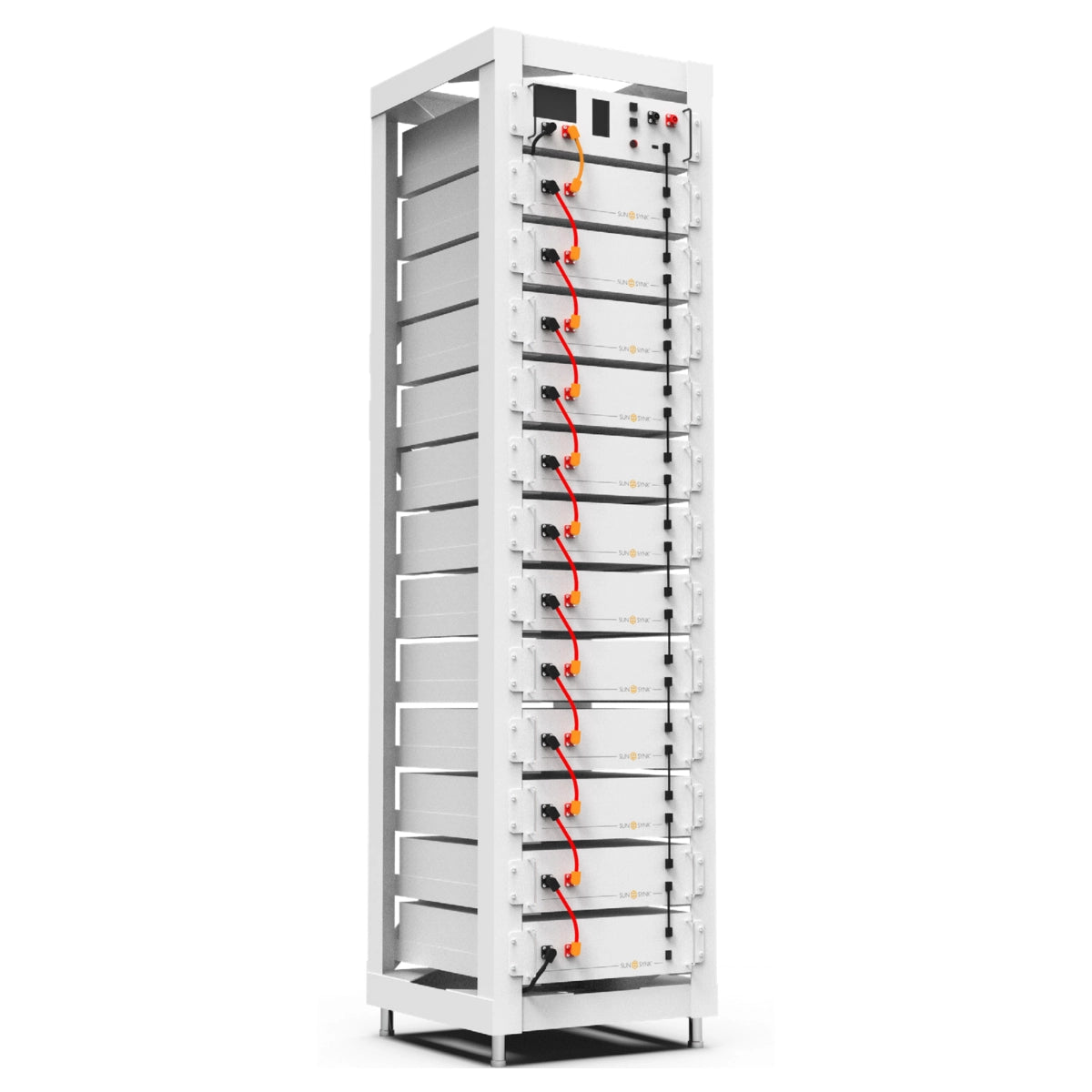

Sunsynk-GX Battery 61.44kWh High Voltage Series

LITHIUM-ION STORAGE SYSTEM - HIGH VOLTAGE SERIES

The Sunsynk High Voltage Series (SUNSYNK-GX) is a rack-mounted Lithium-Ion battery energy storage system designed for high-voltage applications. Utilizing Lithium Ferro Phosphate (LFP) cell chemistry, this system is engineered for efficiency and reliability in power storage. The system is modular, allowing for flexible configurations based on the required battery module quantity, with models ranging from G15 to G60.p

Product Features

  • High Capacity Storage: 61.44kWh total system energy, with 55.29kWh usable capacity.
  • Safe and Long-Lasting: LiFePO4 (Lithium Iron Phosphate) cell chemistry for excellent thermal stability and long cycle life (6000+ cycles at 70% EOL).
  • Smart Battery Management System (BMS): Built-in BMS with cell balancing, overcharge/over-discharge, over-current, and temperature protection.
  • Flexible System Design: Modular 12-battery setup in a single rack, with optional parallel expansion for larger systems.
  • High Charge/Discharge Rate: Supports up to 100A continuous current and 125A peak (2 minutes at 25°C).
  • Wide Operating Temperature: Reliable performance in temperatures from -20°C to 55°C.
  • Communication-Ready: Equipped with CAN2.0 and RS485 communication ports for seamless integration with Sunsynk inverters and monitoring platforms.
  • Certified and Tested: Meets international standards, including CE, IEC62619, UL1973, UN38.3, and UL9540A.
  • 10-Year Warranty: Backed by Sunsynk for long-term peace of mind.

Note: Delivery Not Included - Once your order has been placed, our sales team will contact you to confirm delivery fees.

PRODUCT SPECIFICATIONS

- Battery Cell Chemistry: Lithium Ferro Phosphate (LFP)
- Module Energy: 5.12 kWh
- Module Capacity: 100 Ah
- Module Nominal Voltage: 51.2V
- Battery Model Number: G60
- Battery Module Qty In Series: 12
- System Energy: 61.44 kWh
- System Nominal Voltage: 614.4V
- System Operating Voltage: 499.2~ 700V
- System Usable Energy: 55.29 kWh
- Rated DC Power: 614.4V
- Nominal Charge/Discharge Current: 100A
- Peak Discharge: 125A (2 mins, 25°C)
- Recommended Depth of Discharge: 90%
- Cycle Life: ≥ 6000 cycles (25±2°C, 0.5C/0.5C, EOL 70%)
- Working Temperature: Charge: 0~55°C / Discharge: -20~55°C
- Dimensions (WxDxH): 589 x 590 x 2240 mm
- Weight: 628 kg
- Warranty: 10 years
- Altitude: ≤2000m
- IP Rating of Enclosure: IP20
- Certifications: CE, IEC62619, VDE2510-50, UL1973, UL9540A, UN38.3
- Status Indicator: Yellow: Battery High Voltage Power On, Red: Battery System Alarm.

IMPORTANT NOTICE

Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and
installation requirements.

This product must be installed by a qualified electrician/technician. All installations must adhere to
local wiring regulations and standards. Crystal Communications and its Supplier will not be held
liable for any product malfunctions as a result of incorrectly installed systems.

Technical specifications and general features are provided on our website, however, as individual
needs and requirements may differ, it is recommended that our sales team is contacted for any
specific questions before a purchase is made to ensure that the item being purchased will satisfy
your requirements.

The images shown are for illustration purposes only and may not be an exact
representation of the product.
