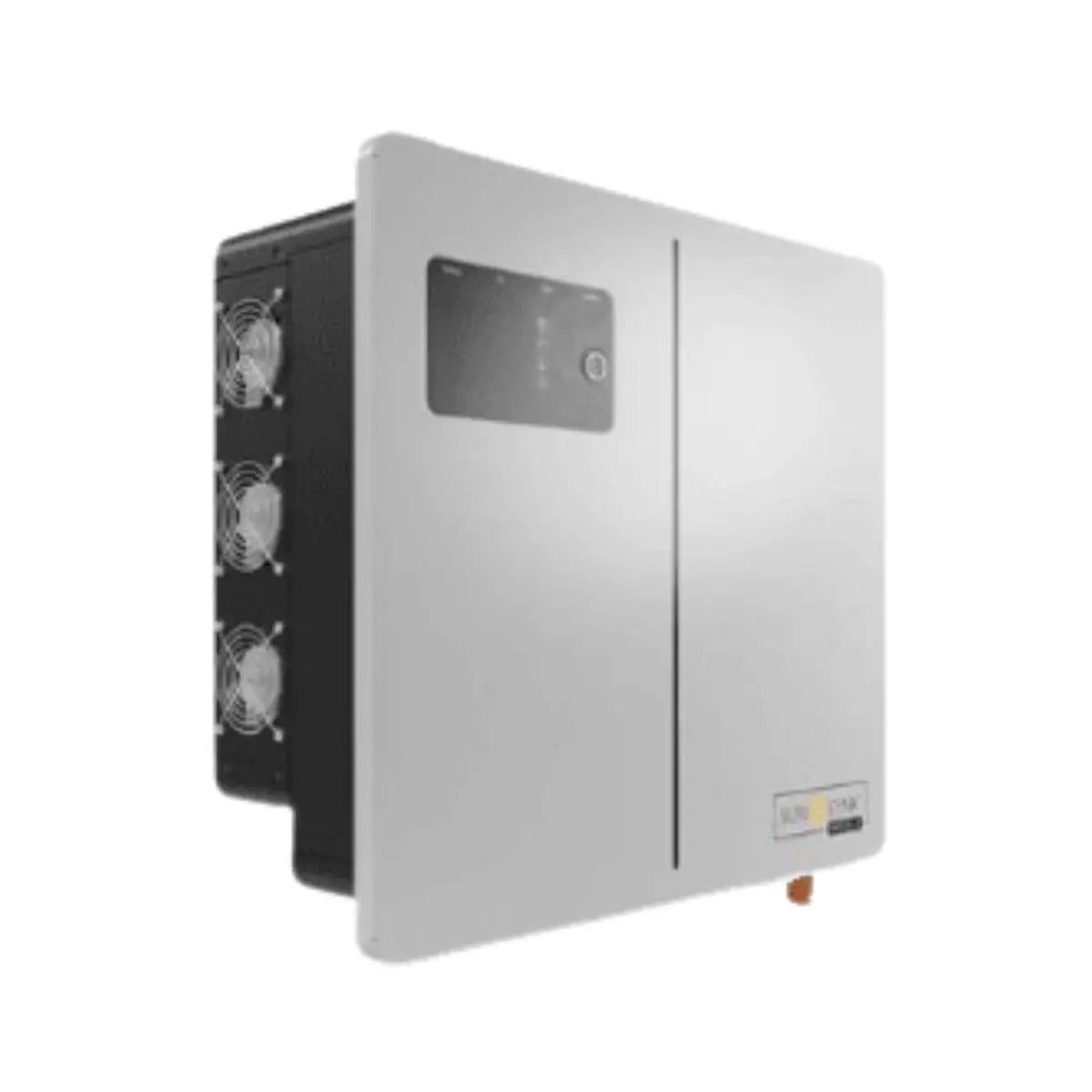

Sunsynk Lynks Pro 2nd Generation 8kW 48Vdc Single Phase IP65 Hybrid Inverter

Sunsynk Lynks Pro 2nd Generation 8kW 48Vdc Single Phase IP65 Hybrid Inverter

The Sunsynk Lynks Pro 2nd Generation 8kW Hybrid Inverter is a versatile and powerful solution for modern energy systems. With a maximum DC input power of 12 kWp and dual MPPT technology rated at 28A per MPPT, it ensures efficient energy harvesting from a variety of sources. Compatible with conventional PV systems, microinverters, and wind turbines, the Lynks Pro adapts to nearly any energy scenario, offering unmatched flexibility.

Product Features:

• Rated Power: 8,000 W (8kW)
• Max DC Input: 12 kWp
• Dual MPPT: 28A per MPPT for efficient energy harvesting
• Compatibility: Works with conventional PV systems, microinverters, and wind turbines
• Touch Screen LCD: Easy monitoring and configuration
• 3-Phase Configuration: Supports complex system setups
• Ingress Protection: IP65, suitable for outdoor applications
• Remote Monitoring: Wi-Fi dongle included
• CT Clamp: Included for energy measurement
• Warranty: Standard 5-year warranty
• Application: Single-phase hybrid inverter for homes, businesses, and outdoor installations


Specifications:

Battery Input Parameters:

• Supported Battery type: LI-Ion or Lead-acid
• Nominal Battery Voltage: 48V
• Battery Input Voltage Range: 40-60V
• Max.Charge Voltage: 60V(Configurable)
• Max.Charge Current: 150A(Configurable)

• Max.Disharge Current: 180A(Configurable)
• Battery Capacity (Recommended): 100 - 2000Ah
• Charge for Li-on Battery Pack: Communicating with BMS Battery Pack

PV String Input Parameters:

• Max. DC Input Power: 6000W x 2= 12000W
• DC Input Voltage: 500V
• MPPT Voltage Range: 120-450V
• Start-Up Voltage: 150V

• Max.Input Current: 28A x 2= 56A(2 MMPT Channels)

AC Output Parameters (Backup/Essential Load)

• Max. Output Power: 8000W
• Max. Output Apparent Power: 8000VA
• Peak Output Apparent Power: 16000VA
• Max. Output Current: 36A
• Nominal Output Voltage: 220/230/240V AC (Configurable, Single-Phase)
• Nominal Output Frequency: 50/60Hz (Configurable ±0.2%)
• Max. Bypass Current: 42A
• Shift Time (Bypass & Inverter): 10ms
• Output THDv (Resistor Load): <3%

AC Input Parameters (On-Grid/Battery Charging & Feed to Home Load)

• Max. Input Power: 8000W
• Max. Output Power (Feed to Home Load): 8000W
• Max. Apparent Input Power: 8000VA
• Max. Apparent Output Power: 8000VA
• Nominal Input/Output Voltage: 220/230/240V AC (Auto Adjusted for Home Grid)
• Nominal Input/Output Frequency: 50/60Hz (Auto Adjusted for Home Grid)
• Max. Bypass Current: 42A
• Shift Time (Bypass & Inverter): 10ms

Efficiency

• Max. Efficiency: 97.6%
• Battery to Load Efficiency: 94.0%
• European Efficiency: 97.6%
• MPPT Efficiency: 99.9%

Protection Features

• Battery Over-Charge Protection
• Battery Low-Voltage Protection
• Over-Temperature Protection
• Output Overload Protection
• Short Circuit Protection
