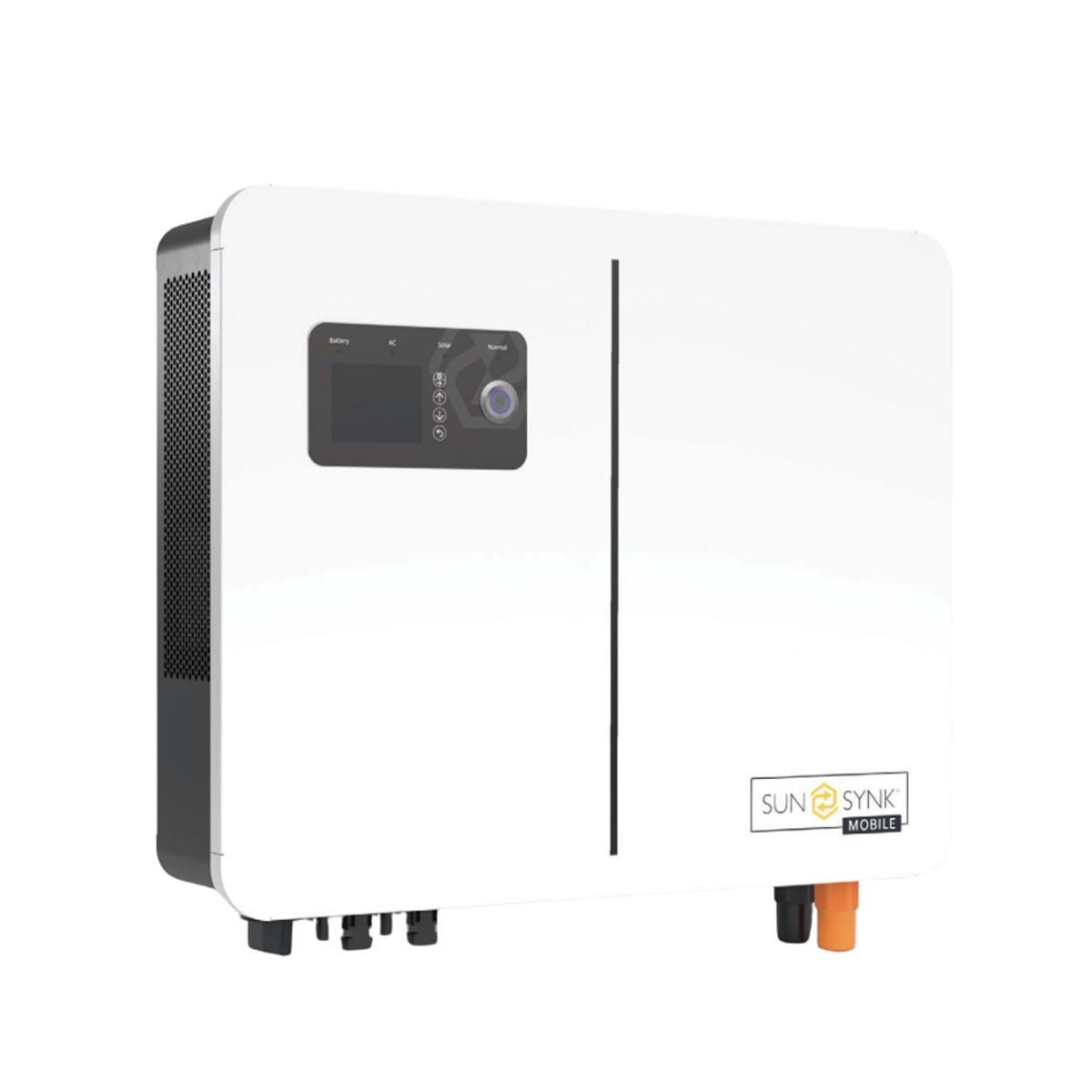

Sunsynk Lynks 6kW 48Vdc Single Phase Hybrid Inverter

Sunsynk Lynks 6kW 48Vdc Single Phase Hybrid Inverter

The Powerlynk Lynks 6kW Hybrid Inverter is a high-performance energy solution designed to provide reliable power conversion for residential and commercial applications. This advanced hybrid inverter supports both grid-tied and off-grid functionality, ensuring a seamless power supply to essential loads. With its high efficiency, fast switching time, and comprehensive protection features, it is ideal for solar power systems, battery storage, and backup power solutions.

Product Features:

• 6kW Maximum Output Power – Delivers sufficient power for essential household and business loads.
• On-Grid & Off-Grid Functionality – Supports both grid-tied and battery-based backup systems.
• High Efficiency – Achieves up to 97.6% efficiency, reducing power losses.
• Fast Switching Time – 10ms bypass and inverter shift time ensures an uninterrupted power supply.
• Configurable Output Voltage & Frequency – Supports 220/230/240V AC single-phase and 50/60Hz operation.
• MPPT Efficiency of 99.9% – Maximizes solar power conversion for optimal battery charging.
• Multiple Protection Mechanisms – Includes battery over-charge protection, low-voltage protection, over-temperature protection, output overload protection, and short-circuit protection.


Specifications:

AC Output Parameters (Backup/Essential Load)

• Max. Output Power: 6000W
• Max. Output Apparent Power: 6000VA
• Peak Output Apparent Power: 12000VA
• Max. Output Current: 26A
• Nominal Output Voltage: 220/230/240V AC (Configurable, Single-Phase)
• Nominal Output Frequency: 50/60Hz (Configurable ±0.2%)
• Max. Bypass Current: 40A
• Shift Time (Bypass & Inverter): 10ms
• Output THDv (Resistor Load): <3%

AC Input Parameters (On-Grid/Battery Charging & Feed to Home Load)

• Max. Input Power: 6000W
• Max. Output Power (Feed to Home Load): 6000W
• Max. Apparent Input Power: 6000VA
• Max. Apparent Output Power: 6000VA
• Nominal Input/Output Voltage: 220/230/240V AC (Auto Adjusted for Home Grid)
• Nominal Input/Output Frequency: 50/60Hz (Auto Adjusted for Home Grid)
• Max. Bypass Current: 40A
• Shift Time (Bypass & Inverter): 10ms

Efficiency

• Max. Efficiency: 97.6%
• Battery to Load Efficiency: 94.0%
• European Efficiency: 97.0%
• MPPT Efficiency: 99.9%

Protection Features

• Battery Over-Charge Protection
• Battery Low-Voltage Protection
• Over-Temperature Protection
• Output Overload Protection
• Short Circuit Protection
