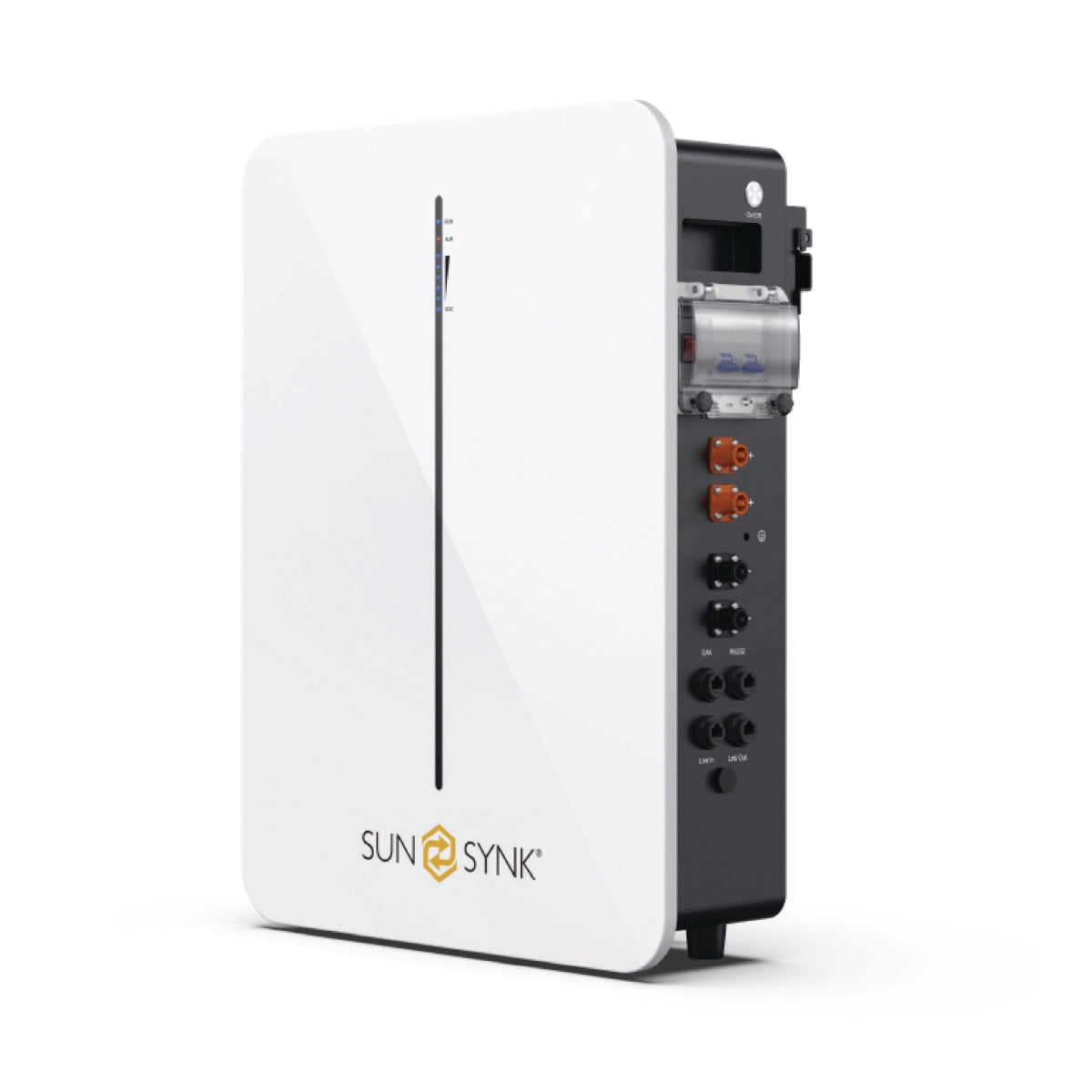

Sunsynk R-Series 5.12kWh 51.2V LiFePO4 Battery

Sunsynk R-Series 5.12kWh 51.2V LiFePO4 Battery

R 17,123.00
R 0.00 R 17,123.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Sunsynk R-Series 5.12kWh 51.2V LiFePO4 Battery

Engineered for high-power demands, compact spaces, and exceptional longevity, the Sunsynk R-Series 5.12kWh Lithium Iron Phosphate (LiFePO4) Battery is a dependable energy storage solution designed to deliver reliable, uninterrupted power across various residential and commercial applications.

Product Features

  • Sunsynk 5.12kWh 51.2V 100Ah R-series  Li-Ion battery.
  • 80% Depth of Discharge with usable capacity of up to 4.096kWh.
  • 0.98C discharge rating.
  • Parallel capability of up to 15 units delivering 76.8kWh.
  • Aerosol fire suppression.
  • 6000 cycles.
  • IP65 rating ideal for outdoor applications.
  • Wall mount/floor mount design.
  • Integrated breaker.
  • Battery management system (BMS) with protection functions, including over-discharge, over-charge, over-current, and high/low temperature.
  • 10 years product warranty.

PRODUCT SPECIFICATIONS

Main Parameter
- Battery Chemistry: LiFePO4
- Nominal Voltage: 51.2Vdc
- Nominal Capacity: 100Ah
- Battery Energy: 5120Wh
- Operating Voltage Range: 44.8Vdc to 56.16Vdc
- Nominal Charge/Discharge Current: 50A
- Max. Charge/Discharge Current: 98A

Communication & Display
- Display: SOC Status Indicator, LED Indicator
- Communication: CAN / RS485 / RS232 / Wi-Fi

General Specification
- Dimension (WxDxH): 470 x 160 x 635 mm
- Weight: 49.5 kg
- Installation: Floor Stand or Wall Mounted
- Operating Temperature: Charge: 0°C to 50°C | Discharge: -15°C to 50°C
- Environmental Humidity: <=95%RH (No Condensation)
- Protection Rating: IP65
- Cycle Life: 6000 Cycles @ 80% DOD / 25°C / 0.5C, 60% EOL
- Scalability: Max. 15 Batteries in Parallel
- Application: On-Grid / On-Grid + Backup / Off-Grid
- Compatible Inverters: Refer to Compatible Inverter List (Compatible with Major PCS Brands)

Standard Compliance & Warranty
- Approvals & Certifications: Subject to change without prior notice (please confirm the current status before placing an order).
- Warranty: See website for warranty details.

Ordering and Deliverable Parts
- SUN-BATT-5.12-R-01 Battery
- SUN-BATT-5.12-R-01 Parallel Cable
- SUN-BATT-5.12-R-01 to PCS Cable

IMPORTANT NOTICE

Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and installation requirements.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Crystal Communications and its Supplier will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Technical specifications and general features are provided on our website, however, as individual needs and requirements may differ, it is recommended that our sales team is contacted for any specific questions before a purchase is made to ensure that the item being purchased will satisfy your requirements.

The images shown are for illustration purposes only and may not be an exact representation of the product.

Crystal Communications (Pty) Ltd may not have all the specific items or quantities of stock you have requested. Our dedicated Customer Service Team will use our extensive network to try to source the stock for you ASAP. You will be notified within 24 hours if we cannot source the required item, and a full refund will be processed on your order. Should you wish to contact us directly, please call 0118670488 or email sales@crystalcom.co.za
