Sunsynk X-Series 10.24kWh 51.2V Battery (NEW)

Sunsynk X-Series 10.24kWh 51.2V Battery (NEW)

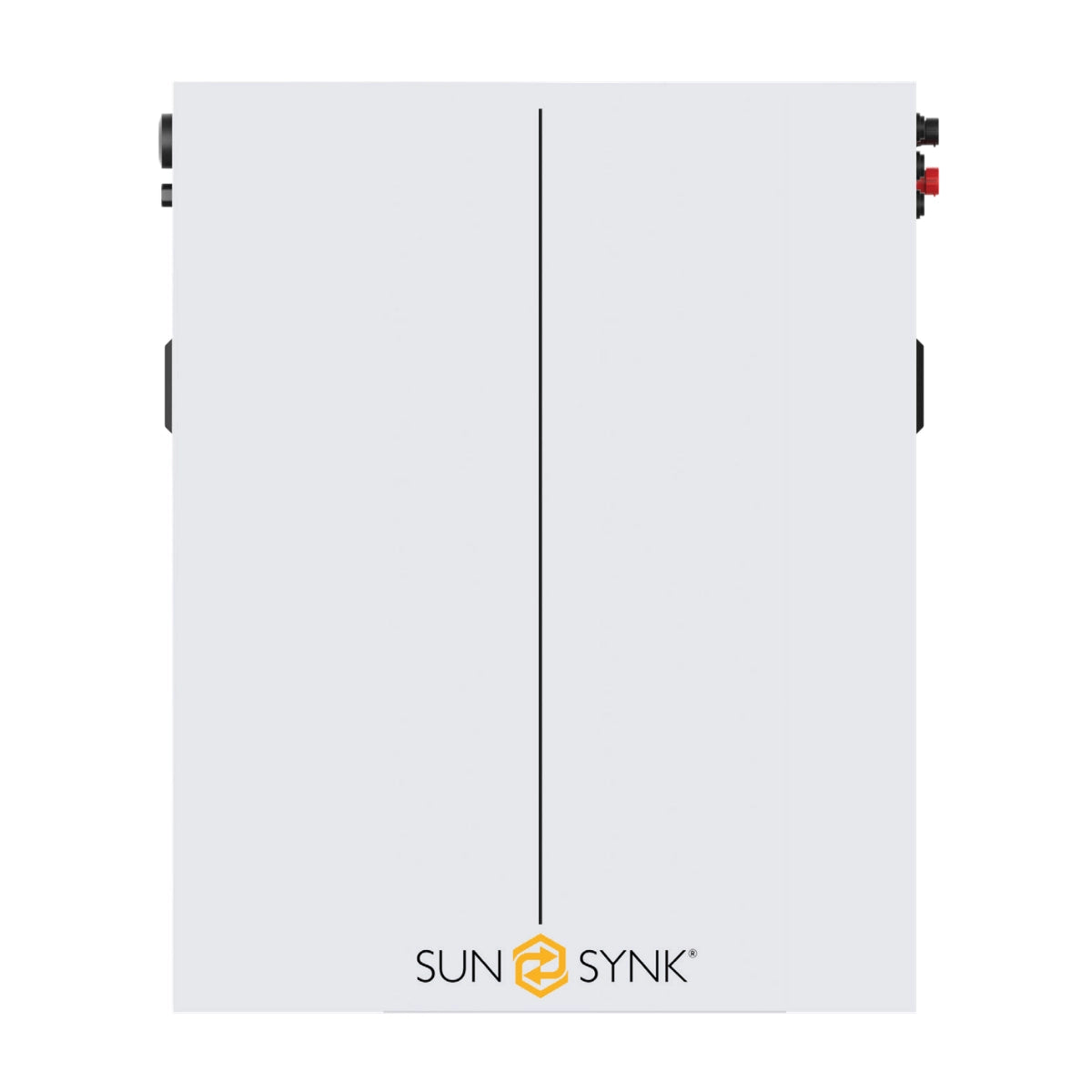

The Sunsynk X-Series (SUN-X-10.24-F) isn’t just a battery; it’s a high-performance energy hub designed for those who demand reliability without compromise. Engineered with Lithium Iron Phosphate (LiFePO4) technology, this 51.2V 200Ah powerhouse is tailored for high-demand environments where space is premium and longevity is essential.

Product Features

• 10.24kWh (51.2V 200Ah) Lithium-Ion Battery
• 95% DoD
• 1C Discharge Rating
• >6000 Cycles @ 25°C @ 0.5C
• IP65 Rated – Suitable for outdoor use
• Wall-Mount Design
• Advanced BMS Protection
• Sunsynk Inverter & Battery Pairing – Includes 5-Year Extended Inverter Warranty
• 5Years / 10Years Product Warranty (The warranty period depends on the final installation site of the Inverter. For more information please refer to warranty policy.)

Specifications:

Main Parameters

• Battery Chemistry: LiFePO4
• Nominal Energy [1]: 10.24kWh
• Nominal Capacity: 200Ah
• Rated Voltage: 51.2Vdc
• Operating Voltage Range: 43.2Vdc ~ 57.6Vdc
• Max. Charge/Discharge Current [2]: 100A/150A
• Scalability: Recommended ≤3 units, Maximum 8 in Parallel

Other Parameters

• Depth of Discharge: 95%
• Communication: RS485, CAN, Wi-Fi (Optional)
• Dimensions (WxDxH): 600x184x750mm
• Weight: 91kg
• Operating Temperature:
  • Charge: -8~55°C
  • Discharge: -18~55°C
• Humidity: 5 ~ 95% RH, no condensation
• Altitude: <2000 m
• Protection Level: IP65
• Protective Class: Class I
• Installation: Wall-mounted, Floor-to-battery
• Cycle Life: >6000 @25°C @0.5C
• Certification: IEC62619, CE, UN38.3, RoHS
