Sunsynk

Sunsynk X-Series 5.12kWh 51.2V Battery (NEW)

Sunsynk X-Series 5.12kWh 51.2V Battery (NEW)

R 16,074.00
R 16,074.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Sunsynk X-Series 5.12kWh 51.2V Battery (NEW)

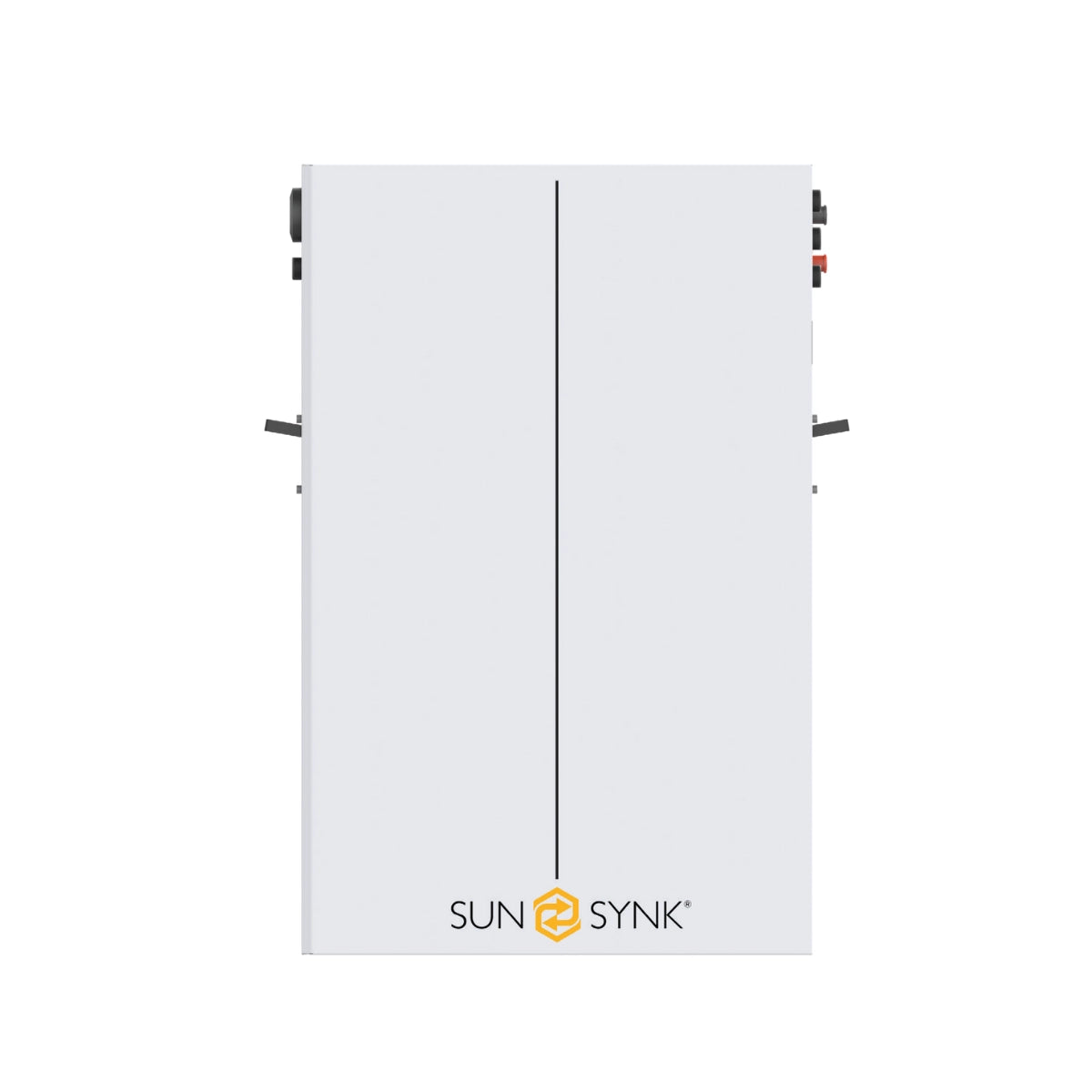

The Sunsynk 5.12kWh X-series Li-Ion Battery is a high-performance energy storage solution designed for both residential and light commercial applications. With a wall-mounted, IP65-rated design, it’s perfect for indoor or outdoor installation. The battery delivers reliable and safe energy storage, supporting a 95% depth of discharge for up to 4.864kWh of usable capacity.

Product Features

  • Sunsynk 5.12kWh 51.2V 100Ah X-series  Li-Ion battery.
  • 95% Depth of Discharge with usable capacity of up to 4.864kWh.
  • 1C discharge rating.
  • Parallel capability of up to 8 units delivering 40.96kWh.
  • 6000 cycles.
  • IP65 rating ideal for outdoor applications.
  • Wall mount design.
  • Battery management system (BMS) with protection functions, including over-discharge, over-charge, over-current, and high/low temperature.
  • 10 years product warranty.

PRODUCT SPECIFICATIONS

Main Parameters
- Battery Chemistry: LiFePO4
- Nominal Energy [1]: 5.12kWh
- Nominal Capacity: 100Ah
- Rated Voltage: 51.2Vdc
- Operating Voltage Range: 43.2Vdc ~ 57.6Vdc
- Max. Charge/Discharge Current [2]: 50A / 100A
- Scalability: Recommended ≤3 units, Maximum 8 in Parallel

Other Parameters
- Depth of Discharge: 95%
- Communication: RS485, CAN, Wi-Fi (Optional)
- Dimensions (WxDxH): 420 x 140 x 650 mm
- Weight: 45 kg
- Operating Temperature:
- Charge: -10 ~ 50°C
- Discharge: -20 ~ 50°C
- Humidity: 5 ~ 95% RH, no condensation
- Altitude: <2000 m
- Protection Level: IP65
- Protective Class: Class I
- Installation: Wall-mounted, Floor-to-battery
- Cycle Life: >6000 @25°C @0.5C
- Certification: IEC62619, CE, UN38.3, RoHS

IMPORTANT NOTICE

Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and installation requirements.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Crystal Communications and its Supplier will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Technical specifications and general features are provided on our website, however, as individual needs and requirements may differ, it is recommended that our sales team is contacted for any specific questions before a purchase is made to ensure that the item being purchased will satisfy your requirements.

The images shown are for illustration purposes only and may not be an exact representation of the product. Crystal

Communications (Pty) Ltd may not have all the specific items or quantities of stock you have requested. Our dedicated Customer Service Team will use our extensive network to try to source the stock for you ASAP. You will be notified within 24 hours if we cannot source the required item, and a full refund will be processed on your order. Should you wish to contact us directly, please call 0118670488 or email sales@crystalcom.co.za
