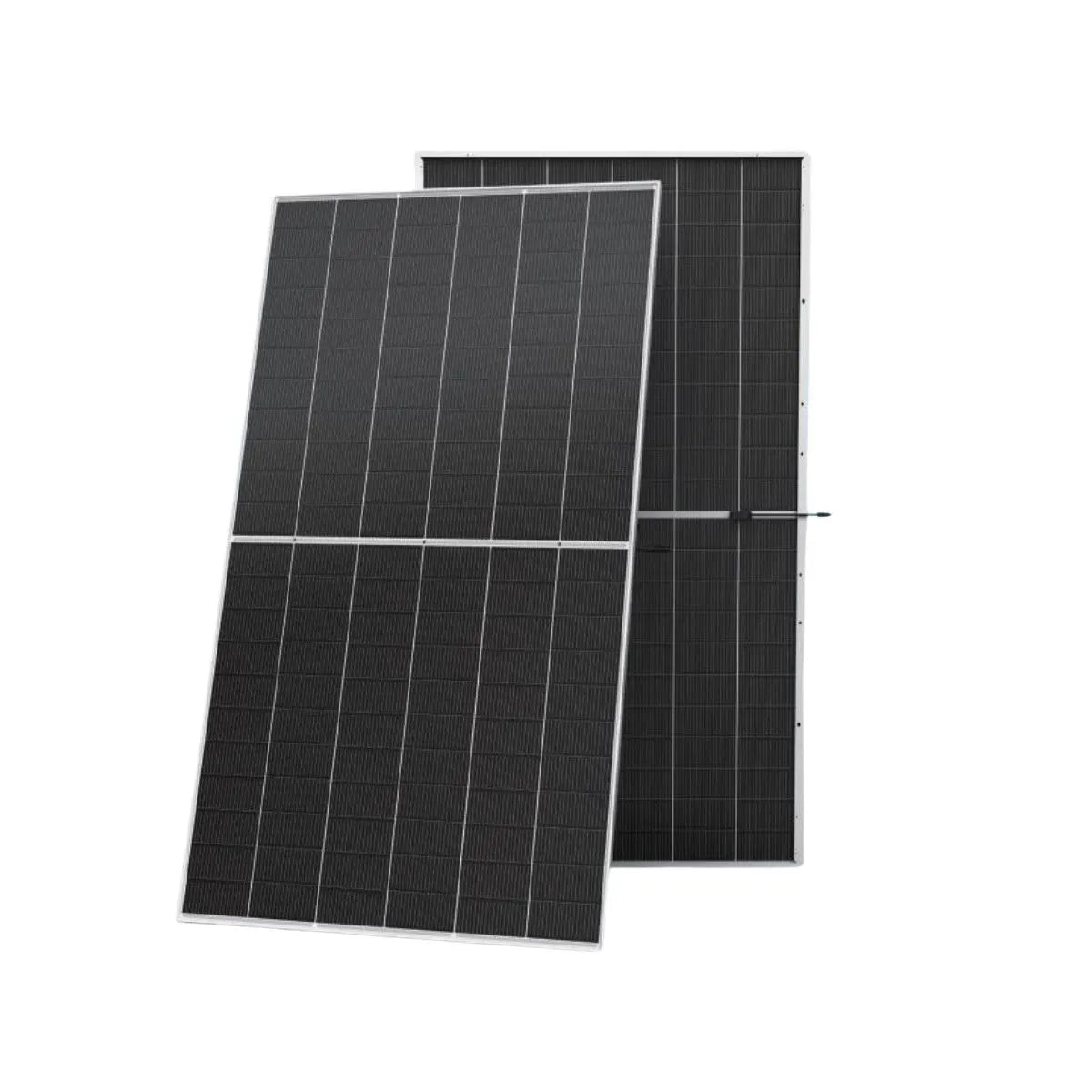

Trina 705W Vertex Bifacial N-Type i-TOPCon Solar Panel

Trina 705W Vertex Bifacial N-Type i-TOPCon Solar Panel

The Trina 705W Vertex Bifacial N-Type i-TOPCon Solar Panel combines cutting-edge efficiency with proven durability. Built on Trina’s advanced 210mm platform, it delivers up to 23.2% module efficiency and an additional 10–20% power gain from its bifacial design. Its low-voltage, high-string configuration effectively reduces BOS and LCOE costs by 2–6%, while standardized sizing improves shipping and installation efficiency.

Designed for reliability, the Vertex 705W features non-destructive cutting, half-cut cell technology, and a dual-glass structure that minimizes micro-cracks and ensures stable performance in harsh environments. Certified for high resistance to PID, LID, salt, ammonia, and sand, and backed by a 30-year power warranty, it offers a high-return, low-carbon solution for utility-scale and commercial solar projects.

Product Features:

• Standardized module size with flagship module power, 35W higher compared with conventional technology
• Low voltage design with higher string power, effectively reducing BOS (Balance of System) and LCOE (Levelized Cost of Energy) by 2%~6%
• Higher container space utilization effectively reduces the freight cost
• Certified Low-Carbon Footprint
• Up to 23.2% module efficiency, on 210 innovation platform
• Patented i-TOPCon technology with continuous efficiency improvement, including contact resistance reduction, rear reflection enhancement and edge quality repairment.
• Minimized micro-cracks with innovative non-destructive cutting technology and high-density packaging
• Certified high resistance against salt, ammonia, sand, PID, LID, LeTID
• Sustainable in harsh environments and extreme weather conditions
• Excellent low irradiation performance, validated by 3rd party
• Lower temperature coefficient (-0.29%/°C)
• Higher bifaciality, with up to 10%~20% additional power gain from back side depending on albedo
• Reliable dual-glass structure with 30-year power guarantee

Specifications:

• Peak Power Watts-PMAX(Wp): 705
• Power Selection (W): 0 ~ +5
• Maximum Power Voltage-VMPP (V): 40.7
• Maximum Power Current-IMPP (A): 17.33
• Open Circuit Voltage-VOC (V): 48.8
• Short Circuit Current-ISC (A): 18.36
• Module Efficiency η m (%): 22.7
• Solar Cells: N-type i-TOPCon Monocrystalline
• No. of cells: 132 cells
• Module Dimensions: 2384×1303×33 mm
• Weight: 38.3 kg
• Front Glass: 2.0 mm (0.08 inches), AR Coating Heat Strengthened Glass
• Back Glass: 2.0 mm (0.08 inches), Heat Strengthened Glass (White Coating)
• Frame: 33mm(1.30 inches) Anodized Aluminium Alloy
• J-Box: IP 68 rated

To qualify for free shipping, solar panel orders must consist of 6 units or more. Additional shipping charges may also apply to outlying areas and will be quoted accordingly.
