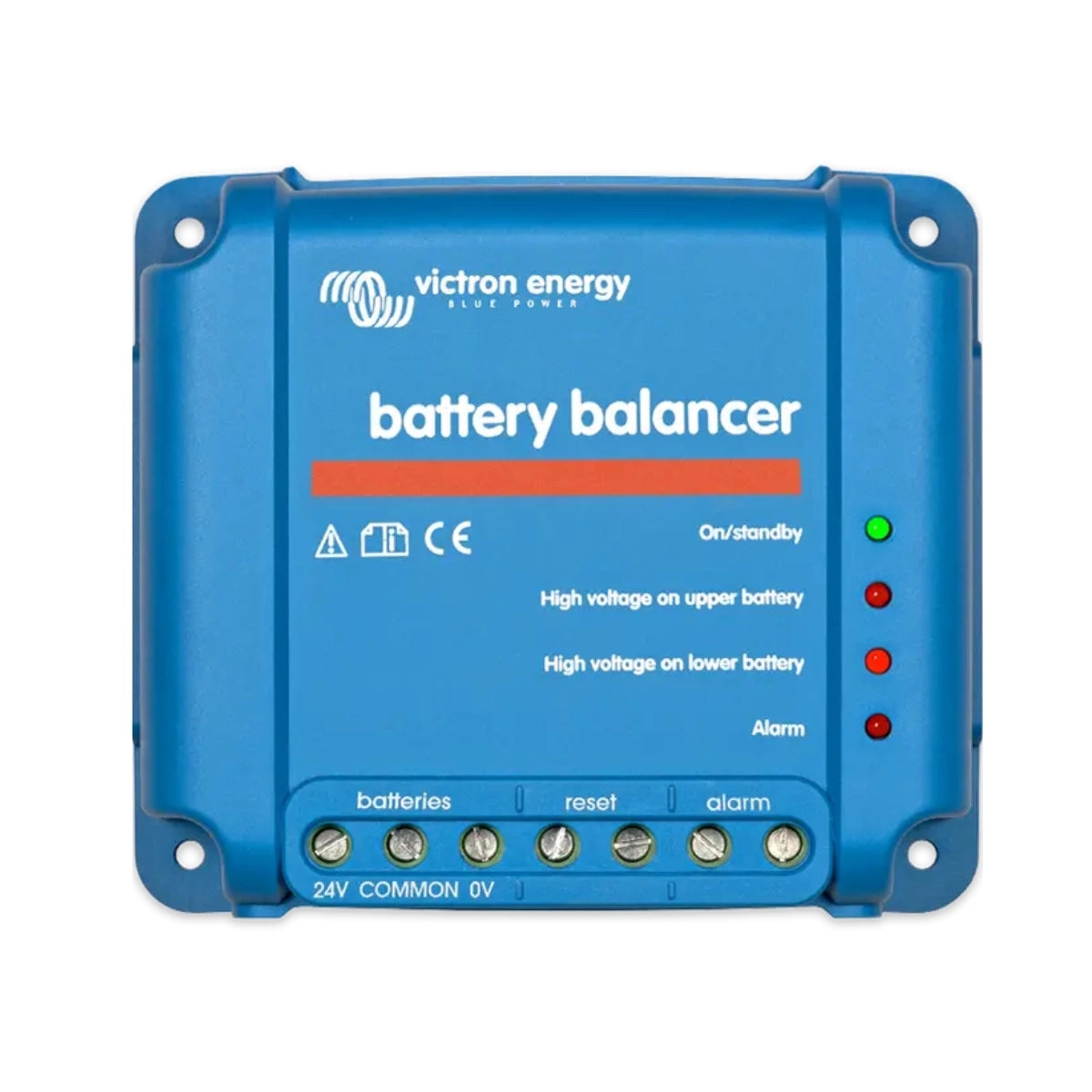

The Battery Balancer ensures equal charging between two 12V batteries in a 24V system by correcting voltage differences. It draws up to 1A from the higher voltage battery, helping all batteries reach the same state of charge. Multiple balancers can be used for larger systems, including 48V setups.
Specifications:
- Maximum charge current: 120 A
- Maximum alternator current: 120 A
- Number of batteries: 2
- Nominal battery voltage: 12V and 24V
- Alternator Energize Input: Yes
- Connection: M8 Studs
- Compensation diode and Energize connection: 6.3 mm Faston
- Weight: 0.8 kg (1.8 lbs)
-
Dimensions (h x w x d): 60 x 120 x 115 mm (2.4 x 4.7 x 4.5 inches)
