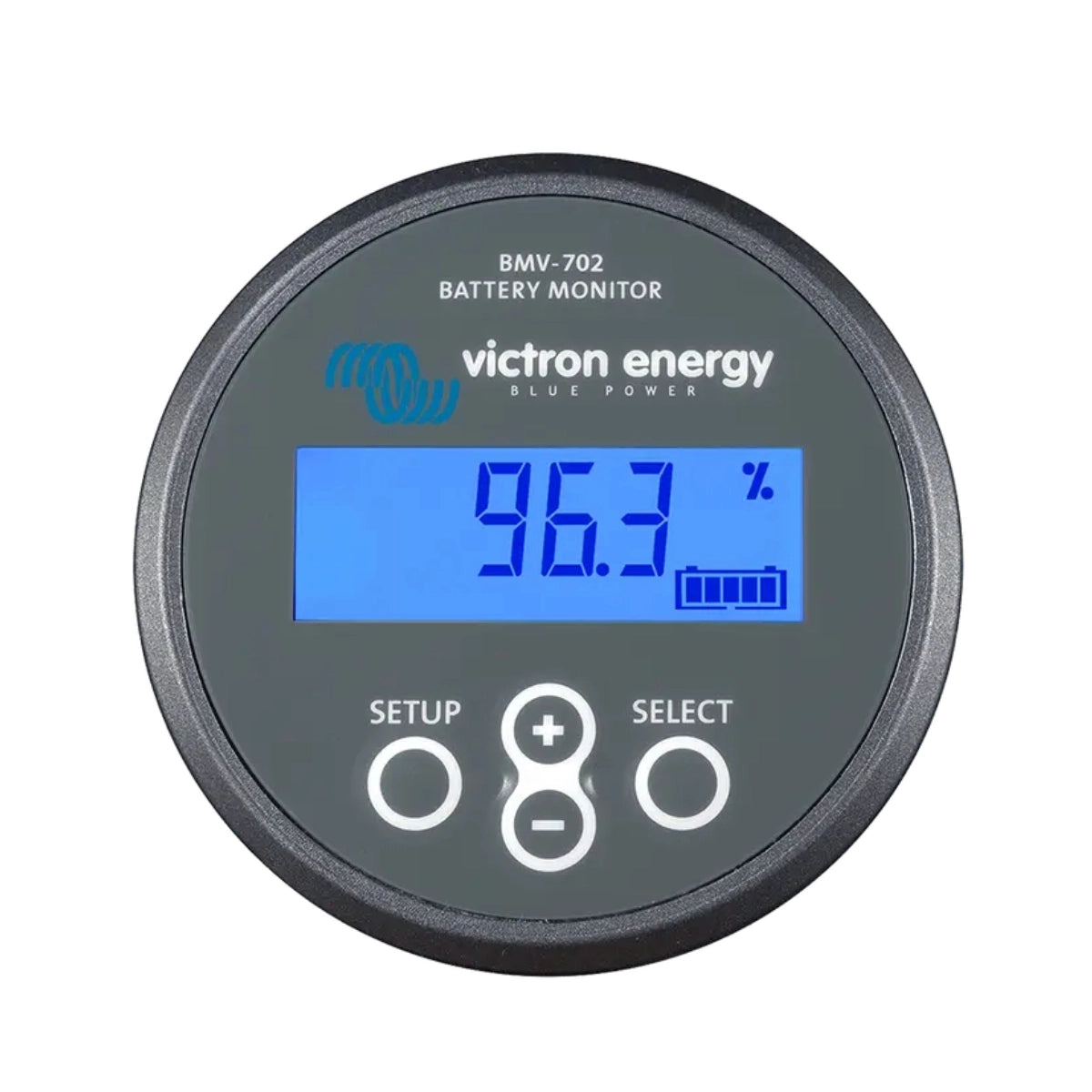

The BMV-702 is a high precision battery monitor. The essential function of a battery monitor is to calculate ampere hours consumed and the state of charge of a battery. Ampere hours consumed are calculated by integrating the current flowing in or out of the battery.
Product Features:
- Monitors voltage, current, power, amp-hours, and state of charge
- Calculates remaining run-time and tracks battery history
- Programmable alarms and relay control
- Midpoint voltage monitoring for advanced battery health checks

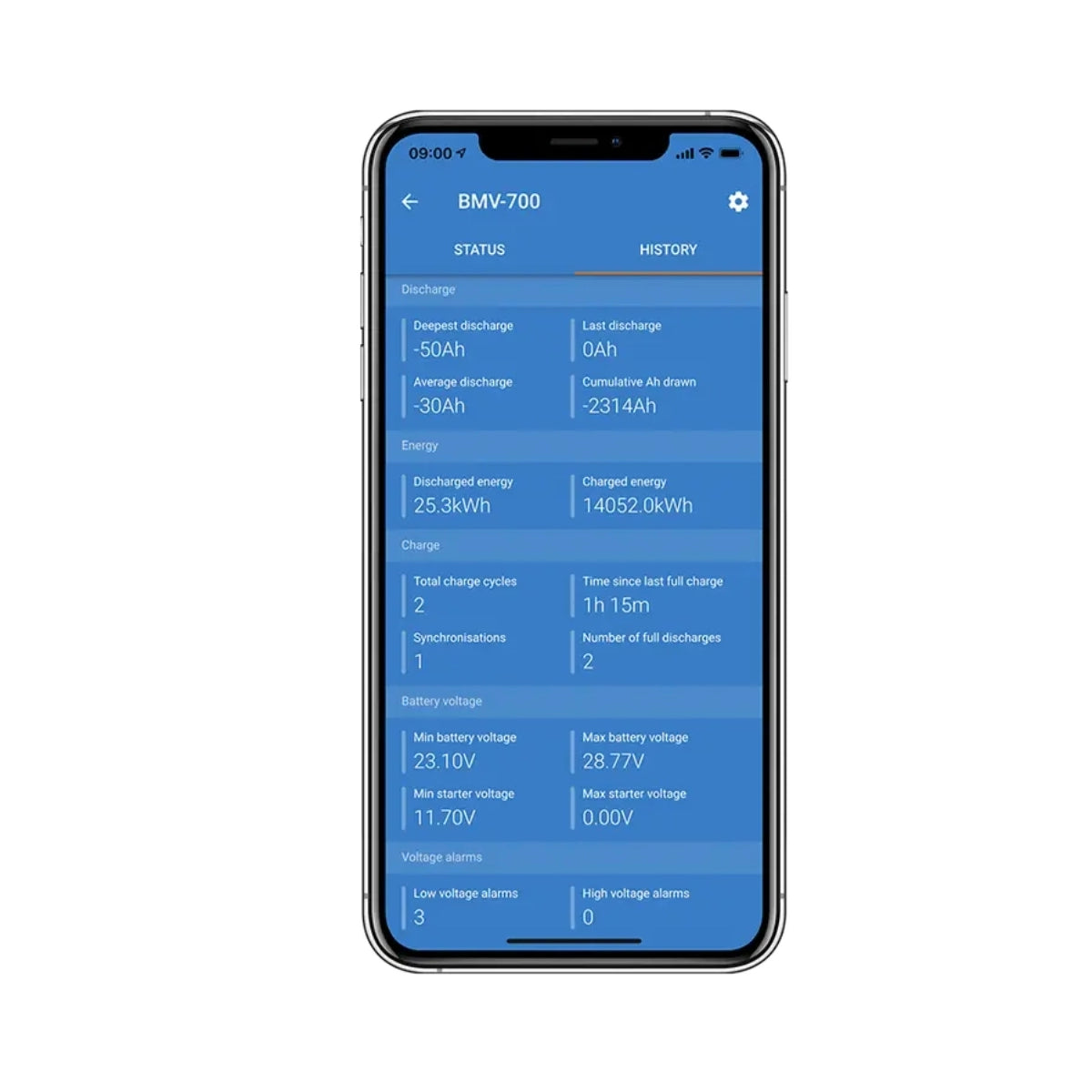

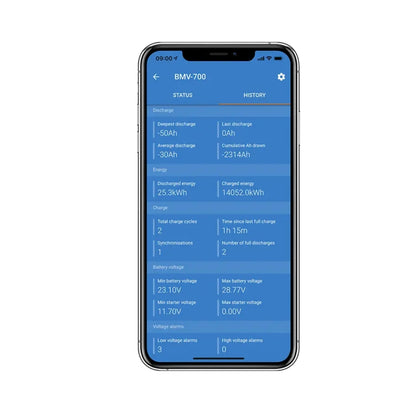

- Bluetooth-ready (dongle required) for app-based monitoring
- Easy installation with included shunt and cables
- Supports second battery voltage or temperature input
Specifications:
- Supply voltage range: 6.5 - 95 VDC
- Current draw, back light off: < 4mA
- Input voltage range, auxiliary battery : 6.5 - 95 VDC
- Battery capacity (Ah): 1 - 9999 Ah
- Operating temperature range: -40 +50°C (-40 - 120°F)
- Measures voltage of second battery, or temperature, or midpoint: Yes
- Temperature measurement range: -20 +50°C
- VE.Direct communication port: Yes
- Relay: 60V / 1A normally open (function can be inverted)
RESOLUTION & ACCURACY (with a 500 A shunt)
- Current: ± 0.01A
- Voltage: ± 0.01V
- Amp hours: ± 0.1 Ah
- State of charge (0 – 100%): ± 0.1%
- Time to go: ± 1 min
- Temperature (0 - 50°C or 30 - 120°F): ± 1°C/°F
- Accuracy of current measurement: ± 0.4%
- Accuracy of voltage measurement: ± 0.3%
INSTALLATION & DIMENSIONS
- Installation: Flush mount
- Front: 63mm diameter
- Front bezel: 69 x 69 mm (2.7 x 2.7 inch)
- Shunt connection bolts: M10 (0.3937 inch)
- Body diameter and depth: 52 mm (2.0 inch) and 31 mm (1.2 inch)
- Protection category: IP55 (not intended for outdoor use)
STANDARDS
- Safety: EN 60335-1
- Emission / Immunity: EN 55014-1 / EN 55014-2
- Automotive: ECE R10-4 / EN 50498
ACCESSORIES
- Shunt (included) : 500A / 50mV
- Cables (included): 10 meter 6 core UTP with RJ12 connectors, and cable with 1Amp slow blow fuse for ‘+’ connection
- Temperature sensor: Optional (ASS000100000)
