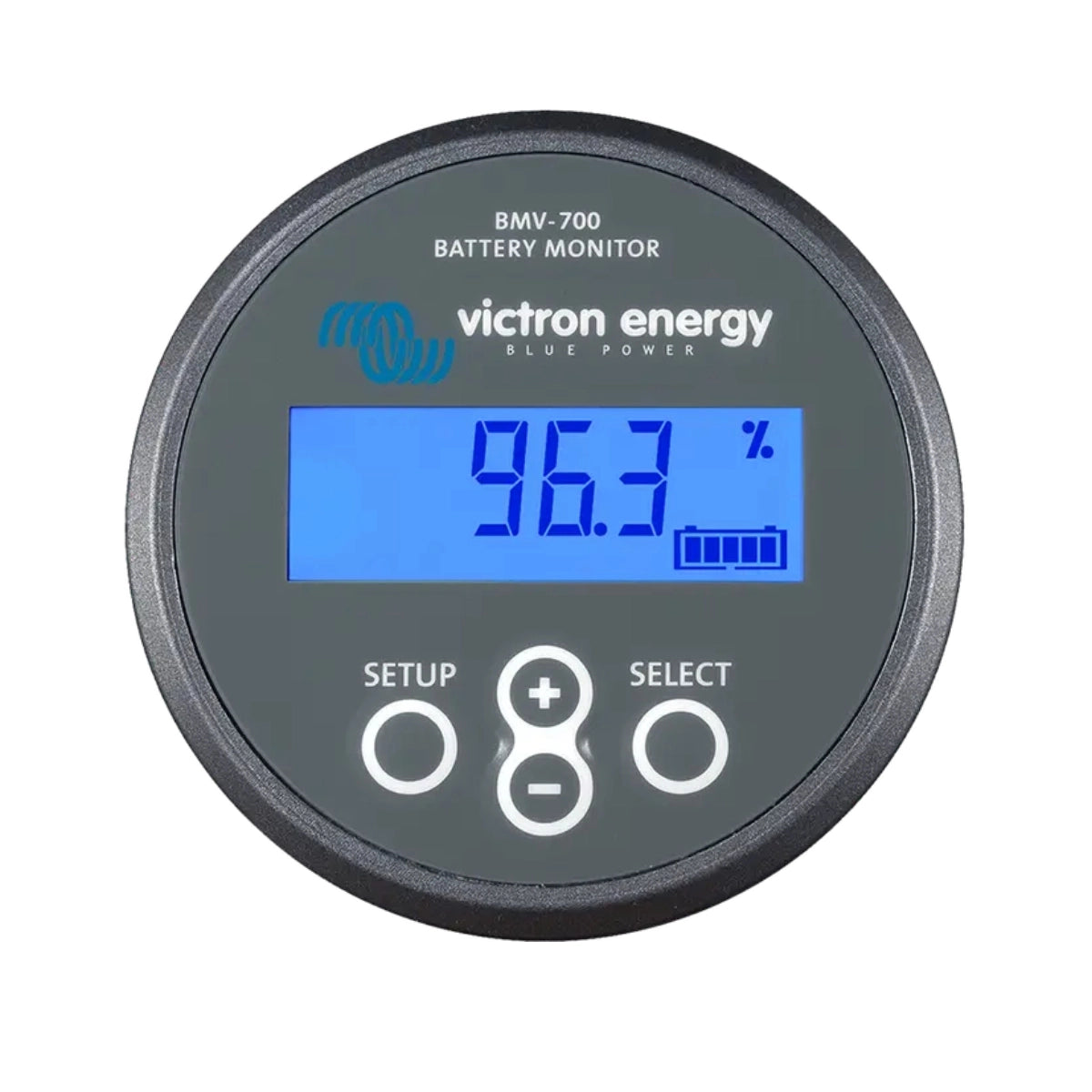

The BMV-700 is a high precision battery monitor. The essential function of a battery monitor is to calculate ampere hours consumed and the state of charge of a battery. Ampere hours consumed are calculated by integrating the current flowing in or out of the battery.
Product Features:
- Displays battery voltage, current, power, amp-hours, and state of charge
- Time-to-go estimate based on current usage
- Programmable alarms and relay for load/generator control
- 500A quick-connect shunt included
- Bluetooth monitoring (with optional dongle)
- Easy installation with all cables and mounting parts included
- BMV-702 adds input for second battery, temperature, or midpoint voltage
- VE.Direct port for system integration
- Low power consumption & high accuracy
Specifications:
Electrical:
- Supply voltage range: 6.5 – 95 VDC
- Current draw (backlight off): < 4 mA
- Relay: 60V / 1A normally open (function can be inverted)
Measurement Accuracy (with 500A shunt):
- Current: ± 0.01 A
- Voltage: ± 0.01 V
- Amp hours: ± 0.1 Ah
- State of charge (0 – 100%): ± 0.1%
- Time to go: ± 1 min
- Accuracy of current measurement: ± 0.4%
- Accuracy of voltage measurement: ± 0.3%
Communication & Compatibility:
- VE.Direct communication port: Yes
- Measures second battery / temperature / midpoint: No
Operating Conditions:
- Operating temperature range: -40 to +50°C
- Protection rating: IP55 (not intended for outdoor use)
Installation & Dimensions:
- Mounting: Flush mount
- Front diameter: 63 mm
- Front bezel size: 69 x 69 mm (2.7 x 2.7 in)
- Body diameter and depth: 52 mm (2.0 in) and 31 mm (1.2 in)
- Shunt connection bolts: M10 (0.3937 inch)
Accessories (Included):
- 500A / 50mV shunt
- 10 m RJ12 UTP cable
- 2 m battery cable with 1A fuse
- Mounting bezel (square or round)
Standards:
- Safety: EN 60335-1
- Emission / Immunity: EN 55014-1 / EN 55014-2
- Automotive Compliance: ECE R10-4 / EN 50498
