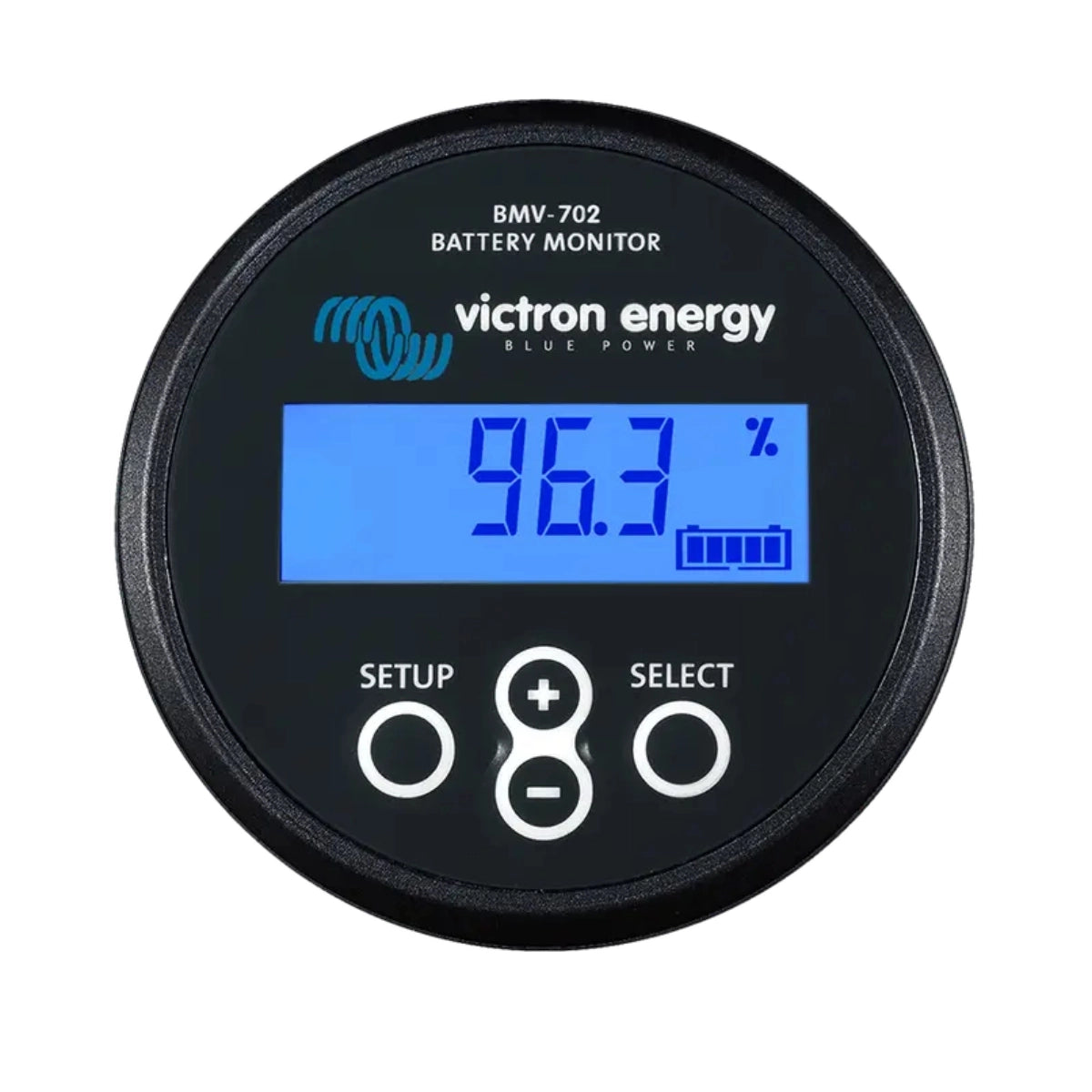

The BMV-702 (Black) is a high precision battery monitor. The essential function of a battery monitor is to calculate ampere hours consumed and the state of charge of a battery. Ampere hours consumed are calculated by integrating the current flowing in or out of the battery.
Product Features:
- Shows battery voltage, current, power, state of charge, and time-to-go
- Tracks amp-hours consumed and power usage in watts
- Extra input for second battery voltage, temperature, or midpoint monitoring

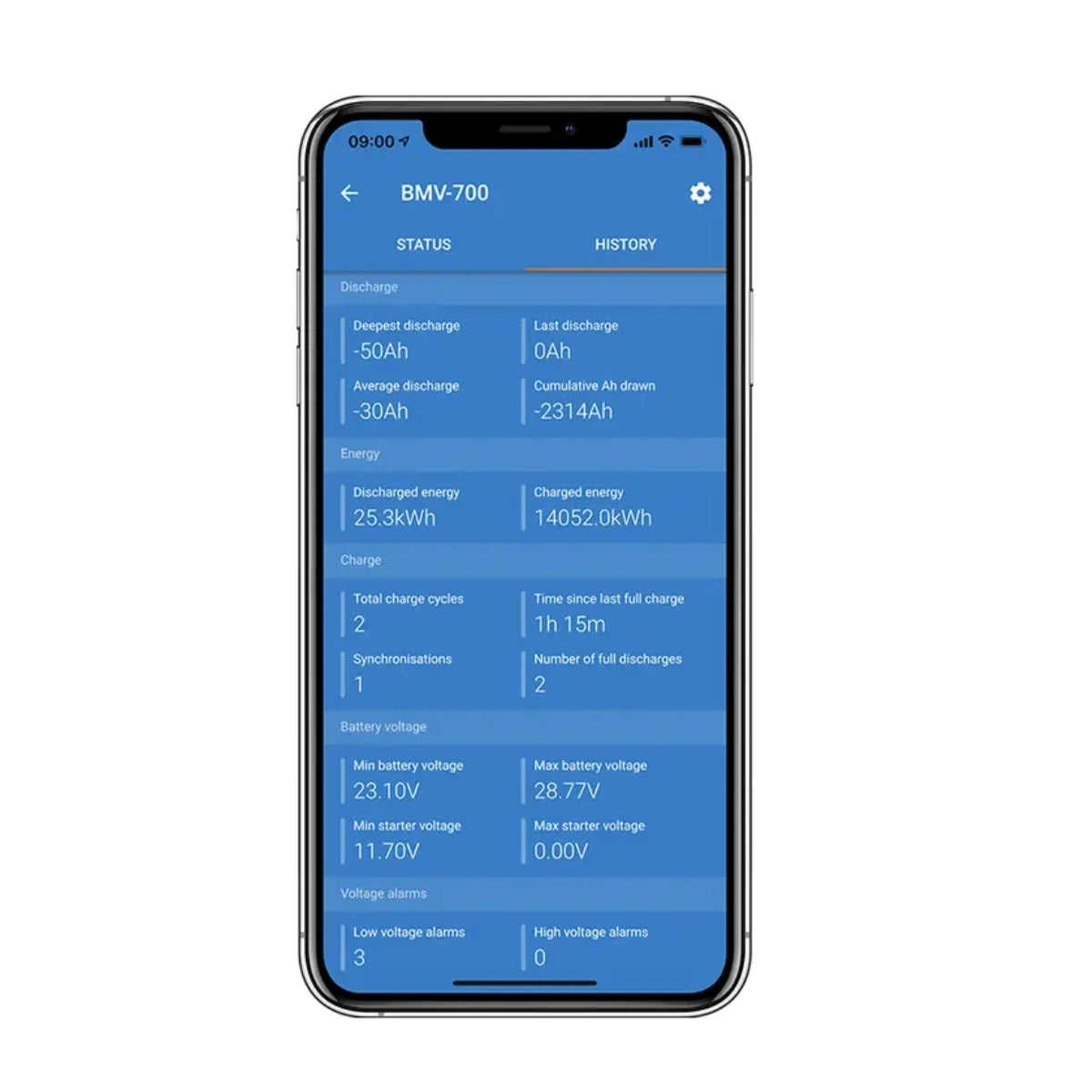

- Bluetooth monitoring via optional dongle and smartphone app
- Easy installation with included shunt and cables
- Programmable alarms and relay control for automation
- High measurement accuracy with low power consumption
Specifications:
-
Supply voltage range
6.5 – 95 VDC -
Current draw, back light off
< 4mA -
Input voltage range, auxiliary battery
6.5 – 95 VDC -
Battery capacity (Ah)
1 – 9999 Ah -
Operating temperature range
-40 to +50°C (–40 to 120°F) -
Measures voltage of second battery, or temperature, or midpoint
Yes -
Temperature measurement range
-20 to +50°C -
VE.Direct communication port
Yes -
Relay
60V / 1A normally open (function can be inverted)
RESOLUTION & ACCURACY (with a 500 A shunt)
- Current: ± 0.01A
- Voltage: ± 0.01V
- Amp hours: ± 0.1 Ah
- State of charge (0 – 100%): ± 0.1%
- Time to go: ± 1 min
- Temperature (0 - 50°C or 30 - 120°F): ± 1°C/°F
- Accuracy of current measurement: ± 0.4%
- Accuracy of voltage measurement: ± 0.3%
INSTALLATION & DIMENSIONS
- Installation: Flush mount
- Front: 63mm diameter
- Front bezel: 69 x 69 mm (2.7 x 2.7 inch)
- Shunt connection bolts: M10 (0.3937 inch)
- Body diameter and depth: 52 mm (2.0 inch) and 31 mm (1.2 inch)
- Protection category: IP55 (not intended for outdoor use)
STANDARDS
- Safety: EN 60335-1
- Emission / Immunity: EN 55014-1 / EN 55014-2
- Automotive: ECE R10-4 / EN 50498
ACCESSORIES
- Shunt (included): 500A / 50mV
- Cables (included): 10 meter 6 core UTP with RJ12 connectors, and cable with 1Amp slow blow fuse for ‘+’ connection
- Temperature sensor: Optional (ASS000100000)
