The Victron BMV-712 BLACK Smart provides advanced monitoring of your battery system, delivering real-time data on voltage, current, power, state of charge, and time-to-go. Designed for automotive, marine, and off-grid applications, it ensures optimal battery management and protects your energy investment.
Product Features:
- Shows battery voltage, current, power, state of charge, and time-to-go
- Tracks amp-hours consumed and power usage in watts
- Extra input for second battery voltage, temperature, or midpoint monitoring

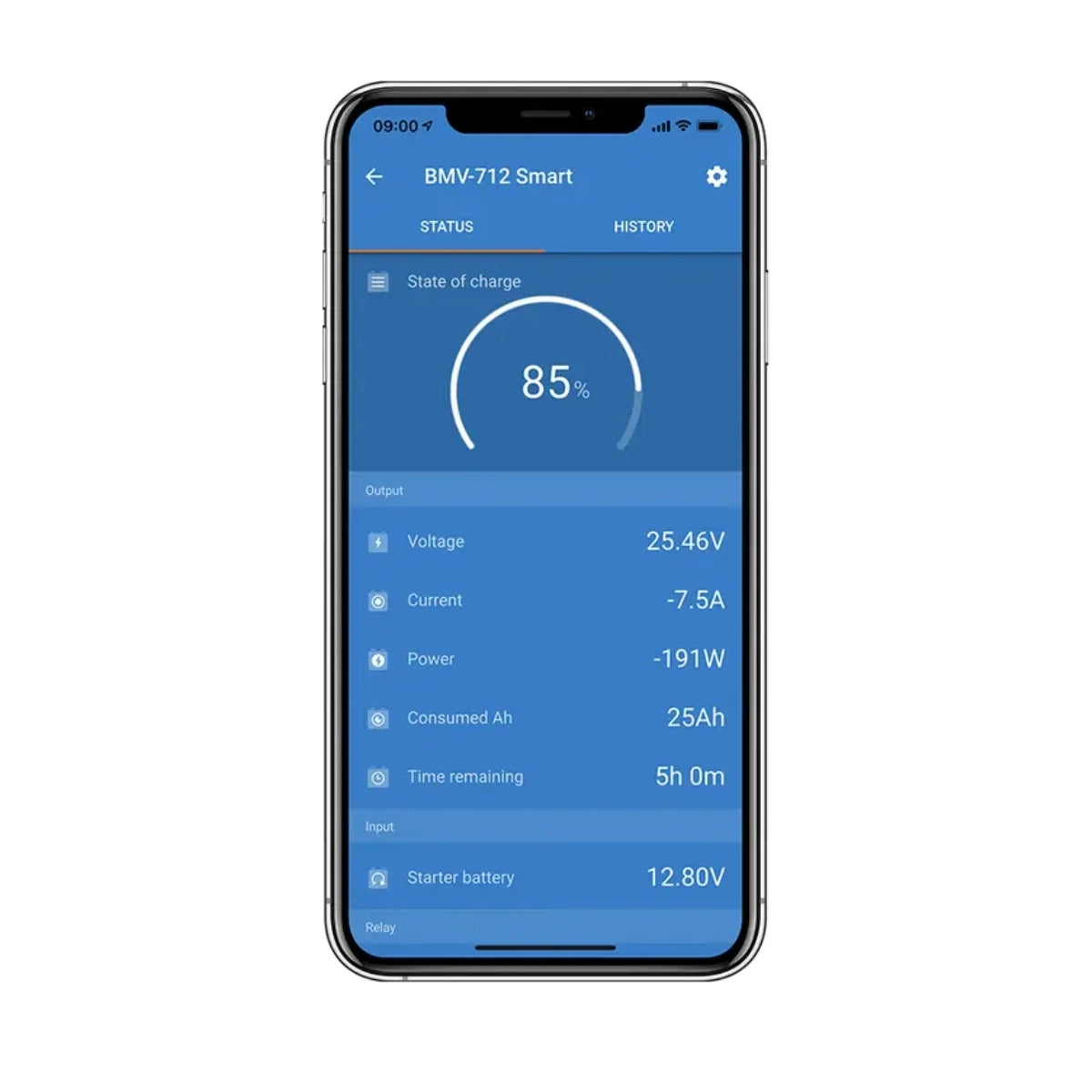

- Bluetooth monitoring via optional dongle and smartphone app
- Easy installation with included shunt and cables
- Programmable alarms and relay control for automation
- High measurement accuracy with low power consumption
Specifications:
- Supply voltage range: 6.5 – 70 VDC
- Current draw (backlight off): < 1 mA
- Input voltage range (auxiliary battery): 6.5 – 70 VDC
- Battery capacity range: 1 – 9999 Ah
- Operating temperature range: -40 to +50°C (–40 to 120°F)
- Measures voltage of second battery, temperature, or midpoint: Yes
- Temperature measurement range: -20 to +50°C
- VE.Direct communication port: Yes

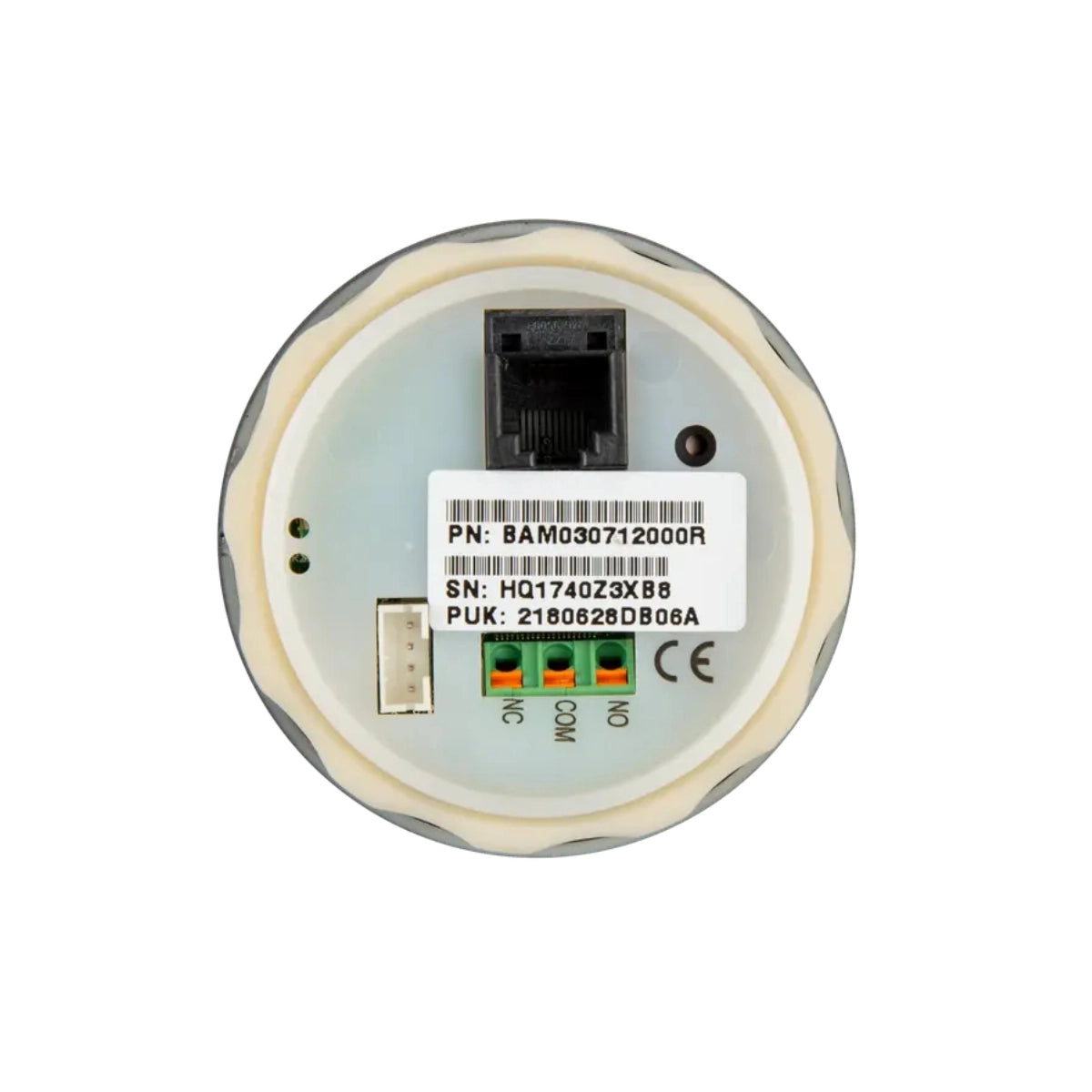

- Relay: Bistable, 60V / 1A normally open (function can be inverted)
Resolution & Accuracy (with 500A shunt):
- Current: ± 0.01 A
- Voltage: ± 0.01 V
- Amp hours: ± 0.1 Ah
- State of charge (0 – 100%): ± 0.1%
- Time to go: ± 1 min
- Temperature (0 – 50°C or 30 – 120°F): ± 1°C/°F
- Accuracy of current measurement: ± 0.4%
- Accuracy of voltage measurement: ± 0.3%
Installation & Dimensions:
- Installation type: Flush mount
- Front diameter: 63 mm
- Front bezel size: 69 x 69 mm (2.7 x 2.7 inch)
- Shunt connection bolts: M10 (0.3937 inch)
- Body diameter and depth: 52 mm × 31 mm (2.0 × 1.2 inch)
- Protection category: IP55 (not intended for outdoor use)
Standards:
- Safety: EN 60335-1
- Emission / Immunity: EN 55014-1 / EN 55014-2
- Automotive: ECE R10-4 / EN 50498
Accessories Included:
- Shunt: 500A / 50mV
- Cables: 10m 6-core UTP with RJ12 connectors and 1A slow blow fused cable
- Temperature sensor: Optional (ASS000100000)
Stored Trends:
- Stores battery voltage, current, state of charge %, and auxiliary input data (battery temperature, midpoint deviation, or starter battery voltage)
- Trends data stored for multiple days
Color Control Compatibility:
- Compatible with Victron’s Color Control system for full system monitoring
- Communicates via CAN bus (NMEA 2000), Ethernet, and USB
