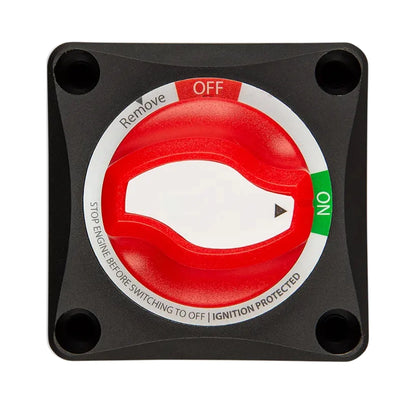

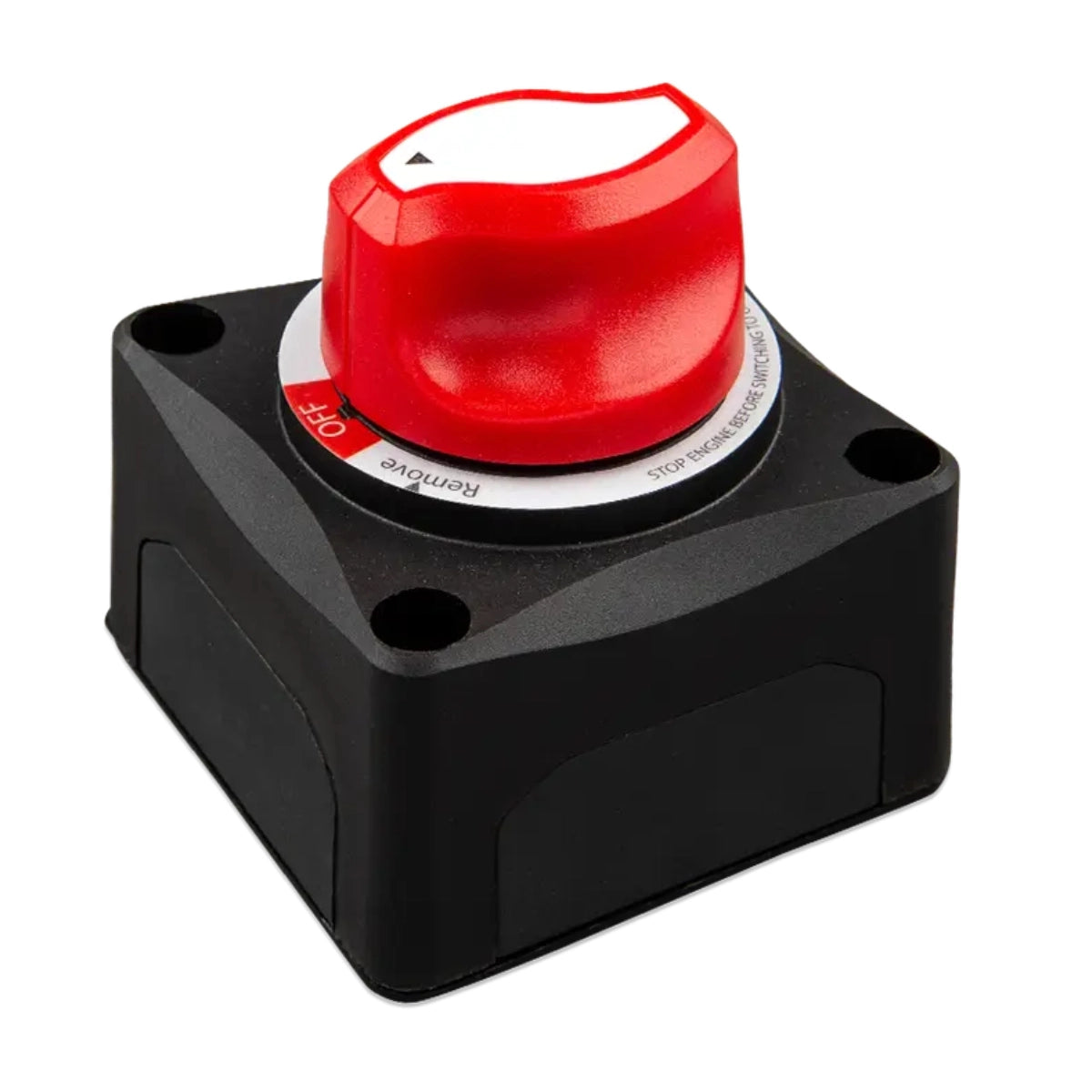

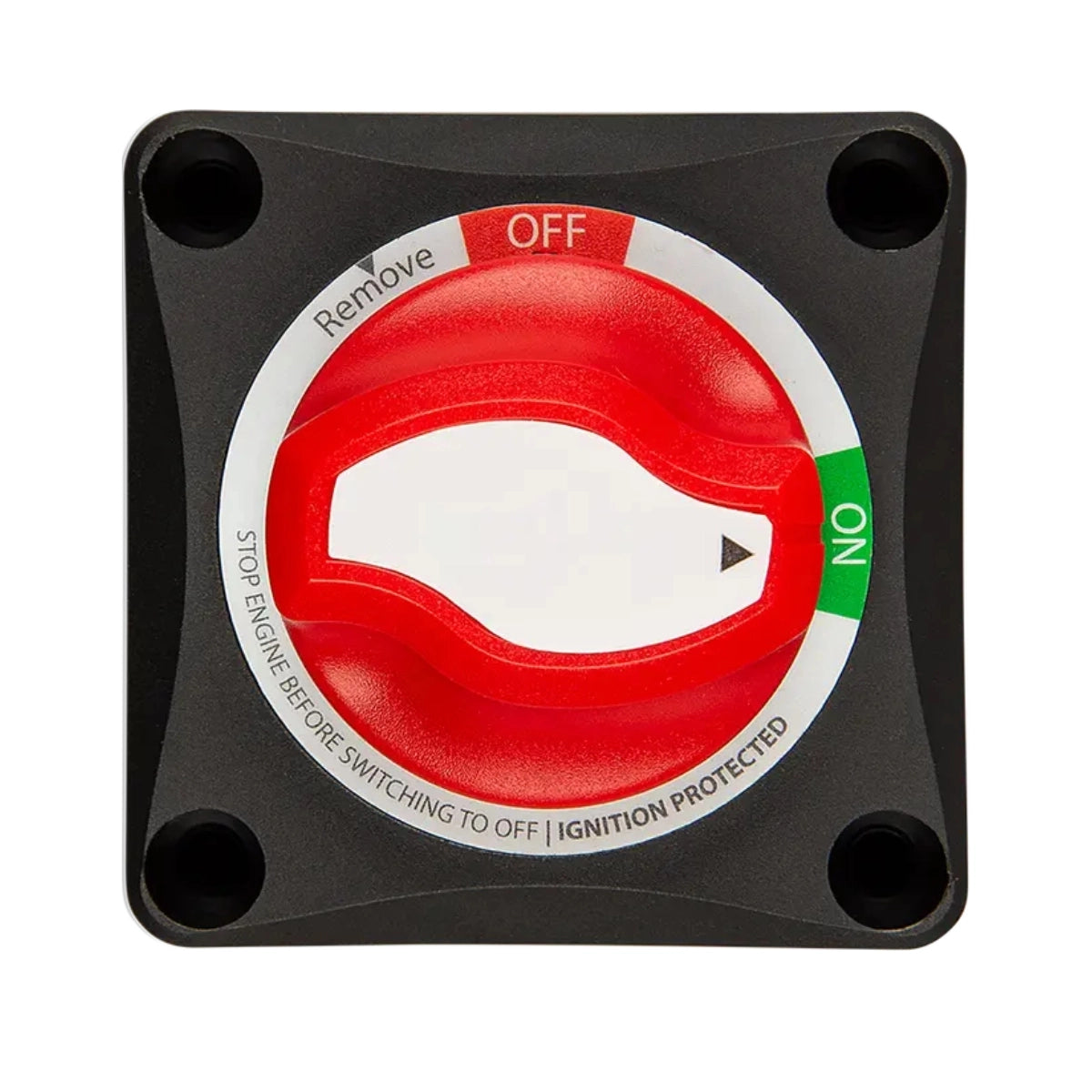

The Battery Switch ON/OFF 275A is suitable for battery systems up to 48V. It has a unique ergonomic and aesthetic knob design. The knob is removable for isolation or safety purposes. The Battery Switch can be either surface or panel mounted, providing flexibility during install. The Battery Switch meets the ISO8846 Ignition Protection standard and is suitable for use in an engine room.
Product Features:
- Supports battery systems up to 48V with a 275A continuous current rating
- Ergonomic knob design for easy operation
- Used to isolate batteries from DC loads or charge sources
- Allows emergency parallel connection between house and starter batteries
- Ideal for maintenance, battery preservation, or emergency backup
- Can be surface or panel mounted with 4 removable side panels for cable access
- Includes 16 customizable label stickers
- Removable knob for added safety and isolation
- ISO8846 Ignition Protection certified for use in engine rooms
Specifications:
- Max. continuous current : 275 A
- One minute rating : 455 A
- Cranking rating : 1250 A
- Maximum operating voltage : 60 V
- Terminal material : Tin-plated copper
- Hex nut material : Tin-plated copper
- Terminal diameter : M10 (3/8 inch / 9.53 mm)
- Recommended torque : 70 lbf·inch / 8 N·m
- Base material : Glass fiber reinforced nylon
- Weight : 0.4 lb / 0.2 kg
-
Dimensions (l x w x h):
- 2.7 x 3.0 x 2.7 inch
- 69.5 x 76.3 x 69.5 mm
- 2.7 x 3.0 x 2.7 inch
- Mounting : Surface or rear panel mount
- Ignition protected: ISO8846 / SAE J1171
